How To Wire A Transformer​

Understanding Transformer Wiring Basics

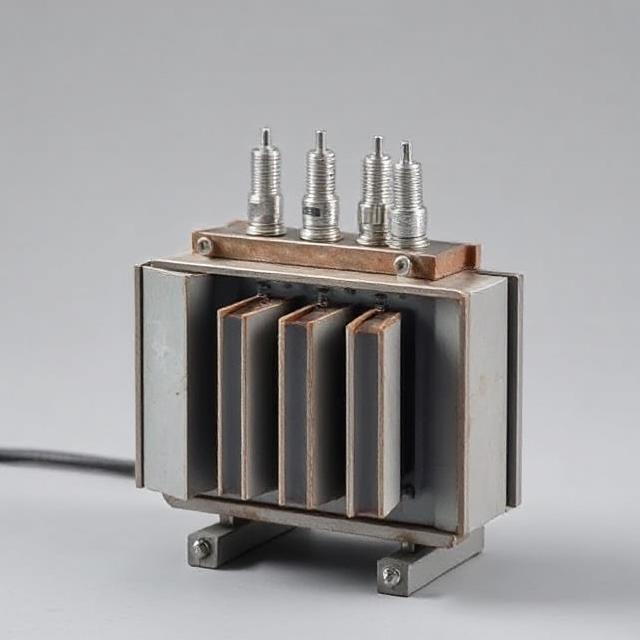

What is a Transformer and How Does It Work?

A transformer transfers electrical energy from one circuit to another through electromagnetic induction. Its purpose? To step up or step down voltage based on system needs. It has two main types of windings: primary and secondary. The primary receives voltage input. The secondary sends voltage output.

In a step-up transformer, voltage increases from primary to secondary. For step-down transformers, voltage decreases. This helps adapt electricity for various uses, like power lines or home devices.

Inside, a transformer contains windings (coils), an iron or ferrite core, and insulation. These parts regulate energy transfer, ensuring safe and efficient operation.

Key Terms in Transformer Wiring

• Primary Winding: Input side of the transformer.

• Secondary Winding: Output side.

• Voltage Rating: Maximum voltage for safe operation.

• Current Rating: Maximum current capacity.

• Line Side: Connected to power source.

• Load Side: Connected to powered device.

Understanding these terms helps prevent errors when installing transformers, whether it’s a Dry-type Distribution Transformer, Oil-immersed Distribution Transformer, or Coating Coil Power Transformer.

Series vs. Parallel Wiring: What's the Difference?

• Series Wiring: Windings connect end to end. Voltage adds. Current stays same.

• Parallel Wiring: Windings connect side by side. Current adds. Voltage remains constant.

Example: Two 120V windings:

• Series: 120V + 120V = 240V

• Parallel: 120V, higher current

When to Use Series or Parallel Connections?

Use series for higher voltage loads. Use parallel for devices needing more current. Also consider impedance matching and winding compatibility.

Table: Connection Decision Guide

How to Read a Transformer Wiring Diagram

Common Symbols Used in Transformer Diagrams

Symbols explain configuration. Some basics:

• Transformer: Two coils with lines between

• Ground: Triangular symbol

• Wire: Straight lines

• Connection Points: Dots or terminals

These help identify if it's a Coating Coil Power Transformer, Dry-type Distribution Transformer, or something else.

Understanding Primary and Secondary Windings in Diagrams

Wiring diagrams label terminals like H1, H2 (primary) and X1, X2 (secondary). Multi-tap windings offer voltage flexibility, shown by tap labels.

How Series and Parallel Connections are Depicted

• Series: Windings drawn end to end

• Parallel: Windings share input/output terminals

Transformer Diagram Example and Explanation

Example: A step-down transformer from 240V to 120V.

• Primary: H1 and H2 connect to 240V

• Secondary: X1 and X2 connect to 120V load

Highlight terminal positions, ground points, and tap options.

Tools and Safety Precautions for Transformer Wiring

Tools You’ll Need

• Screwdrivers

• Insulated pliers

• Wire strippers

• Multimeter

• Electrical tape

• PPE (gloves, goggles)

Pre-Wiring Checklist

• Confirm transformer type and specs

• Identify primary and secondary terminals

• Check power supply voltage

• Ensure correct load connection

Important Transformer Wiring Safety Tips

• Cut power before touching wires

• Verify voltage levels

• Insulate exposed terminals

• Ground transformer properly

Post-Wiring Safety Checks

• Use a multimeter to test voltage

• Check for continuity

• Ensure no shorts between windings or to ground

Step-by-Step Guide: How to Wire a Transformer

Step 1: Identify All Transformer Terminals

Common terminal labels:

• H1, H2, H3: Primary side

• X1, X2, X3: Secondary side

• S1, S2: For shielding or special windings

Match diagram to physical labels.

Step 2: How to Wire a Transformer in Series

• Connect end of first winding to start of second

• Supply input to remaining free terminal

• Output from opposite end

Useful for Dry-type Distribution Transformers with dual windings.

Step 3: How to Wire a Transformer in Parallel

• Join matching terminals: H1 to H1, H2 to H2

• Output terminals: X1 to X1, X2 to X2

Watch polarity! Mismatch causes short circuit.

Step 4: Grounding the Transformer

Grounding protects from faults.

• Bond neutral to ground in secondary

• Ground enclosure

• Use grounding rod if needed

More critical in Oil-immersed Distribution Transformers used outdoors.

Step 5: Testing and Verifying Connections

• Test primary input voltage

• Test secondary output voltage

• Use continuity test to check windings

• Power on briefly to ensure proper operation

Common Transformer Wiring Configurations

Overview of Typical Transformer Configurations

What is a Delta Connection?

• Triangle shape circuit

• No neutral

• Used for high load devices

• Efficient for motors and heavy machinery

What is a Star (Wye) Connection?

• Each winding connects to a common neutral

• Safer grounding

• Ideal for Coating Coil Power Transformers in sensitive systems

Choosing the Right Transformer Wiring Configuration

Consider:

• Load type: balanced vs. unbalanced

• System grounding

• Voltage and current ratings

• Fault tolerance

Troubleshooting Transformer Wiring Issues

Common Transformer Wiring Mistakes

• Reversed polarity

• Wrong terminal use

• Skipped grounding

Mismatched Voltage or Current

If secondary voltage doesn’t match expected output:

• Check tap settings

• Confirm series vs. parallel configuration

How to Handle Short Circuits and Open Circuits

• Use a multimeter

• Zero resistance: short circuit

• Infinite resistance: open circuit

What Causes Overheating or Buzzing?

• Overloaded windings

• Loose terminal connections

• Incomplete grounding

Quick Fixes and Long-Term Solutions

• Tighten all screws and terminals

• Recalculate load requirements

• Replace damaged insulation or wires

FAQs About How to Wire a Transformer

How Do You Hook Up a Transformer?

• Identify terminals

• Choose series or parallel

• Connect primary to power

• Connect secondary to load

• Ground and test

What Does “XFMR” Mean?

It’s short for transformer in electrical schematics.

What Does a Transformer Look Like?

• Box or cylinder shape

• Labeled terminals

• Steel or plastic casing

Which Side is the Primary of a Transformer?

Usually labeled as H1, H2. Also closest to power source.

How Do You Wire a 240V/120V Transformer to a Panelboard?

• Use center-tapped transformer

• 240V across H1 and H2

• 120V between X1 and center tap (X2)

How Do You Wire a Step-Down Transformer?

• Primary to high-voltage input

• Secondary to low-voltage load

• Often used in Dry-type Distribution Transformers

How Do You Wire a Step-Up Transformer?

• Primary to low voltage

• Secondary to higher voltage device

• Ensure proper load protection

Special Section: How to Wire a Doorbell Transformer

Tools and Materials You’ll Need

• New transformer (16-24V)

• Wire nuts, pliers, screwdriver

• Mounting screws

Safety Warnings for Doorbell Transformer Installation

• Shut off circuit breaker

• Use insulated tools

• Verify output voltage

Step-by-Step Instructions

Step 1: Locate and Remove the Old Transformer

Check near electrical panel or HVAC unit. Remove wiring carefully.

Step 2: Install and Secure the New One

Mount transformer to box or panel. Follow local electrical codes.

Step 3: Wire the Doorbell Chime

Connect transformer terminals to doorbell wires. Match polarity.

Step 4: Turn Power Back On and Test

Check for voltage. Test chime push button.

Conclusion

Wiring a transformer takes precision. Always match windings, respect voltage limits, and ensure grounding. Whether you’re dealing with a Dry-type Distribution Transformer, Oil-immersed Distribution Transformer, or Dry-type Distribution Transformer, the steps stay consistent. Focus on safety, use correct tools, and verify every connection. Still unsure? Call a licensed electrician. Better safe than sorry.
