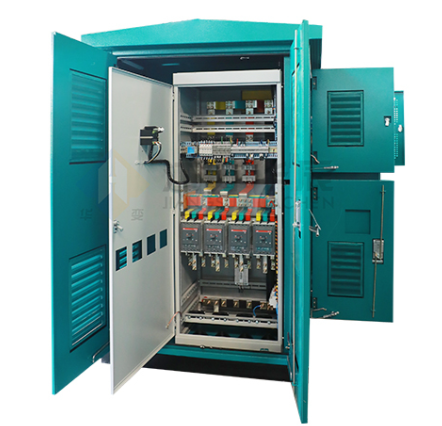

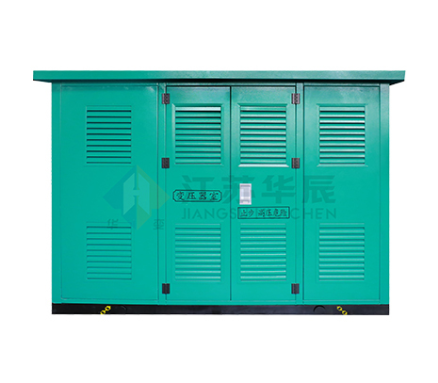

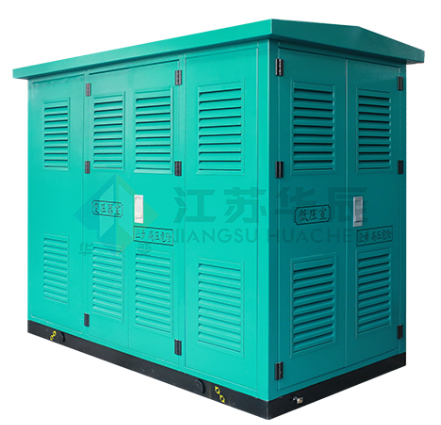

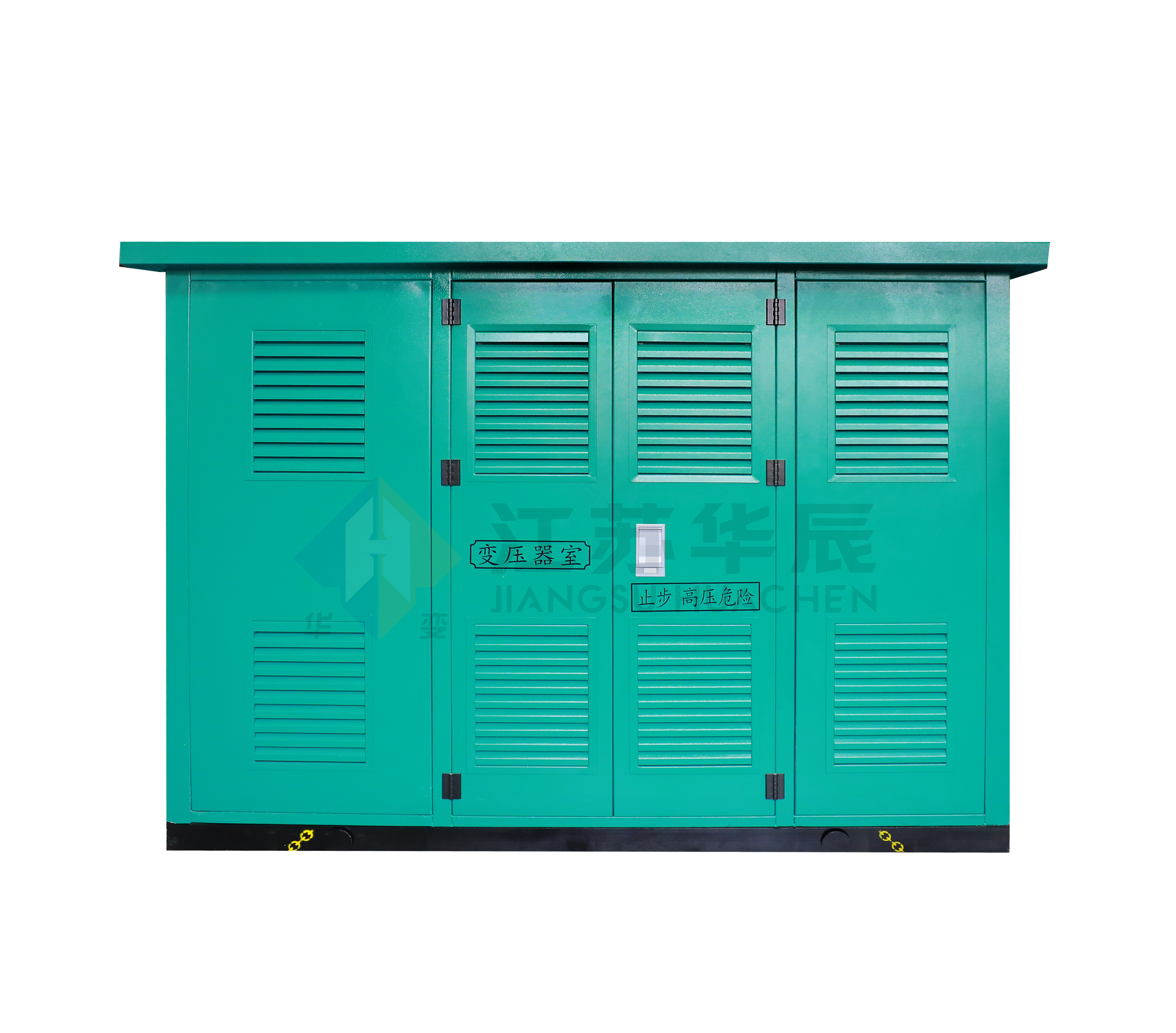

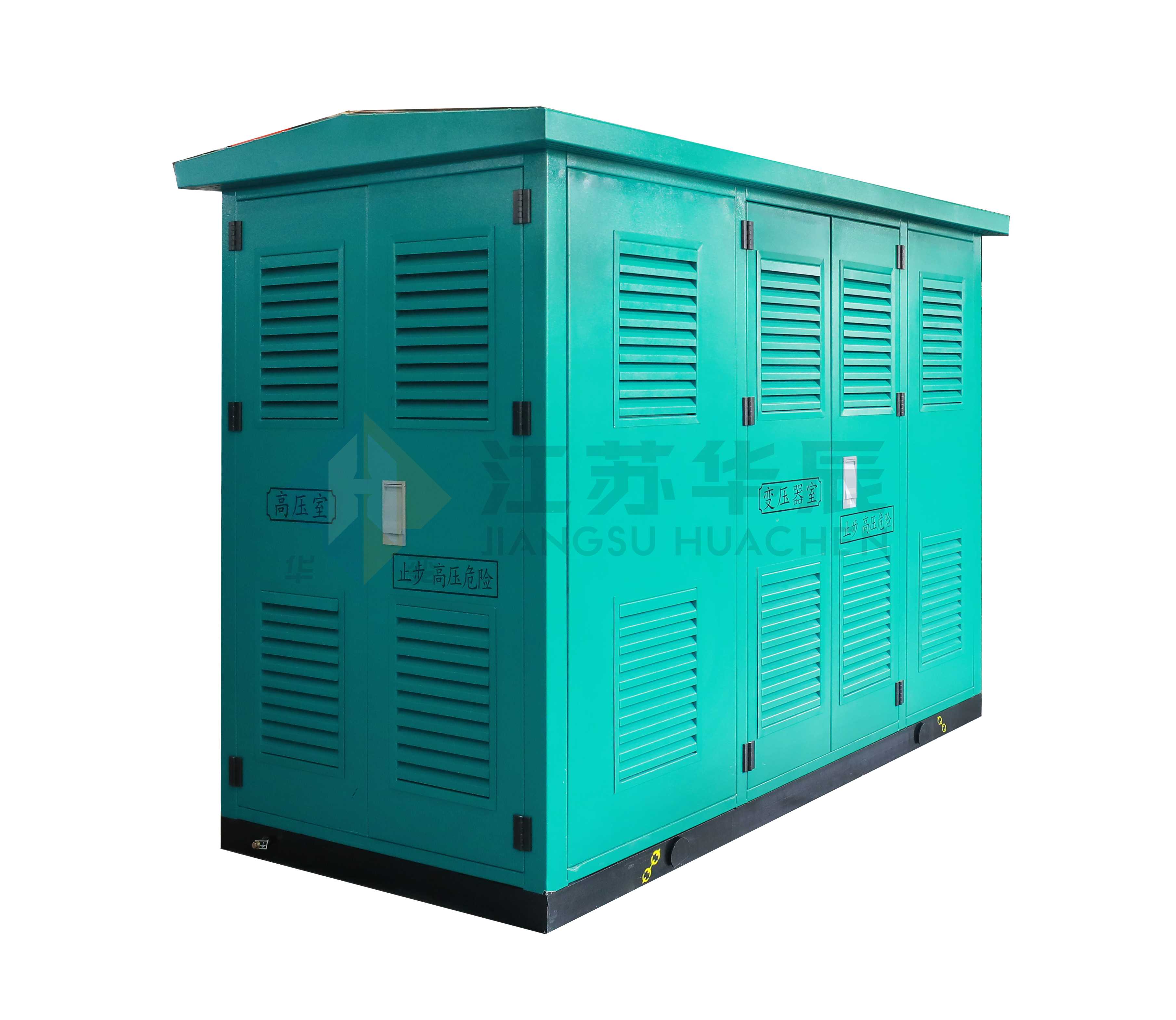

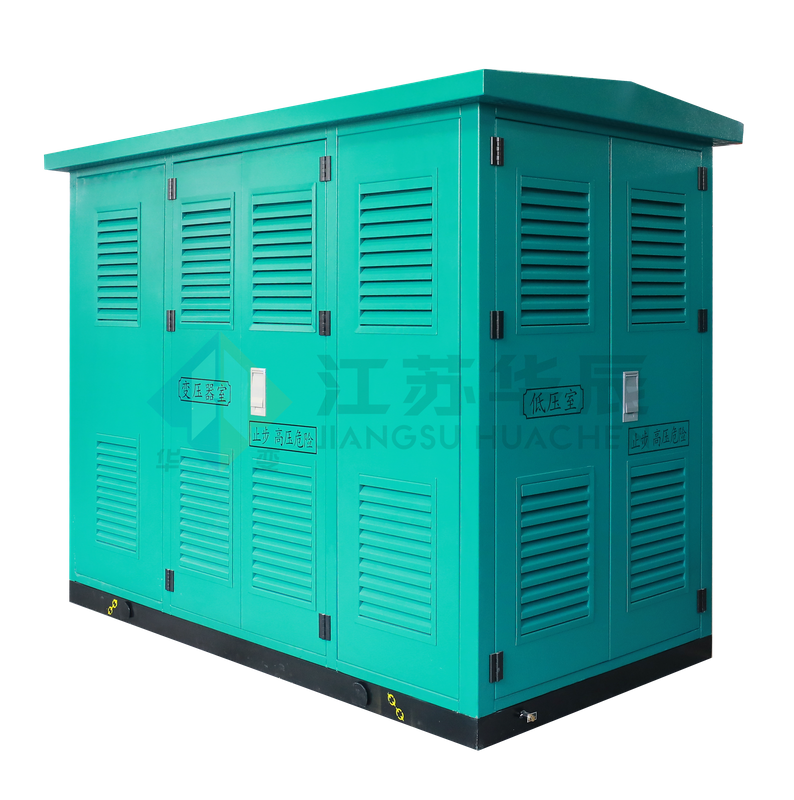

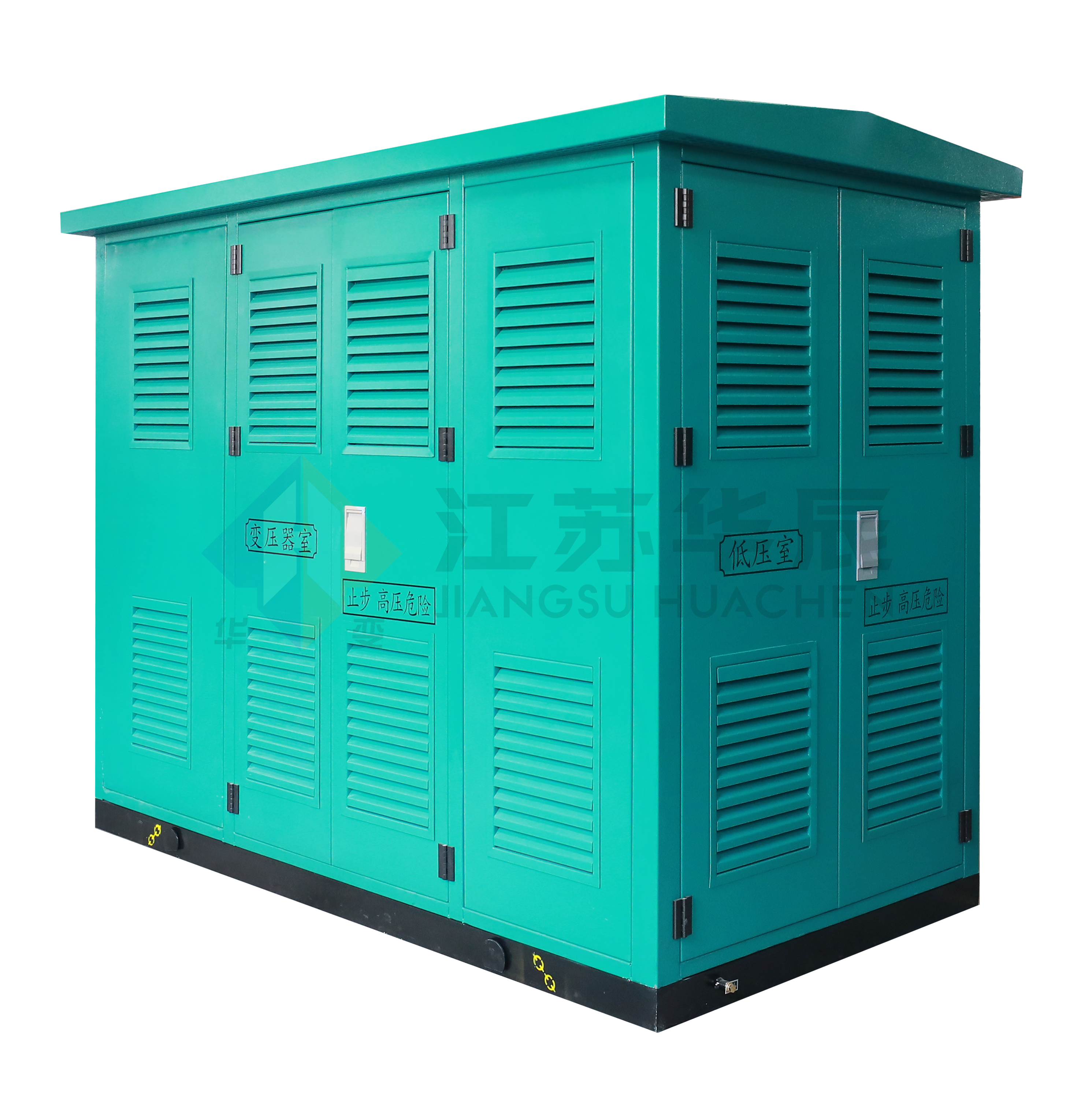

The 10kV State Grid Standard Compact Prefabricated Substation, also known as a compact box-type substation, is suitable for power distribution projects where installation space is limited but reliable high-voltage protection and complete functional configuration are required.
The product adopts a compact structure with a width of only 1350mm, making it suitable for installation in urban road green belts without affecting the normal passage of vehicles and pedestrians. Because the high-voltage section uses a ring main unit with comprehensive protection functions, the product can also be used in residential communities, docks, stations, highways, elevated bridges and temporary construction sites.
The substation adopts a compact multi-compartment grid layout. It can be configured as terminal-type or ring-network-type power supply. From left to right, the standard layout includes the high-voltage room, transformer room and low-voltage room. According to the requirements of intelligent substations, it can also be equipped with a metering room, data acquisition room and DTU room, forming a compact substation with up to six functional compartments.
This product integrates the advantages of ZGS combined transformers and European-style high-voltage/low-voltage prefabricated substations. It combines compact size with complete high-voltage protection functions, making it suitable for urban distribution scenarios with limited installation space.
The compact substation has the structural advantages of an American-style box transformer, including compact layout and small overall dimensions. It is suitable for installation in areas where space is limited.
The product also has the advantage of a European-style box transformer, offering more comprehensive high-voltage protection functions. It can support both terminal-type and ring-network-type power supply schemes.
With a width of only 1350mm, the product can be installed in green belts along urban roads without affecting the normal movement of vehicles and pedestrians.

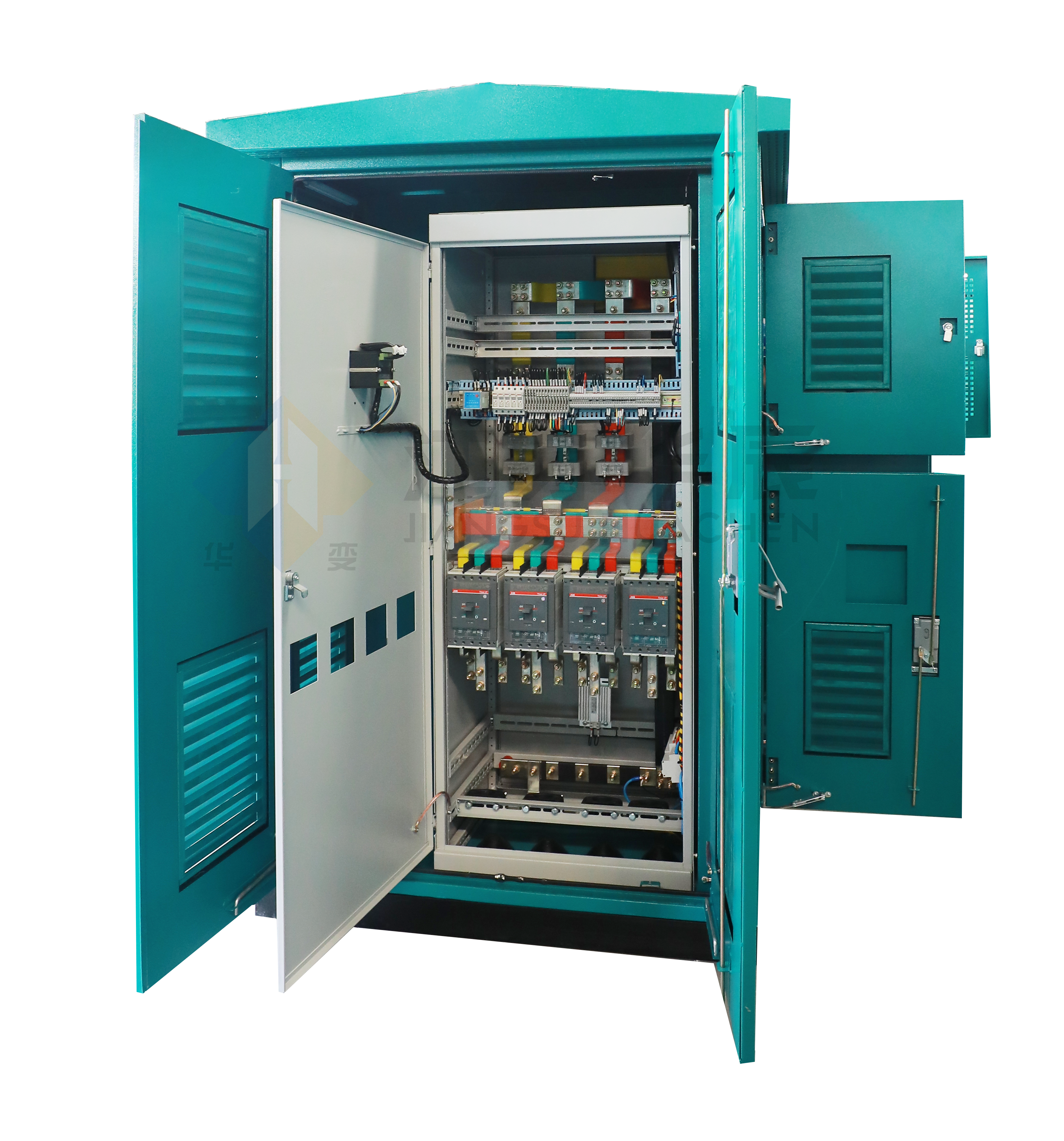

The high-voltage room, transformer room and low-voltage room are arranged from left to right. According to intelligent substation requirements, metering room, data acquisition room and DTU room can also be added.
The transformer is placed inside the fully enclosed cabinet, which helps reduce noise and radiation. The compact internal arrangement also supports a more organized substation structure.
The complete substation has a relatively high protection grade and can be used in places with salt fog or heavy dust conditions.
The compact design helps save installation space. The occupied area is about one third of that of a European-style box transformer, helping reduce civil construction requirements.
Standard No. | Standard Description |
|---|---|
GB/T 17467 | High-Voltage/Low-Voltage Prefabricated Substation |
GB/T 6451 | Technical Parameters and Requirements for Oil-Immersed Power Transformers |
10kV High/Low Voltage Prefabricated Substation Standardized Design Scheme, 2018 Edition | Standardized Design Scheme for 10kV High/Low Voltage Prefabricated Substations |
Structure Item | Description |
|---|---|
Layout form | multi-compartment grid layout |
Power supply mode | Terminal type or ring network type |
Standard functional rooms | High-voltage room, transformer room, low-voltage room |
Optional functional rooms | Metering room, data acquisition room, DTU room |
Number of functional rooms | Up to 6 functional compartments |
Structure feature | Compact structure with complete functions |
Item | Description |
|---|---|
Recommended capacity range | 630kVA and below |
Capacity above 630kVA | Can be adjusted according to actual project requirements |
Standard dimensions for 630kVA unit | 2650 × 1350 × 2100mm |
Dimension note | Products above 630kVA may not meet the standard size and should be adjusted based on actual conditions |
The product width is only 1350mm, making it suitable for installation in green belts along urban roads without affecting normal vehicle and pedestrian traffic.
Because the high-voltage side uses a ring main unit with comprehensive protection functions, the compact substation can also be used in residential communities, docks, stations, highways, elevated bridges and temporary construction sites.
The 10kV State Grid Standard Compact Prefabricated Substation is suitable for urban power distribution projects that require compact structure, complete high-voltage protection and reliable operation within limited installation space.
For urban distribution networks, residential communities, traffic infrastructure and temporary construction power applications, Huachen provides product selection and configuration support according to project capacity, power supply mode, functional room requirements, installation location and protection requirements.
Huachen provides support for product selection, manufacturing, testing, installation and after-sales service. For compact prefabricated substation projects, the technical team can assist with product configuration, project communication, production coordination, testing support, installation guidance and delivery support according to project requirements.
With manufacturing capability, testing capability and project service experience, Huachen supports customers in applying compact prefabricated substations to urban power distribution, infrastructure power supply and temporary power distribution projects.
The 10kV State Grid Standard Compact Prefabricated Substation is suitable for:
Urban road green belts
Residential communities
Docks
Stations
Highways
Elevated bridges
Temporary construction sites
Urban power distribution projects with limited space
Terminal-type and ring-network-type power supply systems
It is a standardized compact power distribution device designed for urban areas with limited space and medium load demand. It provides reliable power distribution through compact structure and functional integration.
Its main advantages include compact structure, small size, small footprint, complete high-voltage protection functions and suitability for space-limited installation environments.
The product width is only 1350mm, making it suitable for installation in green belts along urban roads.
The product supports terminal-type and ring-network-type power supply modes.
The standard structure includes a high-voltage room, transformer room and low-voltage room. According to intelligent substation needs, a metering room, data acquisition room and DTU room can also be added.
The recommended capacity range is 630kVA and below. Products above 630kVA can be adjusted according to actual project conditions.
The standard dimensions for a 630kVA unit are 2650 × 1350 × 2100mm.
The product follows GB/T 17467, GB/T 6451 and the 2018 edition of the 10kV high/low voltage prefabricated substation standardized design scheme.
