Overview and Features of Pad Mounted Transformer

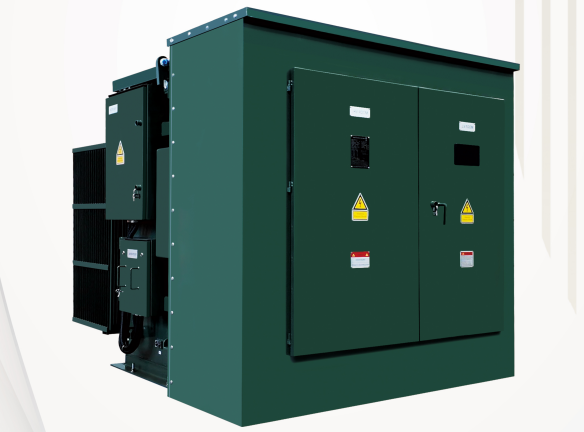

Our pad mounted transformers adopt integrated cabinet tank design, integrating high-voltage switching, transformer unit and low-voltage distribution modules. With wide voltage & capacity range, full protection functions and IP54 outdoor enclosure, they deliver compact, reliable power supply for photovoltaic, wind energy, residential and commercial distribution projects.
Key Features
Rated Capacity: 50–5000 kVA
HV Voltage: 12–35 kV; LV Voltage: 0.4–0.69 kV
Rated Frequency: 50/60 Hz
IP54 protection grade for outdoor harsh environment
All-in-one integrated components with complete protection system
Sealed integrated tank, multi-mode power supply support
Compact layout, flexible customized power solutions
Factory direct supply, IEC & ANSI compliant, OEM project customization
Core Functional Features of Pad Mounted Transformer
Weatherproof Outdoor Cabinet
Engineered with a heavy-duty IP54-rated enclosure and an advanced anti-corrosion spray coating, this Pad Mounted Transformer delivers exceptional resistance against rain, dust, and severe thermal fluctuations. Its rugged, weather-proof construction guarantees long-term operational reliability and virtually maintenance-free performance in extreme outdoor environments.
Durable Integrated Structure
Built with a high-efficiency, low-loss magnetic core and premium high-thermal-class insulation, the Pad Mounted Transformer delivers superior energy efficiency and a significantly extended service life under continuous heavy loads. By seamlessly integrating circuit breakers, load switches, and instrument transformers into a single, compact enclosure, it streamlines voltage transformation and power distribution while dramatically simplifying field installation and lowering total operating costs.
Full-Function Integrated Protection
Engineered with built-in load break switches, current-limiting fuses, and heavy-duty surge arresters, this unit delivers robust mitigation against overloads and short-circuit faults. The entire safety architecture is strictly compliant with global power distribution standards (such as IEC and IEEE), ensuring failsafe operation and maximum grid reliability.
Flexible Customization Service
Engineered for maximum versatility, the Pad Mounted Transformer offers extensive customization across cabinet dimensions, colorways, voltage ratios, capacities, and advanced smart modules (including auxiliary control and remote monitoring) to meet the precise requirements of solar, wind, residential, and municipal grid projects.
Its standardized, space-saving footprint enables rapid, low-impact installation in constrained environments without compromising performance. Meanwhile, a fully modular architecture allows for flexible site layout and effortless future capacity expansions.
Welcome to Contact Us
Connect with Jiangsu Huachen for expert guidance on Pad Mounted Transformer solutions. Our team offers comprehensive support including product selection, technical consultation, and reliable after-sales service to ensure your project success.
Mob: +86-15152458816
E-mail: marketing_huachenjs@hcbyq.com
Key Application Scenarios of Pad Mounted Transformer
Our integrated pad mounted transformers support multi-mode power supply, perfectly matching new energy generation and urban underground distribution networks. The all-in-one structure simplifies on-site construction and shortens project installation cycle.
Urban and Rural Distribution Networks

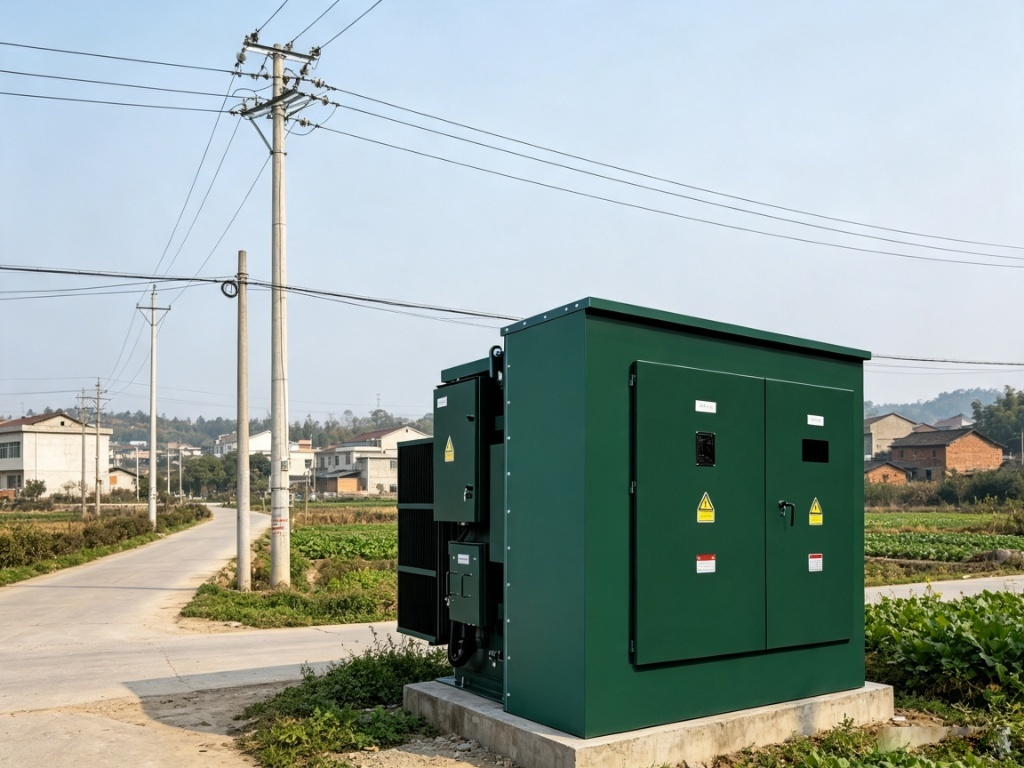

Urban and rural distribution networks demand durable and compact transformers that can withstand varied environmental conditions while delivering consistent power. Pad Mounted Transformers from Jiangsu Huachen are designed to meet these needs by integrating essential electrical components within a prefabricated enclosure, simplifying installation in limited spaces. Their compliance with national grid standards ensures compatibility and reliability, reducing downtime and maintenance efforts. These transformers effectively support the complex power distribution requirements in both densely populated urban areas and remote rural locations, enhancing grid stability and operational efficiency.
Renewable Energy Integration

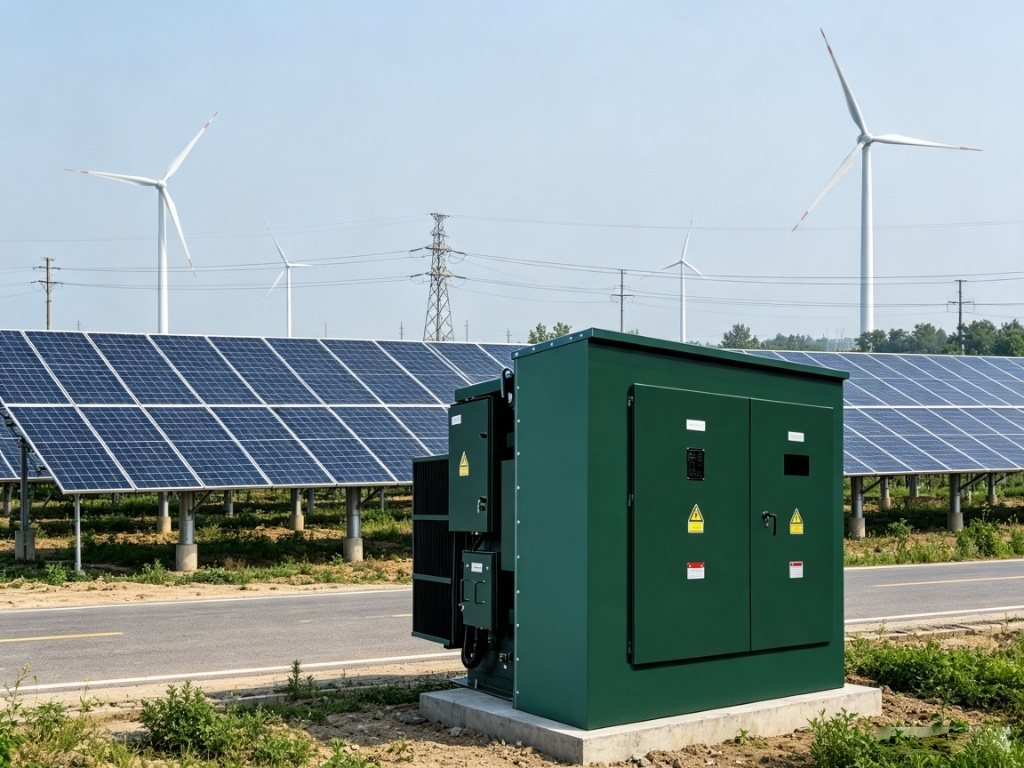

The integration of renewable energy sources into power grids presents unique challenges such as variable output and grid compatibility. Jiangsu Huachen’s Renewable Energy Pad Mounted Transformers are engineered to handle these fluctuations and provide stable voltage transformation tailored for renewable installations. Their robust design supports solar farms and wind power projects by facilitating efficient power distribution and minimizing energy losses. These transformers contribute to the seamless incorporation of clean energy into existing networks, helping procurement teams secure equipment that supports sustainability goals without compromising reliability.
Industrial and Commercial Power Supply
Industrial and commercial power supply systems require transformers that deliver high performance, safety, and ease of maintenance. The Pad Mounted Transformers offered by Jiangsu Huachen are optimized for such environments, providing reliable voltage regulation and protection within a compact footprint. Their prefabricated design allows for quick deployment and integration with existing switchgear and energy storage systems. By choosing these transformers, project managers and engineers can ensure uninterrupted power supply, reduce operational costs, and improve energy efficiency in industrial plants, commercial complexes, and business facilities.
Certificates
We always focus on customers, pay attention to their needs, provide high-quality products and excellent services to meet their expectations.
Core Competitive Advantages of Pad Mounted Transformer
Comprehensive Product Range
Jiangsu Huachen offers a diverse range of Pad Mounted Transformers including renewable energy models, oil-immersed, and dry-type variants. This comprehensive product lineup caters to various industrial and commercial power distribution needs, ensuring customers find tailored solutions that fit specific project requirements.
Integrated Power Distribution Solutions
The Pad Mounted Transformer solutions integrate seamlessly with high and low voltage switchgear and energy storage cabinets, providing a complete power distribution system. This integration reduces installation complexity and enhances operational efficiency for industrial buyers and project managers.
Compliance with Grid Standards
All Pad Mounted Transformers from Jiangsu Huachen comply with national grid standards, including support for 10kV and above voltage levels. This compliance guarantees reliability and safety, helping clients meet regulatory requirements and ensuring stable power distribution.
Customer-Focused Service Support
Jiangsu Huachen prioritizes customer satisfaction by offering dedicated technical support and customized service options. Their responsive approach ensures project timelines are met and client-specific needs are addressed promptly, enhancing overall procurement confidence.
