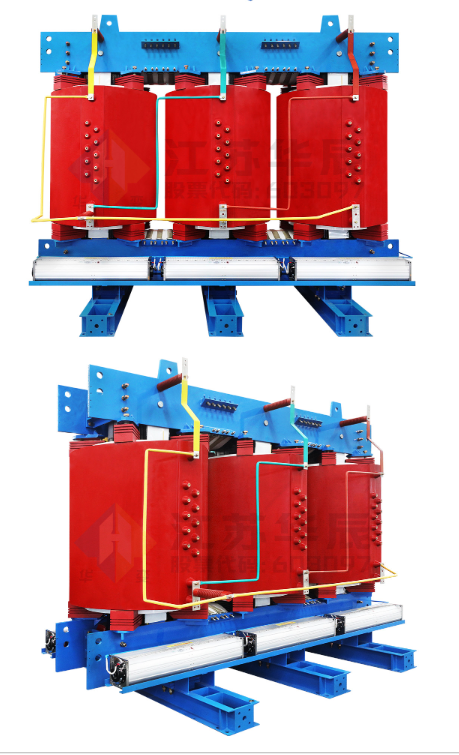

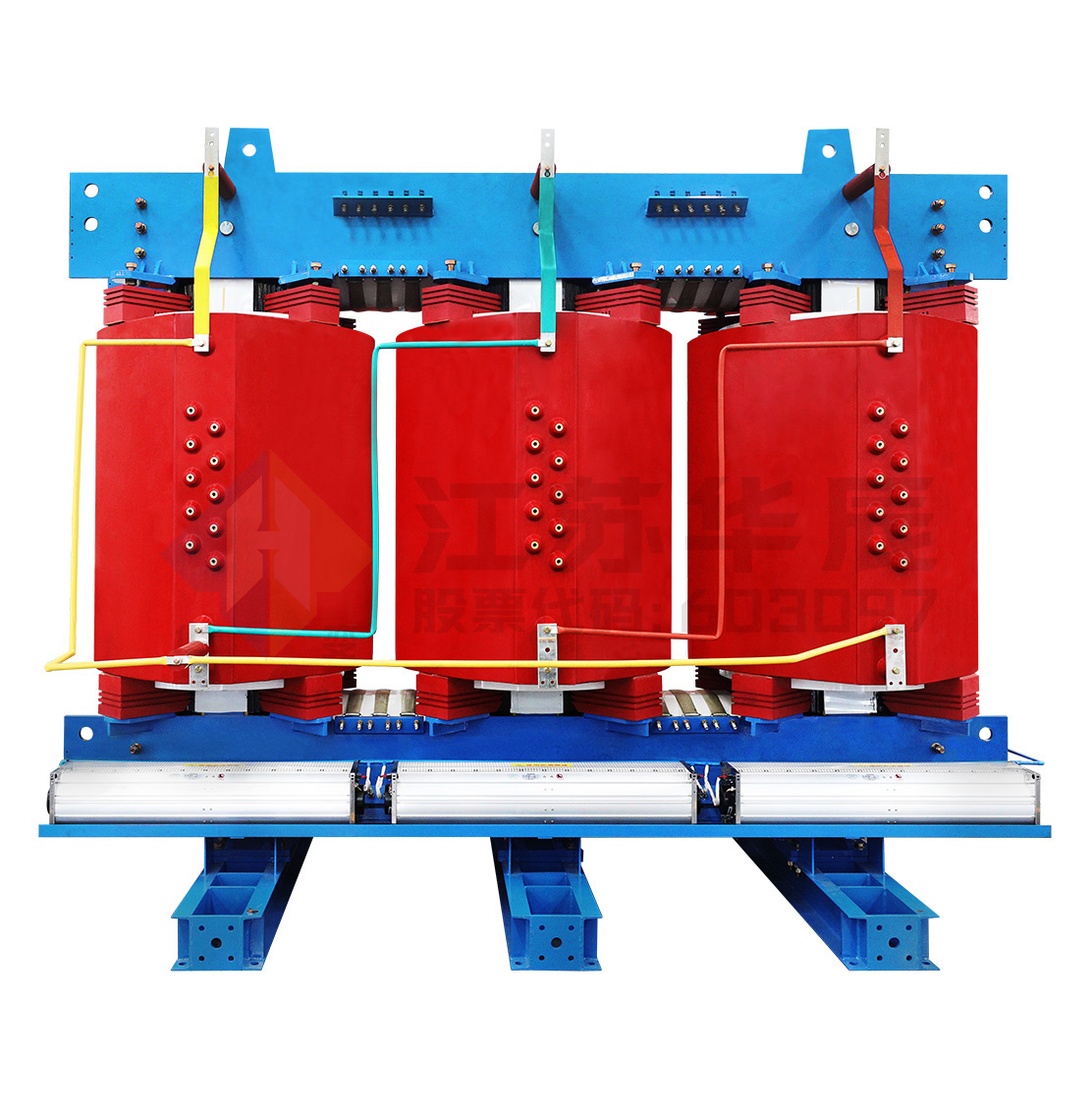

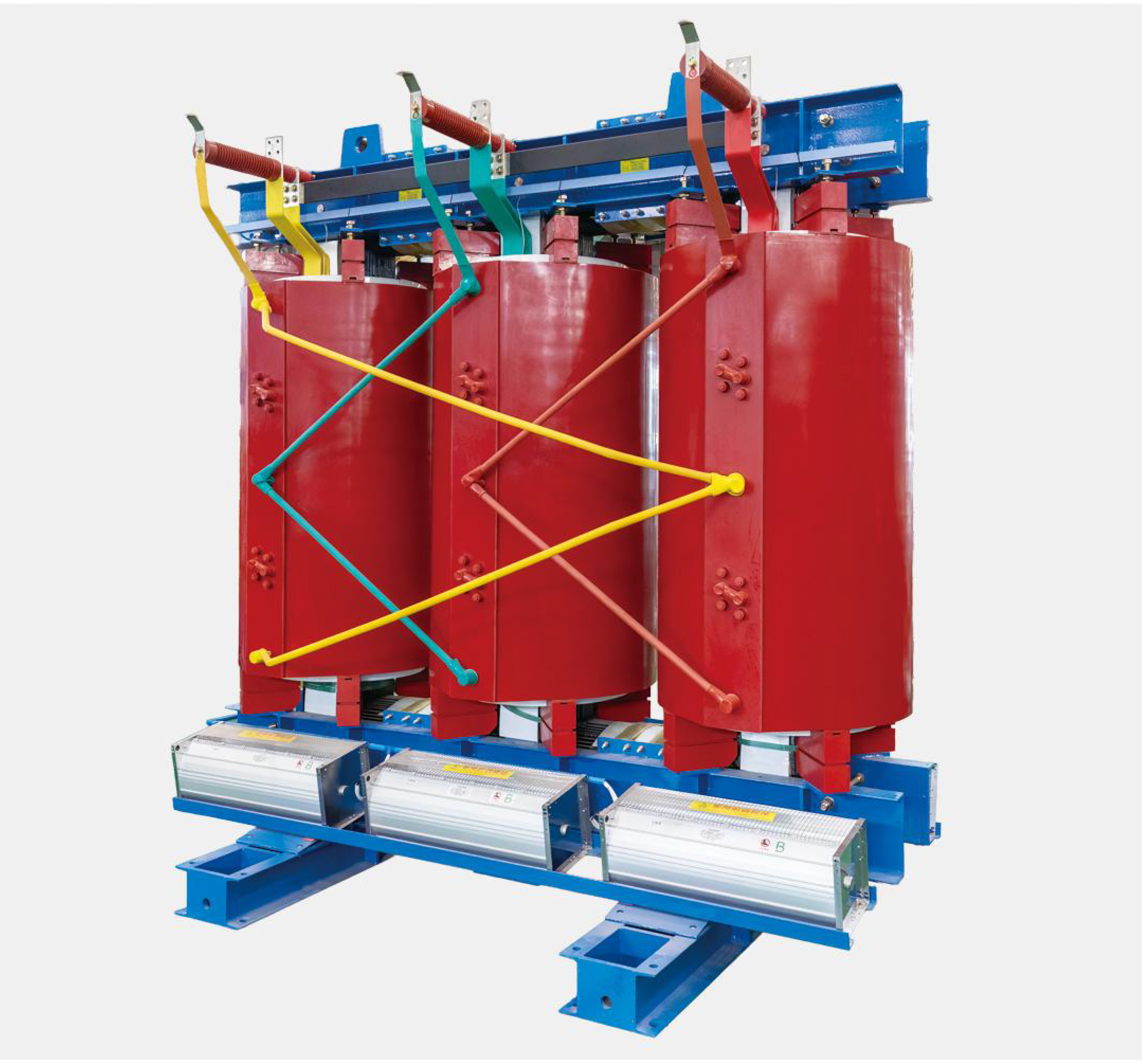

35kV Class Dry-Type Power Transformer

Dry-type transformers are often used in places with high fire protection requirements in various sectors such as industrial and mining enterprises, posts and telecommunications, textiles, railways, shopping malls, subways, schools, hospitals, hotels, national defense, and scientific research, supporting equipment including electronic computers, precision machine tools, computed tomography (CT) scanners, precision instruments, experimental devices, elevators, imported equipment, and production lines. The dry-type transformers produced by our company feature high mechanical strength, low partial discharge, excellent thermal stability, high reliability, long service life, and re

Availability:



Inquire Add to Basket

Description

Product Overview

The 35kV class dry-type power transformer is a high-performance electrical device designed for medium-voltage power distribution systems. Manufactured using advanced cast resin technology, this transformer offers exceptional reliability, safety, and durability, making it the preferred choice for critical applications where uninterrupted power supply is essential. Our 35kV cast resin dry-type transformer is built to withstand the rigors of industrial and commercial environments, ensuring consistent performance even under the most demanding conditions.

As a leading manufacturer of power transformers, we have incorporated decades of engineering expertise into the design of our high-voltage dry-type transformer. The result is a product that combines superior electrical performance with robust mechanical construction, providing our customers with a reliable power distribution solution that delivers years of trouble-free operation. Whether you need a transformer for a manufacturing plant, a transportation hub, or a government facility, our 35kV electrical transformer is engineered to meet your needs.

Key Advantages

Exceptional Mechanical Strength and Thermal Stability

Our industrial dry-type power transformer features a reinforced cast resin winding structure that provides excellent mechanical strength and resistance to short-circuit forces. The transformers also exhibit outstanding thermal stability, allowing them to handle overloads without compromising performance or lifespan. This ensures reliable operation even during peak demand periods.

Low Partial Discharge and High Reliability

We employ advanced manufacturing processes and strict quality control measures to ensure that our transformers have extremely low partial discharge levels. This minimizes the risk of insulation failure and extends the service life of the transformer. Our 35kV class dry-type power transformer has a proven track record of reliability in thousands of installations worldwide.

Superior Fire Safety Performance

The dry-type design of our transformers eliminates the risk of oil fires and explosions, making them ideal for installation in fire-sensitive locations. The cast resin insulation is self-extinguishing and does not produce toxic fumes in the event of a fire, ensuring the safety of personnel and property.

Long Service Life and Low Maintenance

Our fire-resistant dry-type transformer is built to last, with a service life of 25 years or more. The dry-type design requires minimal maintenance, eliminating the need for oil changes, filtration, and other routine tasks associated with oil-immersed transformers. This reduces downtime and lowers the total cost of ownership.

Technical Specifications

Product Model	Rated Capacity (kVA)	Vector Group Symbol	High Voltage (kV)	Tap Range	Low Voltage (kV)	No-load Loss (W)	Load Loss B(100℃) (W)	Load Loss F(120℃) (W)	Load Loss H(145℃) (W)	No-load Current (%)	Short-circuit Impedance (%)
SC11-800	800	Dyn11 / Yd11 / Yyn0	35 / 36 / 37 / 38.5	±2×2.5% / ±5%	3.15 / 6 / 6.3 / 10 / 10.5 / 11	2020	8870	9400	10000	0.85	6
SC11-1000	1000	Dyn11 / Yd11 / Yyn0	35 / 36 / 37 / 38.5	±2×2.5% / ±5%	3.15 / 6 / 6.3 / 10 / 10.5 / 11	2400	10300	10900	11600	0.85	6
SC11-1250	1250	Dyn11 / Yd11 / Yyn0	35 / 36 / 37 / 38.5	±2×2.5% / ±5%	3.15 / 6 / 6.3 / 10 / 10.5 / 11	2810	12100	12900	13800	0.75	6
SC11-1600	1600	Dyn11 / Yd11 / Yyn0	35 / 36 / 37 / 38.5	±2×2.5% / ±5%	3.15 / 6 / 6.3 / 10 / 10.5 / 11	3320	14600	15400	16500	0.75	6
SC11-2000	2000	Dyn11 / Yd11 / Yyn0	35 / 36 / 37 / 38.5	±2×2.5% / ±5%	3.15 / 6 / 6.3 / 10 / 10.5 / 11	3800	17200	18200	19500	0.65	7
SC11-2500	2500	Dyn11 / Yd11 / Yyn0	35 / 36 / 37 / 38.5	±2×2.5% / ±5%	3.15 / 6 / 6.3 / 10 / 10.5 / 11	4370	20600	21800	23300	0.65	7
SC11-3150	3150	Dyn11 / Yd11 / Yyn0	35 / 36 / 37 / 38.5	±2×2.5% / ±5%	3.15 / 6 / 6.3 / 10 / 10.5 / 11	5420	23100	24500	26200	0.6	7
SC11-4000	4000	Dyn11 / Yd11 / Yyn0	35 / 36 / 37 / 38.5	±2×2.5% / ±5%	3.15 / 6 / 6.3 / 10 / 10.5 / 11	6310	27700	29400	31500	0.6	8
SC11-5000	5000	Dyn11 / Yd11 / Yyn0	35 / 36 / 37 / 38.5	±2×2.5% / ±5%	3.15 / 6 / 6.3 / 10 / 10.5 / 11	7530	32900	34900	37400	0.55	8
SC11-6300	6300	Dyn11 / Yd11 / Yyn0	35 / 36 / 37 / 38.5	±2×2.5% / ±5%	3.15 / 6 / 6.3 / 10 / 10.5 / 11	8910	38500	40800	43700	0.55	8
SC11-8000	8000	Dyn11 / Yd11 / YNd11	35 / 36 / 37 / 38.5	±2×2.5% / ±5%	6 / 6.3 / 10 / 10.5 / 11	10100	43400	46000	49300	0.45	9
SC11-10000	10000	Dyn11 / Yd11 / YNd11	35 / 36 / 37 / 38.5	±2×2.5% / ±5%	6 / 6.3 / 10 / 10.5 / 11	11600	52400	55500	59400	0.45	9
SC11-12500	12500	Dyn11 / Yd11 / YNd11	35 / 36 / 37 / 38.5	±2×2.5% / ±5%	6 / 6.3 / 10 / 10.5 / 11	14100	60900	64600	69100	0.35	9
SC11-16000	16000	Dyn11 / Yd11 / YNd11	35 / 36 / 37 / 38.5	±2×2.5% / ±5%	6 / 6.3 / 10 / 10.5 / 11	17300	71700	76000	81300	0.35	9
SC11-20000	20000	Dyn11 / Yd11 / YNd11	35 / 36 / 37 / 38.5	±2×2.5% / ±5%	6 / 6.3 / 10 / 10.5 / 11	20600	80600	85500	91500	0.3	10
SC11-25000	25000	Dyn11 / Yd11 / YNd11	35 / 36 / 37 / 38.5	±2×2.5% / ±5%	6 / 6.3 / 10 / 10.5 / 11	24300	95300	101000	108000	0.3	10

Applications

The 35kV class dry-type power transformer is widely used in various sectors where safety, reliability, and performance are critical. Typical applications include:

Mining, metallurgy, and heavy industrial plants

Post and telecommunications facilities

Textile mills and manufacturing facilities

Railway stations, airports, and subway systems

National defense and military installations

Scientific research institutions and laboratories

Hospitals and medical centers with advanced equipment

High-rise buildings and commercial complexes

FAQ

What is the insulation class of your 35kV dry-type transformers?

Our standard 35kV dry-type transformers have an insulation class of F, which allows for a temperature rise of 100 K. We also offer transformers with insulation class H, which can withstand a temperature rise of 125 K for more demanding applications.

Can your 35kV transformers be customized for special voltage requirements?

Yes, we can customize our transformers to meet specific voltage requirements. Our engineering team can design transformers with non-standard high and low voltage ratings to suit your unique power distribution needs.

What safety features are included in your 35kV dry-type transformers?

Our transformers come standard with a range of safety features, including temperature sensors, overcurrent protection, and ground fault protection. We also offer optional features such as surge arresters and remote monitoring systems for enhanced safety and reliability.
