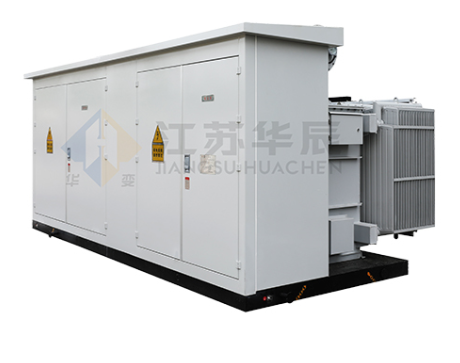

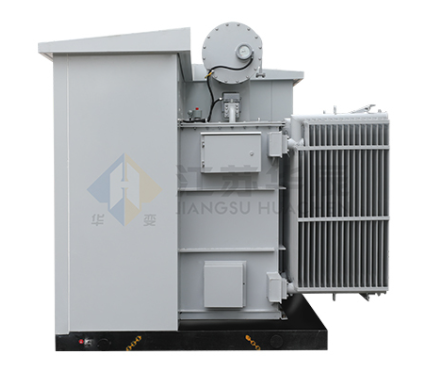

Hua-style Box-type Substation

The Hua-style Box-type Substation consists of three parts: high-voltage compartment, low-voltage compartment, transformer. The Hua-style prefabricated substation is mainly used for step-up transformer substations in new energy power generation. The structural feature is different from that of traditional transformer substations in that the transformer part is placed outside the transformer substation shell, which effectively solves the problem of transformer heat dissipation. The transformer rapidly removes the heat generated during operation through natural air. The transformer is tightly connected to the transformer housing via side-outlet wires. The transformer housing is divided into a high-voltage compartment and a low-voltage compartment by a partition in the housing. It is an ideal product for new energy power generation.

Availability:



Inquire Add to Basket

Product Description

Product Overview

The Hua-style Box-type Substation consists of three parts: high-voltage compartment, low-voltage compartment, transformer. The Hua-style prefabricated substation is mainly used for step-up transformer substations in new energy power generation. The structural feature is different from that of traditional transformer substations in that the transformer part is placed outside the transformer substation shell, which effectively solves the problem of transformer heat dissipation. The transformer rapidly removes the heat generated during operation through natural air. The transformer is tightly connected to the transformer housing via side-outlet wires. The transformer housing is divided into a high-voltage compartment and a low-voltage compartment by a partition in the housing. It is an ideal product for new energy power generation.

Structural Feature

1. Innovative External Transformer Design

The core differentiator of our Hua-style Box-type Substation is its external transformer configuration:

Superior Heat Dissipation: By positioning the transformer outside the main enclosure, heat generated during operation is rapidly dissipated via natural convection, eliminating the risk of overheating and reducing thermal stress on insulation materials.
Simplified Maintenance: The external transformer layout allows easy access for inspection, testing, and replacement, minimizing downtime and reducing long-term service costs.

2. Compact & Space-Efficient Layout

Despite its external transformer design, the overall footprint remains optimized for renewable energy sites:
The modular structure consolidates all necessary power distribution and transformation functions into a single, prefabricated unit, reducing on-site installation complexity and land usage.
The side-connected transformer and compact enclosure design aligns with the layout requirements of solar and wind farms, supporting efficient array and turbine cluster configurations.

Electrical Features

1. Vacuum circuit breakers or combined electrical appliances (load switch + fuse) can be flexibly used on the high-voltage side of Hua-type Box-type Substations. Vacuum circuit breakers and combined electrical appliances can be used as independent electrical units in 12kV and 40.5kV Hua-type Box-type Substation, with reasonable structure and simple and reliable operation.

2.The vacuum circuit breakers or combined electrical appliances (load switch + fuse) used on the high-voltage side are all equipped with mechanical interlocks to prevent misoperation. The combined electrical appliances (load switch + fuse) are all equipped with signal transmission signals to facilitate real-time monitoring of their operating status and remote control functions from the background.

Protection & Environmental Resilience

1. High-Grade Ingress Protection

Our Hua-style Box-type Substation are designed for the operating environments of renewable energy projects (deserts, coastal areas, high-altitude areas), offering robust protection:

Transformer body: IP68 protection rating, dustproof and waterproof, ensuring reliability under extreme weather and environmental conditions.
Enclosure: IP54 or higher ingress protection rating, effectively preventing sand, dust, and rain ingress while maintaining adequate ventilation for internal components.

2. Environmental Durability

Sand & Wind Resistance: The enclosure design incorporates special sealing and structural reinforcement to withstand the strong winds and sandstorms common in renewable energy projects in desert and arid regions.
Thermal Insulation: Advanced thermal insulation materials are used in the enclosure to minimize heat transfer, protecting internal electrical components from extreme temperature fluctuations.
Extended Service Life: The combination of superior cooling, high-grade protection, and robust construction significantly extends the operational lifespan of internal components.

Value for B2B Buyers

For EPC contractors, renewable energy developers, and utility operators, our Huachen-Style Box-type Subatsation delivers clear competitive advantages:

1.Optimized Thermal Performance: The external transformer design eliminates overheating risks, ensuring stable, continuous operation even under the high-load conditions of renewable energy generation.

2.Reduced Project Costs: Factory prefabrication and modular design minimize on-site installation time and labor costs, while simplified maintenance reduces long-term operational expenses.

3.Enhanced Safety & Reliability: Mechanical interlocking, high-grade protection, and proven switchgear technologies minimize downtime and risk, critical for meeting renewable energy project revenue targets.

4.Flexible Customization: A range of voltage levels (12kV/40.5kV) and switchgear options allow for tailored solutions to match specific project requirements and grid standards.
