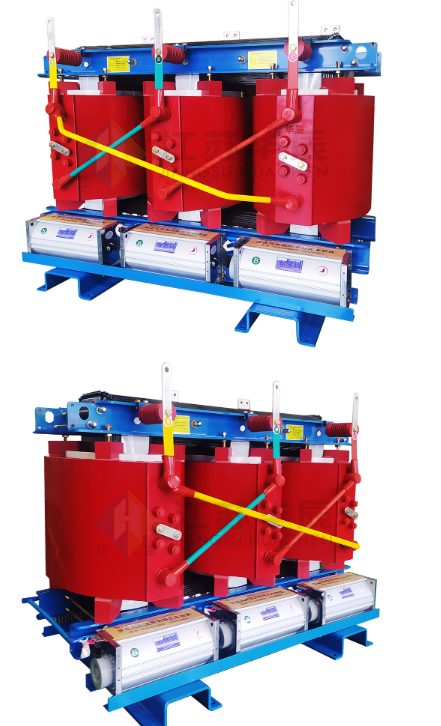

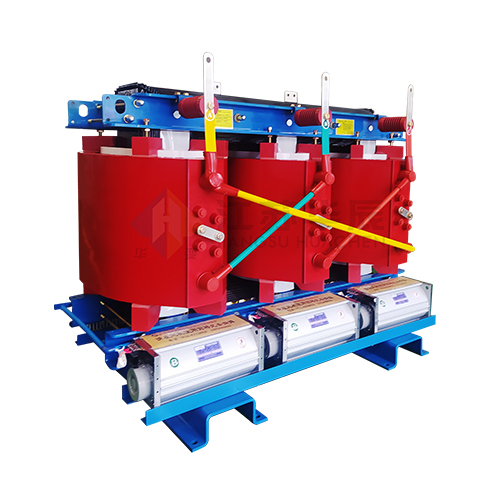

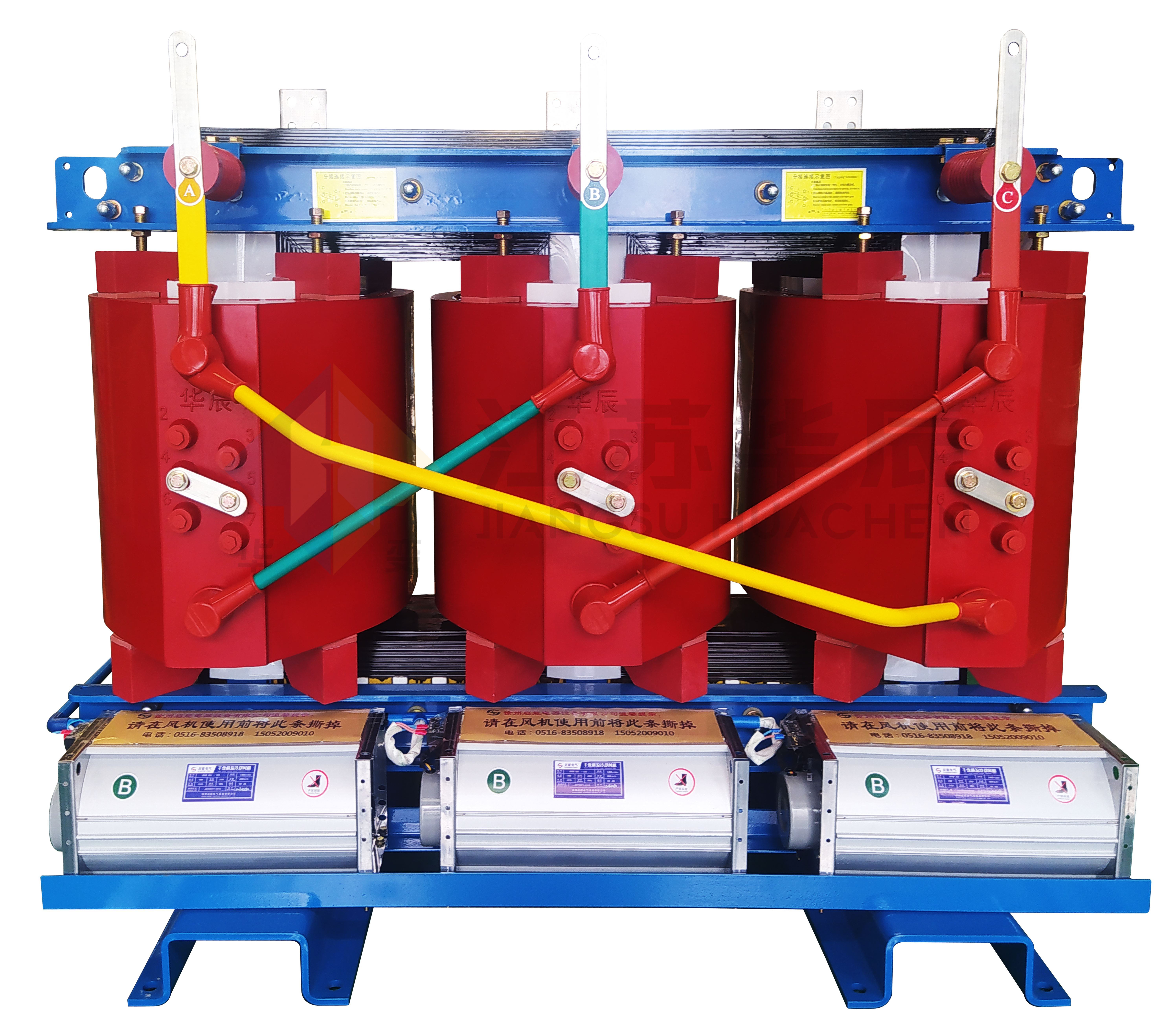

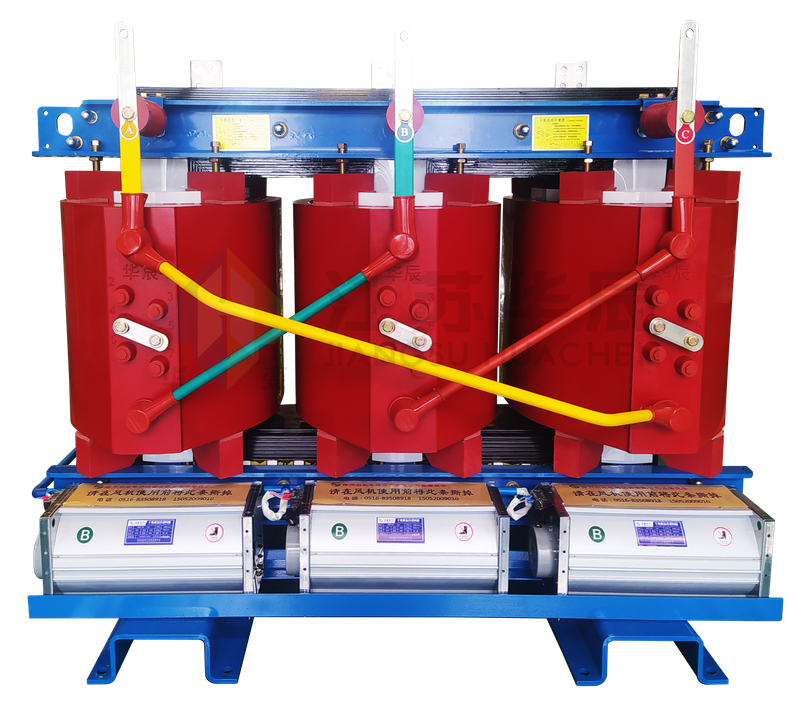

SC(B)14 Energy Efficiency Class 2 Dry-Type Transformer

Energy-saving dry-type transformers complying with the GB20052-2020 standard and meeting Level 2 energy efficiency feature strong short-circuit resistance, low maintenance workload, high operating efficiency, small size and low noise. They are commonly used in places with high requirements for fire protection and explosion-proof performance. Safe, fire-resistant and pollution-free, they can operate directly under high electrical loads.

Availability:



Inquire Add to Basket

Description

Product Overview

The SC(B)14 dry-type transformer is a premium energy-saving power equipment fully compliant with the GB20052-2020 national standard, achieving the strict energy efficiency class 2 dry-type transformer rating. This advanced transformer adopts cutting-edge core and winding technologies to deliver exceptional performance while minimizing energy consumption throughout its operational lifecycle. Designed with safety and reliability as top priorities, it features a fully enclosed, non-flammable structure that eliminates the risk of oil leaks and fire hazards, making it ideal for high-demand environments where fire protection and explosion prevention are critical requirements. Unlike traditional oil-immersed transformers, it produces no toxic emissions or environmental pollution, allowing direct installation and continuous operation in high-load electrical systems without additional safety precautions. Its compact footprint and optimized thermal design further enhance its versatility for space-constrained installations across various industrial and commercial sectors.

Key Advantages

Superior Energy Efficiency: As a certified GB20052-2020 dry-type transformer, it reduces no-load losses by up to 20% compared to older generation models, significantly lowering long-term electricity costs and carbon footprints for commercial and industrial facilities.

Exceptional Short-Circuit Resistance: Reinforced winding structures and high-strength insulation materials provide outstanding mechanical strength, enabling the transformer to withstand severe short-circuit impacts without structural damage, ensuring uninterrupted power supply.

Fireproof and Eco-Friendly: The cast resin insulation design is inherently non-combustible and self-extinguishing, eliminating fire risks associated with oil-filled transformers. It contains no hazardous substances and produces no pollution during operation.

Ultra-Low Noise Operation: Advanced sound insulation technology and optimized core stacking reduce operational noise to ≤50dB, making it suitable for noise-sensitive environments such as hospitals, office buildings and residential complexes.

Minimal Maintenance Requirements: The fully sealed, moisture-proof and dust-proof structure eliminates the need for regular oil changes, filtration or insulation testing, reducing maintenance costs and downtime to a minimum.

Technical Specifications

Product Model	Rated Capacity (kVA)	Connection Group Label	Voltage Combination (kV)			No-Load Loss (W)	Load Loss (W)			No-Load Current (%)	Short-Circuit Impedance (%)
Product Model	Rated Capacity (kVA)	Connection Group Label	High Voltage	Tap Range	Low Voltage	No-Load Loss (W)	B(100℃)	F(120℃)	H(145℃)	No-Load Current (%)	Short-Circuit Impedance (%)
SC(B)14-30	30	Yyn0 or Dyn11	6 6.3 6.6 10 10.5 11	±2×2.5% ±5%	0.4	130	605	640	685	2	4
SC(B)14-50	50					185	845	900	965	2
SC(B)14-80	80					250	1160	1240	1330	1.5
SC(B)14-100	100					270	1330	1415	1520	1.5
SC(B)14-125	125					320	1565	1665	1780	1.3
SC(B)14-160	160					365	1800	1915	2050	1.3
SC(B)14-200	200					420	2135	2275	2440	1.1
SC(B)14-250	250					490	2330	2485	2665	0.9
SC(B)14-315	315					600	2945	3125	3355	0.8
SC(B)14-400	400					665	3375	3590	3850	0.8
SC(B)14-500	500					790	4130	4390	4705	0.8
SC(B)14-630	630					910	4975	5290	5660	0.7
SC(B)14-630	630					885	5050	5365	5760	0.7	6.0~8.0
SC(B)14-800	800					1035	5895	6265	6715	0.7
SC(B)14-1000	1000					1205	6885	7315	7885	0.7
SC(B)14-1250	1250					1420	8190	8720	9335	0.7
SC(B)14-1600	1600					1665	9945	10555	11320	0.7
SC(B)14-2000	2000					2075	12240	13005	14005	0.6
SC(B)14-2500	2500					2450	14535	15445	16605	0.6

Applications

The low noise dry-type transformer is widely used in facilities with strict safety and environmental requirements, including:

Hospitals, medical centers and healthcare facilities

Data centers, server rooms and IT infrastructure

Commercial buildings, shopping malls and hotels

Subway stations, airports and transportation hubs

Chemical plants, oil refineries and gas stations

Power distribution rooms in residential communities

High-rise buildings and underground facilities

FAQ

What is the energy efficiency standard of SC(B)14 dry-type transformers?

The SC(B)14 dry-type transformer fully complies with the GB20052-2020 national energy efficiency standard and achieves the energy efficiency class 2 rating, which represents the second-highest energy efficiency level for dry-type transformers in China.

Can SC(B)14 transformers operate in high-temperature environments?

Yes, with F/H class insulation, these transformers can operate continuously at ambient temperatures up to 40°C. For higher temperature environments, we can provide customized cooling solutions to ensure stable performance.

What is the typical service life of an SC(B)14 dry-type transformer?

Under normal operating conditions and proper maintenance, the maintenance-free dry-type transformer has a service life of more than 30 years, significantly longer than many traditional transformer models.

Get a Custom Quote Today

We offer customized high short-circuit resistance transformer solutions tailored to your specific power requirements and installation conditions. Whether you need a standard model or a fully customized design, our engineering team will work closely with you to deliver the optimal power solution. Contact us today for a free, no-obligation quote:

Inquiry Hotline: +86-15852118166

Quote Email: baojia@hcbyq.com
