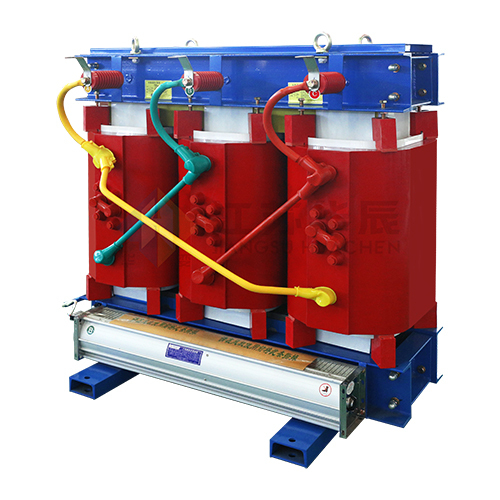

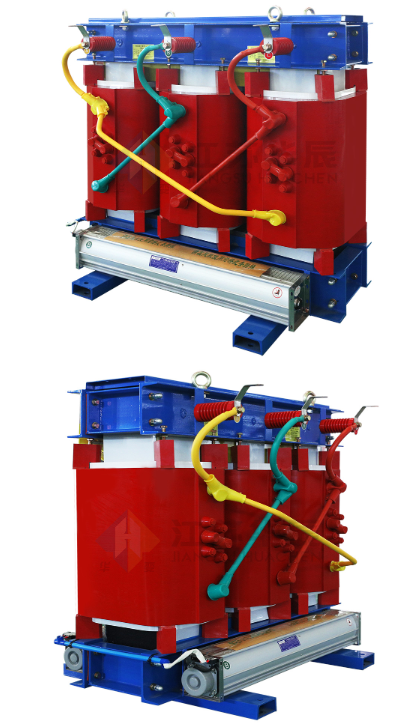

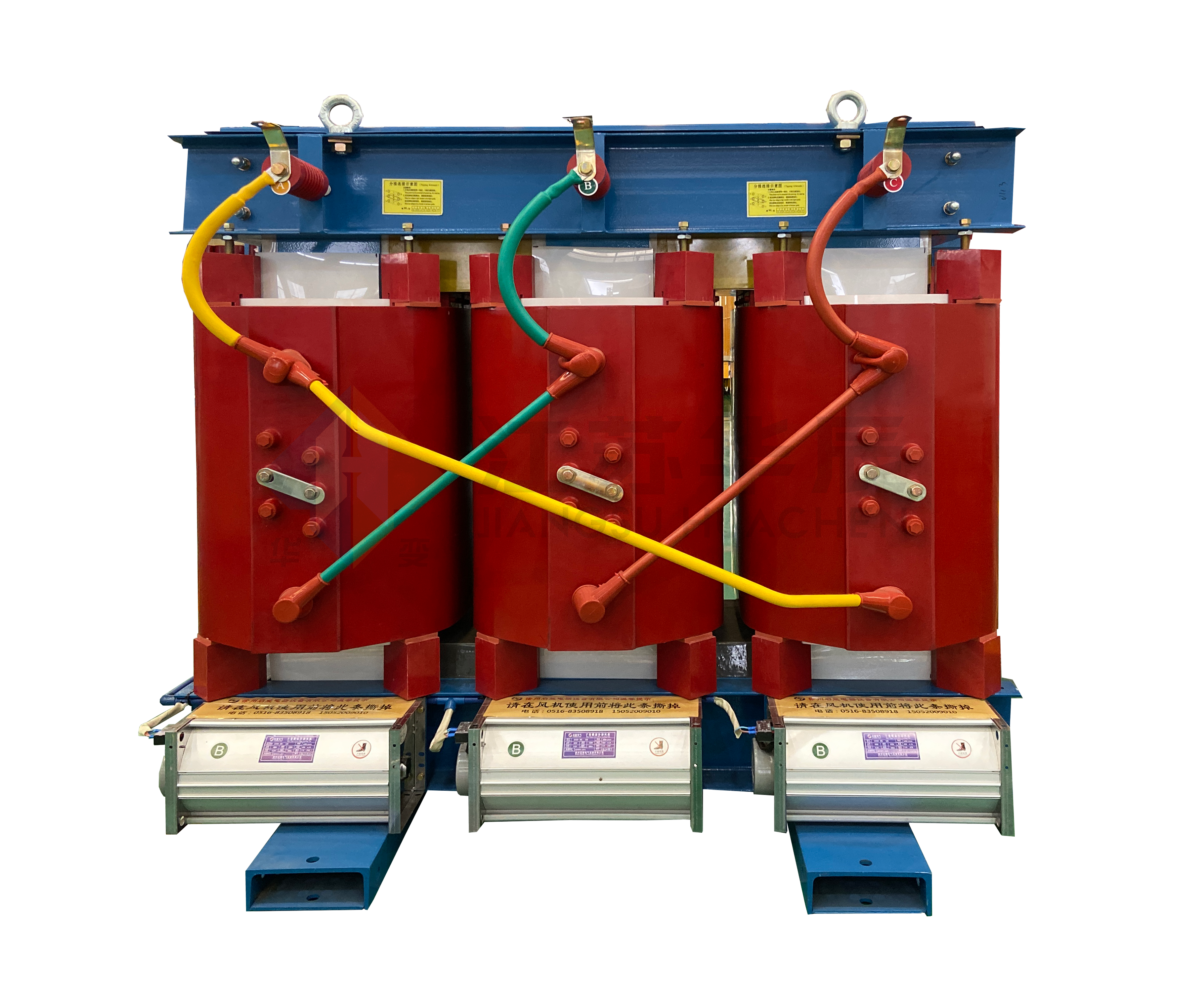

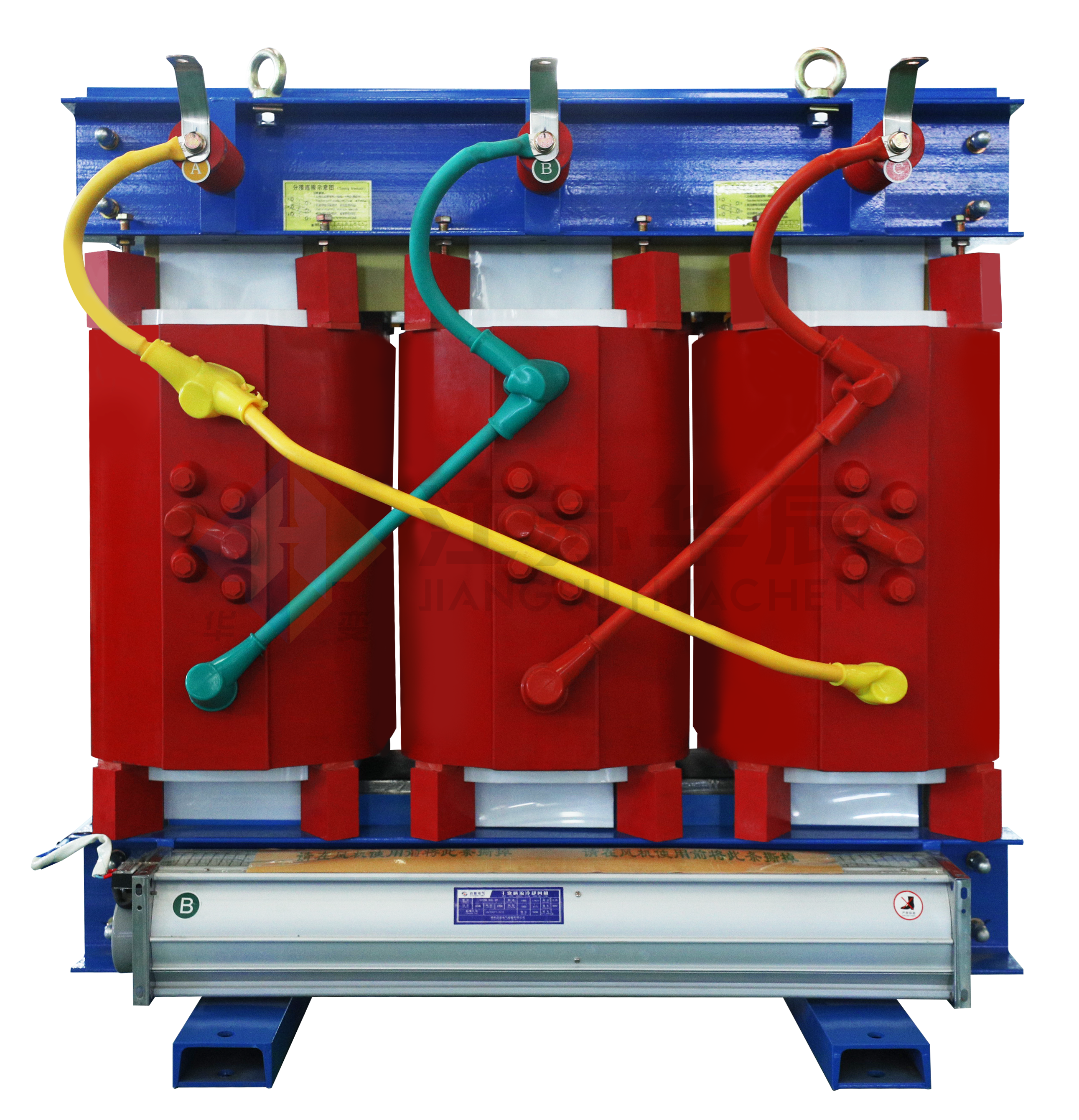

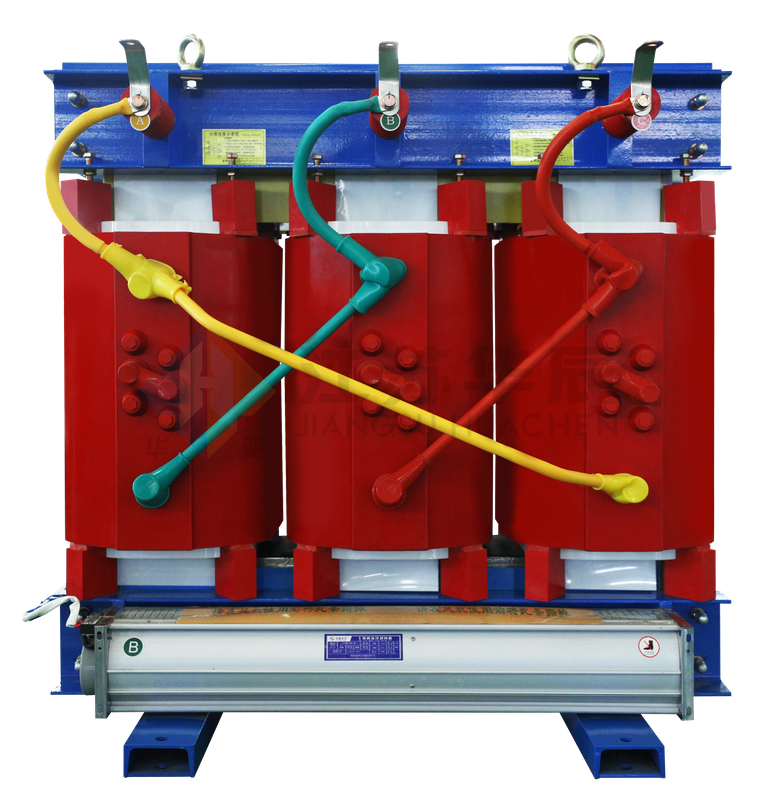

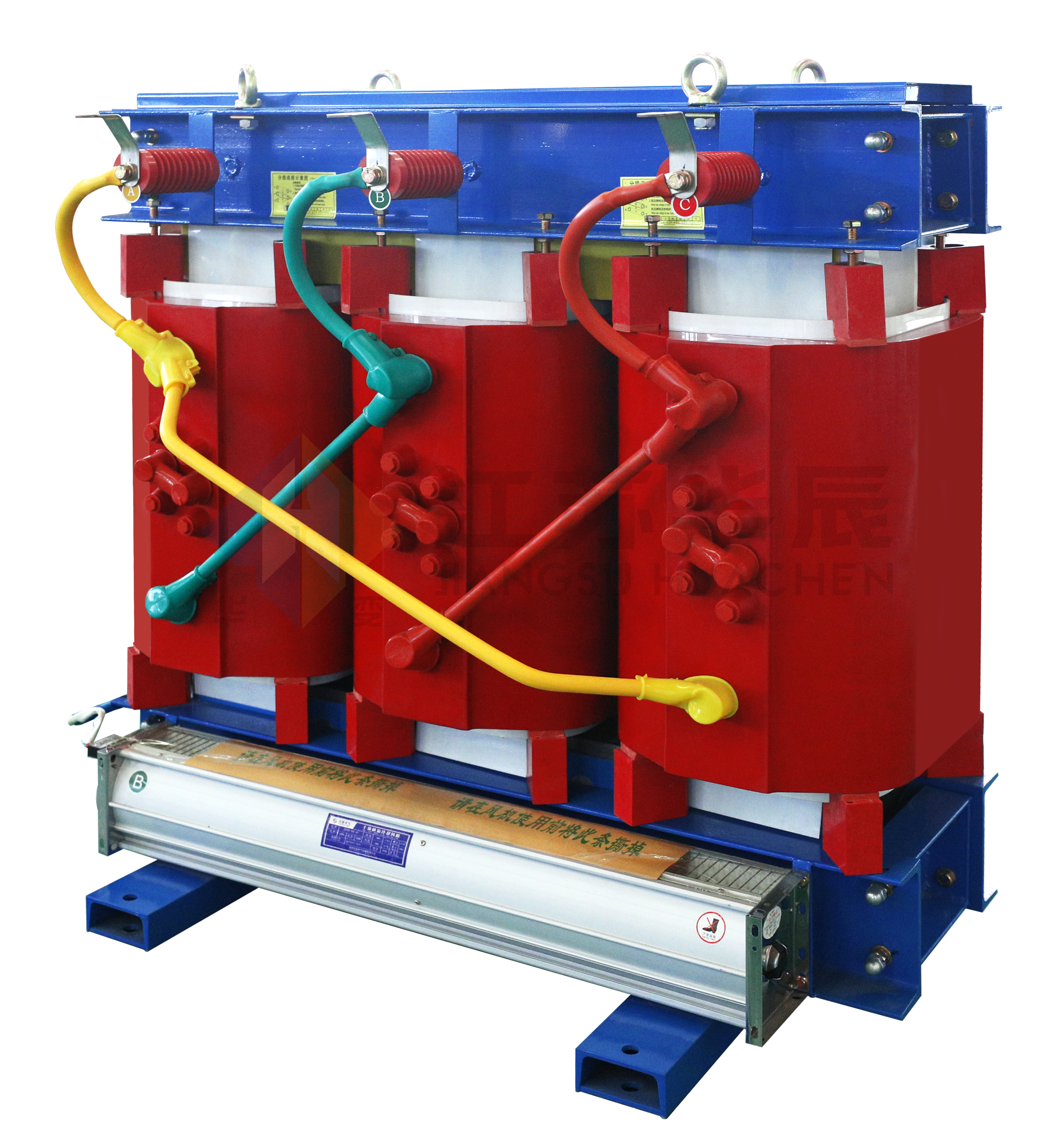

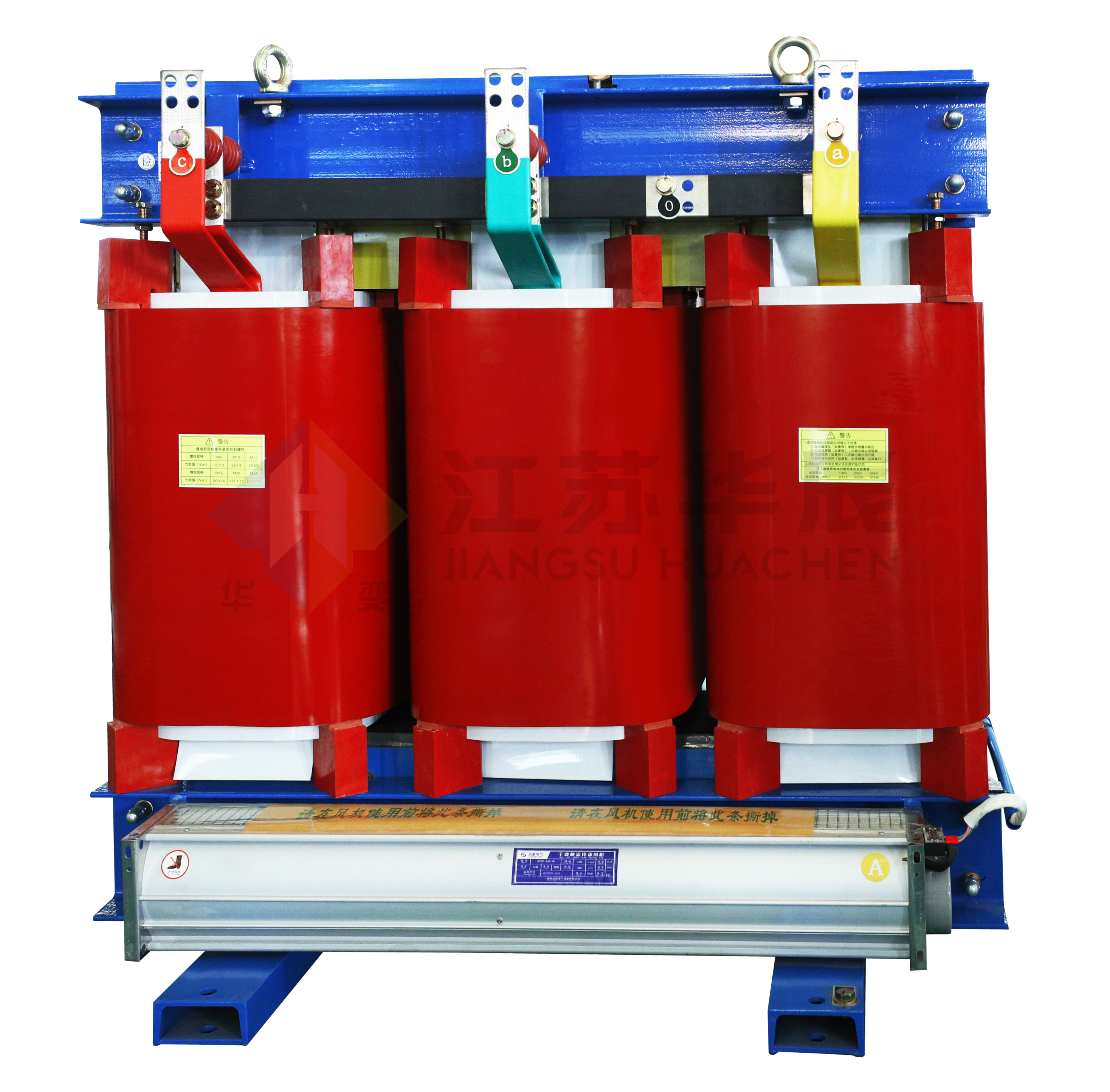

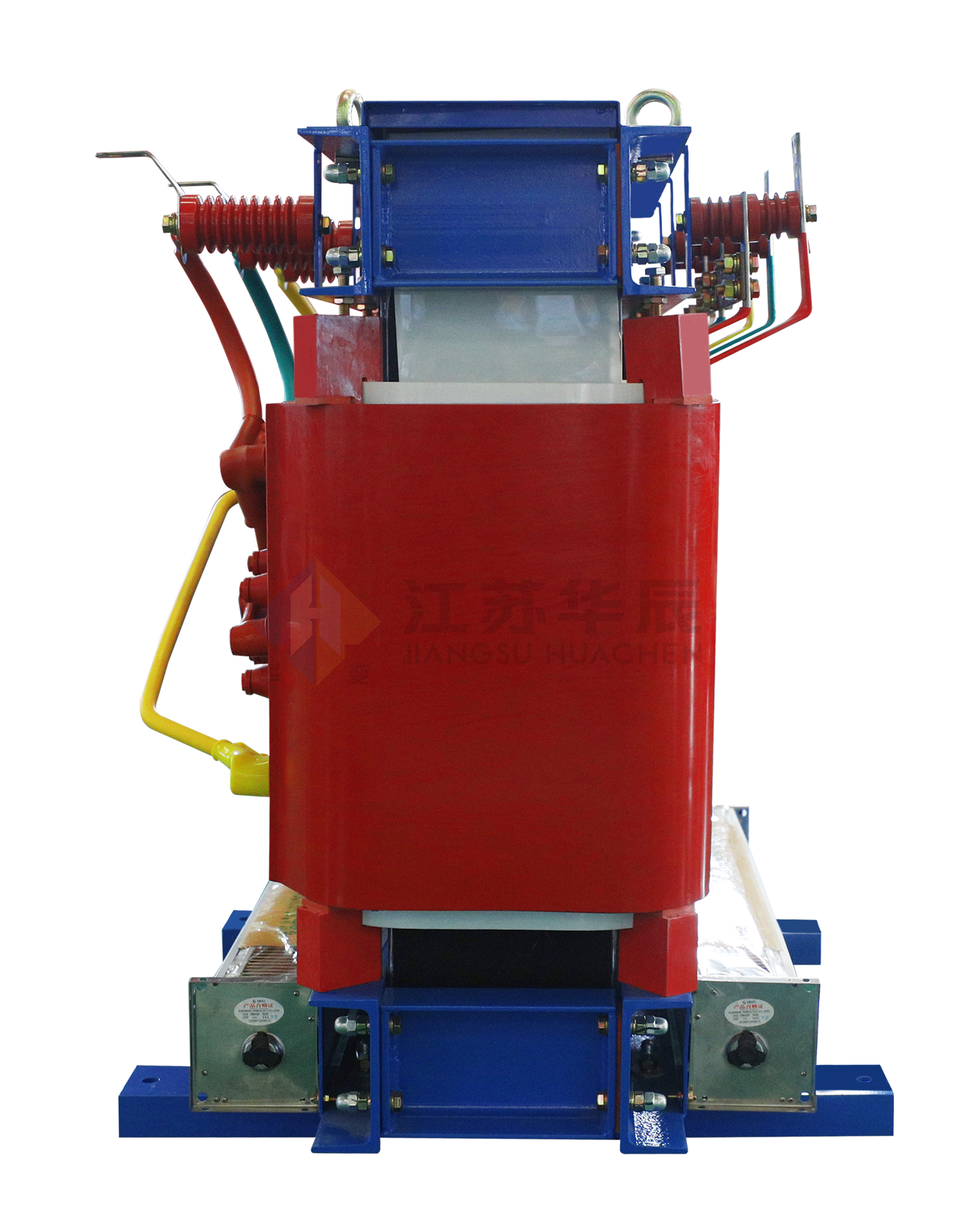

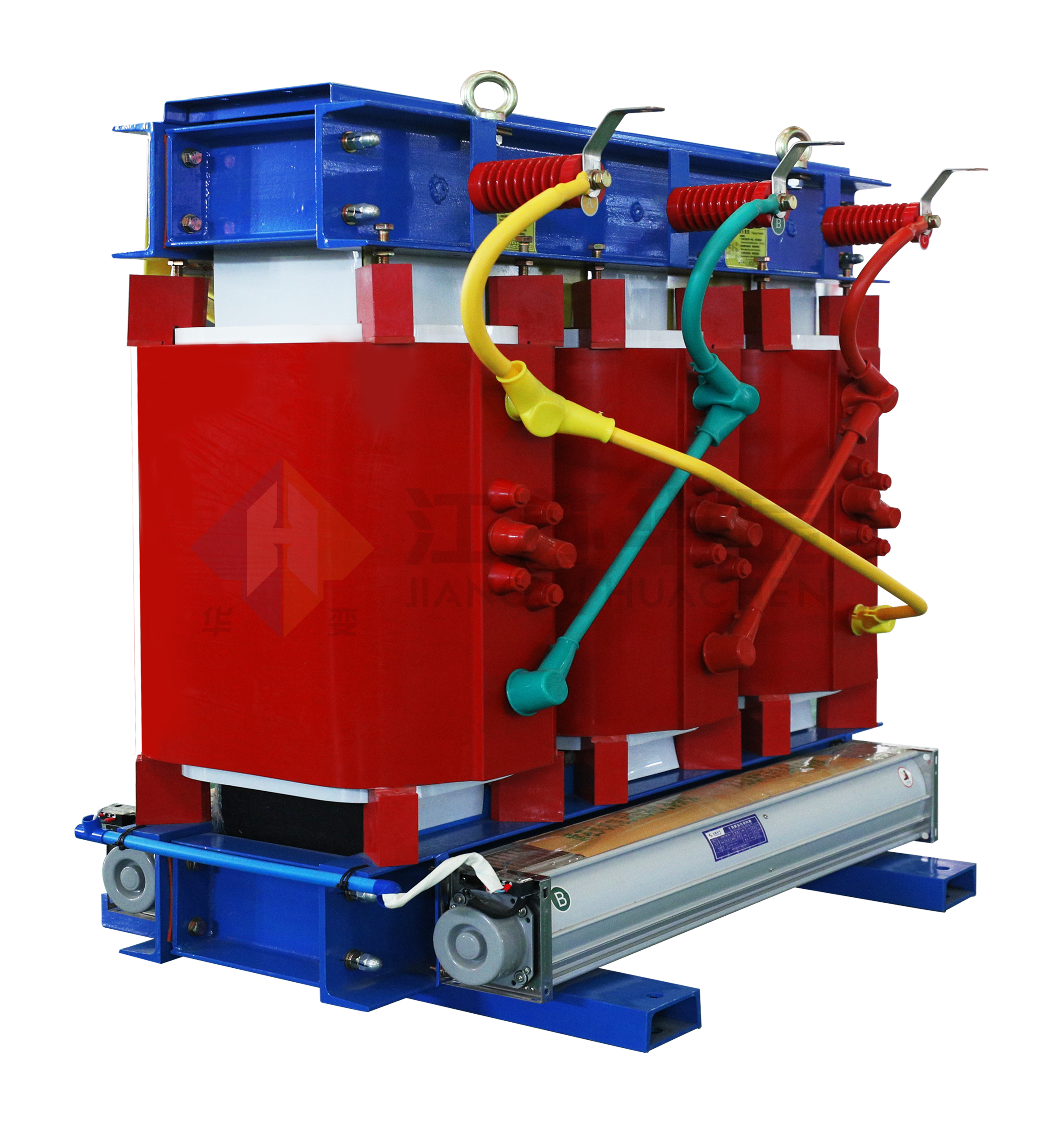

The SC(B)H series amorphous alloy dry-type transformer represents a revolutionary advancement in energy-efficient power distribution equipment. Engineered with cutting-edge amorphous alloy core technology, this transformer delivers exceptional performance that far exceeds traditional silicon steel core transformers. The SC(B)H15 amorphous alloy transformer, the flagship model of this series, is designed to meet the most stringent energy conservation standards, making it the ideal choice for forward-thinking businesses seeking to reduce operational costs and minimize their carbon footprint.
Unlike conventional transformers that rely on silicon steel cores, our low-loss amorphous alloy transformer utilizes a unique metallic glass material that exhibits superior magnetic properties. This innovative design results in dramatically lower no-load losses and no-load currents, translating to significant energy savings throughout the transformer's entire service life. Whether you are upgrading an existing power system or constructing a new facility, our energy-saving dry-type transformer provides a reliable, cost-effective solution that delivers long-term value.
The most significant advantage of the amorphous alloy core transformer is its exceptional energy-saving performance. The no-load loss of our transformers is only 30% of that of silicon steel core transformers and is 75% lower than the values specified in the GB/T10228 standard. This translates to substantial reductions in electricity bills, especially for transformers that operate continuously. Over a typical 20-year service life, the energy savings alone can offset the initial investment multiple times over.
By consuming less electricity, our low no-load loss transformer helps reduce greenhouse gas emissions and dependence on fossil fuels. Additionally, the dry-type design eliminates the risk of oil leaks and environmental contamination, making it an eco-friendly choice for sensitive locations. The transformers are also fully recyclable at the end of their service life, further minimizing their environmental impact.
Our SC(B)H series amorphous alloy dry-type transformer features a robust cast resin construction that provides excellent insulation and mechanical strength. It is resistant to fire, moisture, and dust, ensuring reliable operation even in harsh environments. The transformers also produce very low noise levels, making them suitable for installation in noise-sensitive areas such as hospitals, schools, and office buildings.
The dry-type design eliminates the need for oil changes, filtration, and other routine maintenance associated with oil-immersed transformers. This reduces downtime and maintenance costs, allowing your business to focus on its core operations.
Model | Rated capacity (kVA) | Connection group label | Voltage combination (kV) | No-load loss (W) | Load loss (W) 120℃ (F) | No-load current (%) | Short-circuit impedance (%) |
|---|---|---|---|---|---|---|---|
SCH15-30 | 30 | Dyn11 | High voltage: 6, 6.3, 6.6, 10, 10.5, 11 Tap range: ±5%, ±2×2.5% Low voltage: 0.4 | 70 | 710 | 0.6 | 4 |
SCH15-50 | 50 | Dyn11 | 90 | 1000 | 0.5 | 4 | |
SCH15-80 | 80 | Dyn11 | 120 | 1380 | 0.5 | 4 | |
SCH15-100 | 100 | Dyn11 | 130 | 1570 | 0.5 | 4 | |
SCH15-125 | 125 | Dyn11 | 150 | 1850 | 0.4 | 4 | |
SCH15-160 | 160 | Dyn11 | 170 | 2130 | 0.4 | 4 | |
SCH15-200 | 200 | Dyn11 | 200 | 2530 | 0.4 | 4 | |
SCH(B)15-250 | 250 | Dyn11 | 230 | 2760 | 0.4 | 4 | |
SCH(B)15-315 | 315 | Dyn11 | 280 | 3470 | 0.3 | 4 | |
SCH(B)15-400 | 400 | Dyn11 | 310 | 3990 | 0.3 | 4 | |
SCH(B)15-500 | 500 | Dyn11 | 360 | 4880 | 0.3 | 4 | |
SCH(B)15-630 | 630 | Dyn11 | 420 | 5880 | 0.3 | 4 | |
SCH(B)15-630 | 630 | Dyn11 | 410 | 5960 | 0.3 | 6 | |
SCH(B)15-800 | 800 | Dyn11 | 480 | 6960 | 0.3 | 6 | |
SCH(B)15-1000 | 1000 | Dyn11 | 550 | 8130 | 0.2 | 6 | |
SCH(B)15-1250 | 1250 | Dyn11 | 650 | 9690 | 0.2 | 6 | |
SCH(B)15-1600 | 1600 | Dyn11 | 760 | 11700 | 0.2 | 6 | |
SCH(B)15-2000 | 2000 | Dyn11 | 1000 | 14400 | 0.2 | 6 | |
SCH(B)15-2500 | 2500 | Dyn11 | 1200 | 17100 | 0.2 | 6 | |
SCH(B)15-1600 | 1600 | Dyn11 | 760 | 12900 | 0.2 | 8 | |
SCH(B)15-2000 | 2000 | Dyn11 | 1000 | 15900 | 0.2 | 8 | |
SCH(B)15-2500 | 2500 | Dyn11 | 1200 | 18800 | 0.2 | 8 |
The SC(B)H series amorphous alloy dry-type transformer is widely used in various commercial and industrial settings where energy efficiency and reliability are paramount. Typical applications include:
Commercial buildings, shopping malls, and office complexes
Data centers and telecommunications facilities
Hospitals, clinics, and healthcare institutions
Schools, universities, and research centers
Industrial plants and manufacturing facilities
Residential complexes and apartment buildings
Hotels, restaurants, and entertainment venues
An amorphous alloy transformer can save up to 75% on no-load losses compared to a standard silicon steel core transformer. For a 1000 kVA transformer operating 24 hours a day, this translates to annual energy savings of approximately 12,000 kWh.
With proper installation and maintenance, our transformers have a service life of 20 years or more. The cast resin construction ensures long-term durability and resistance to environmental factors.
While our transformers are primarily designed for indoor use, they can be installed outdoors with the addition of a weatherproof enclosure. Please contact our engineering team for custom outdoor solutions.
If you are looking for a high-performance, energy-efficient power distribution solution, our SC(B)H series amorphous alloy dry-type transformer is the perfect choice. We offer custom solutions tailored to your specific requirements, including different voltage ratings, capacities, and accessories.
Contact us today at +86-15852118166 or send an email to baojia@hcbyq.com to get a free, no-obligation quote. Our experienced team of engineers will work closely with you to design a transformer that meets your exact needs and budget.
