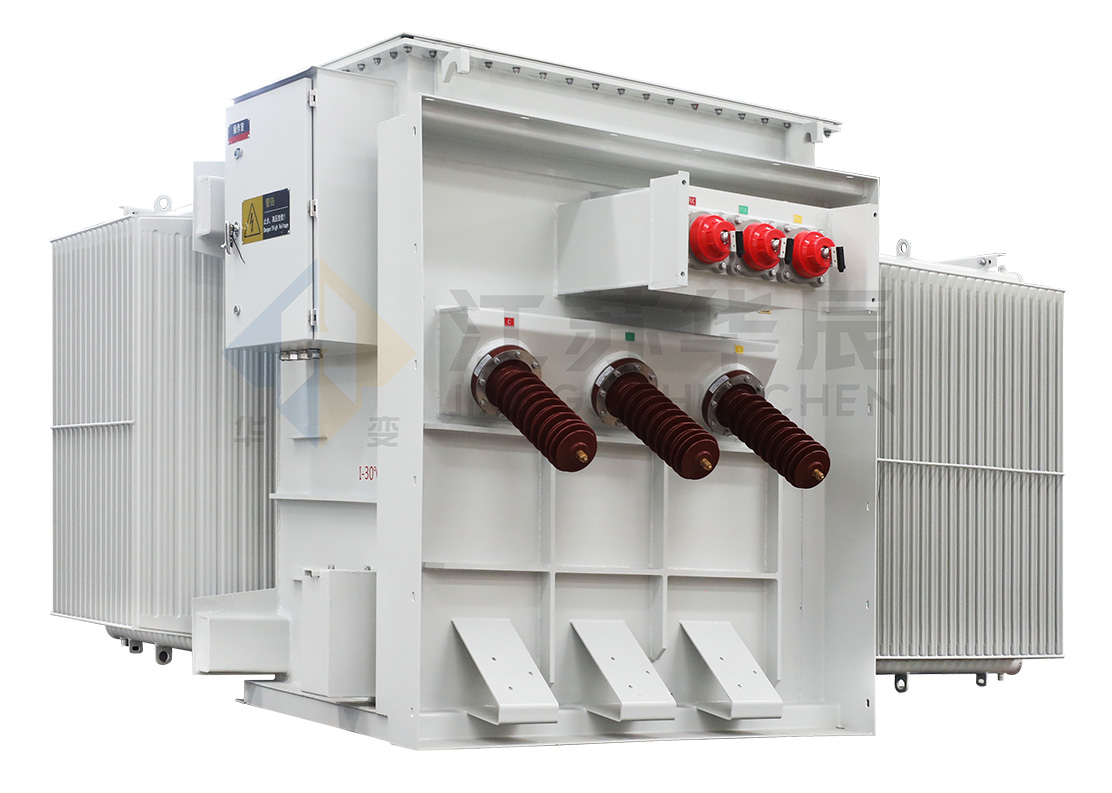

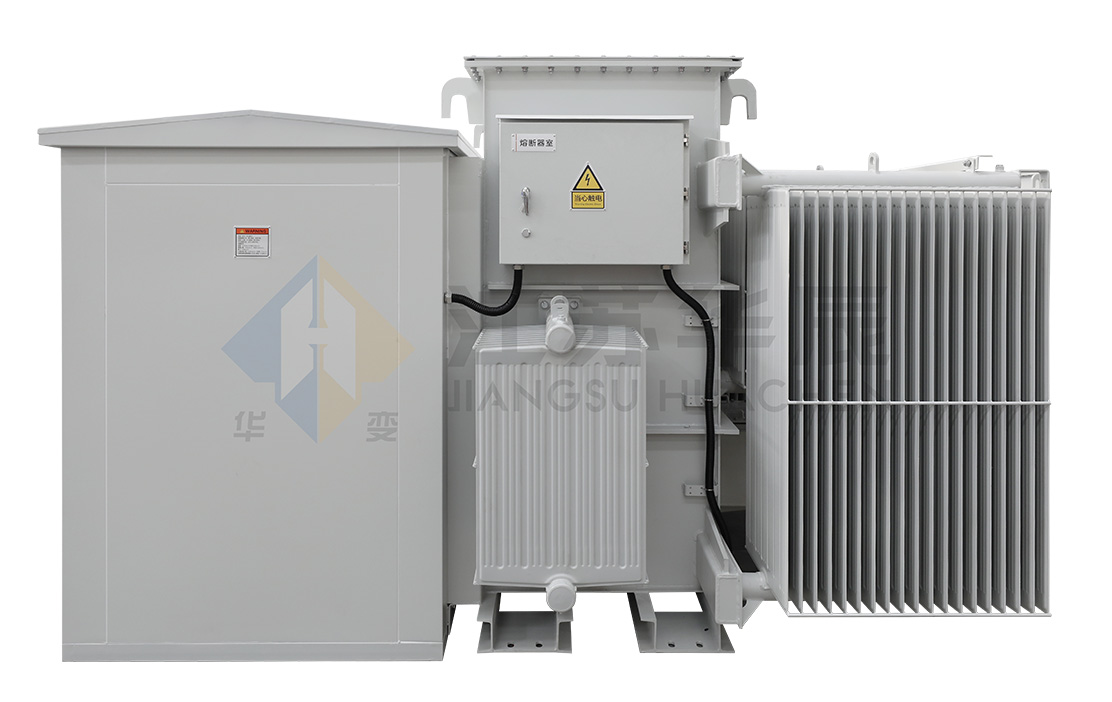

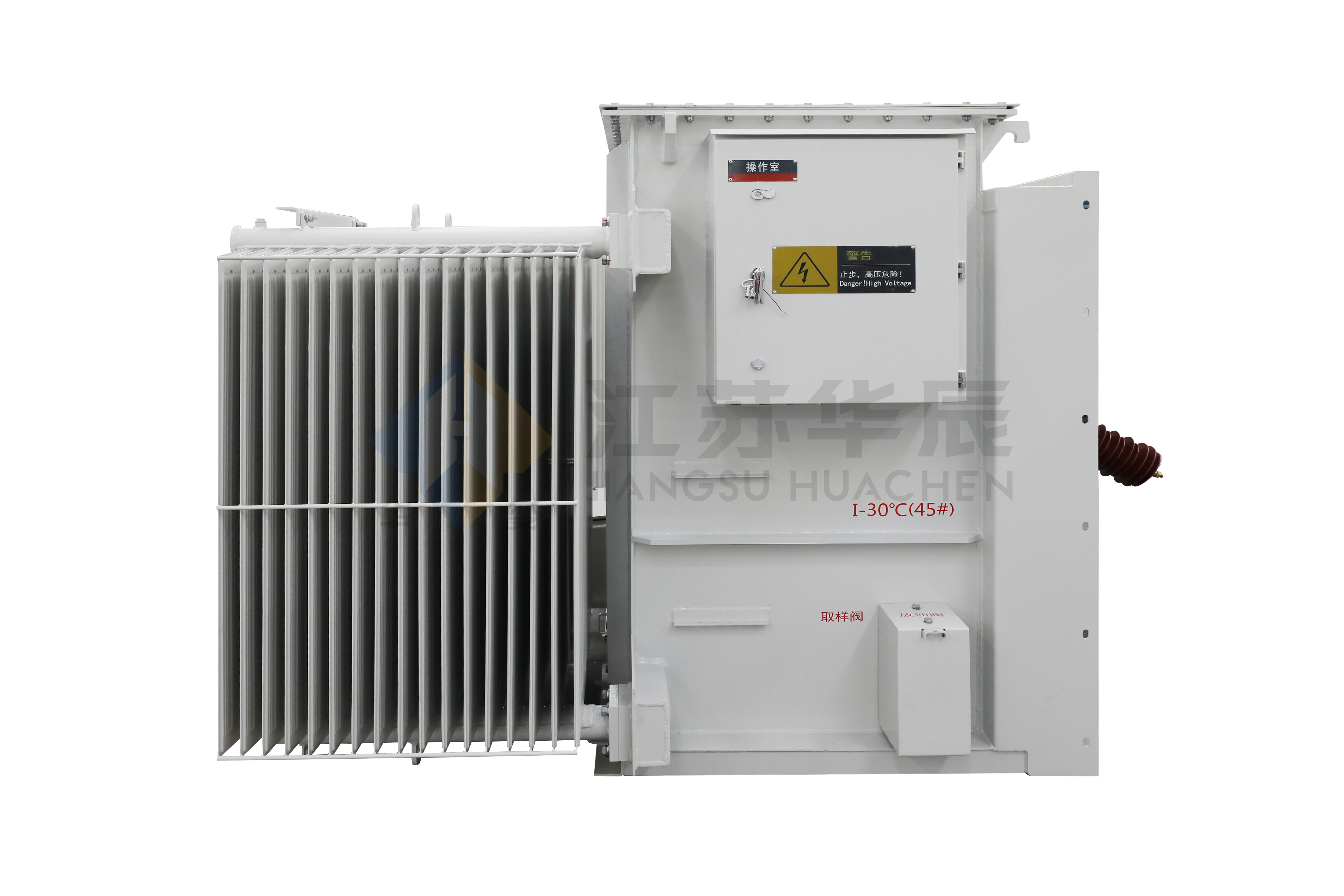

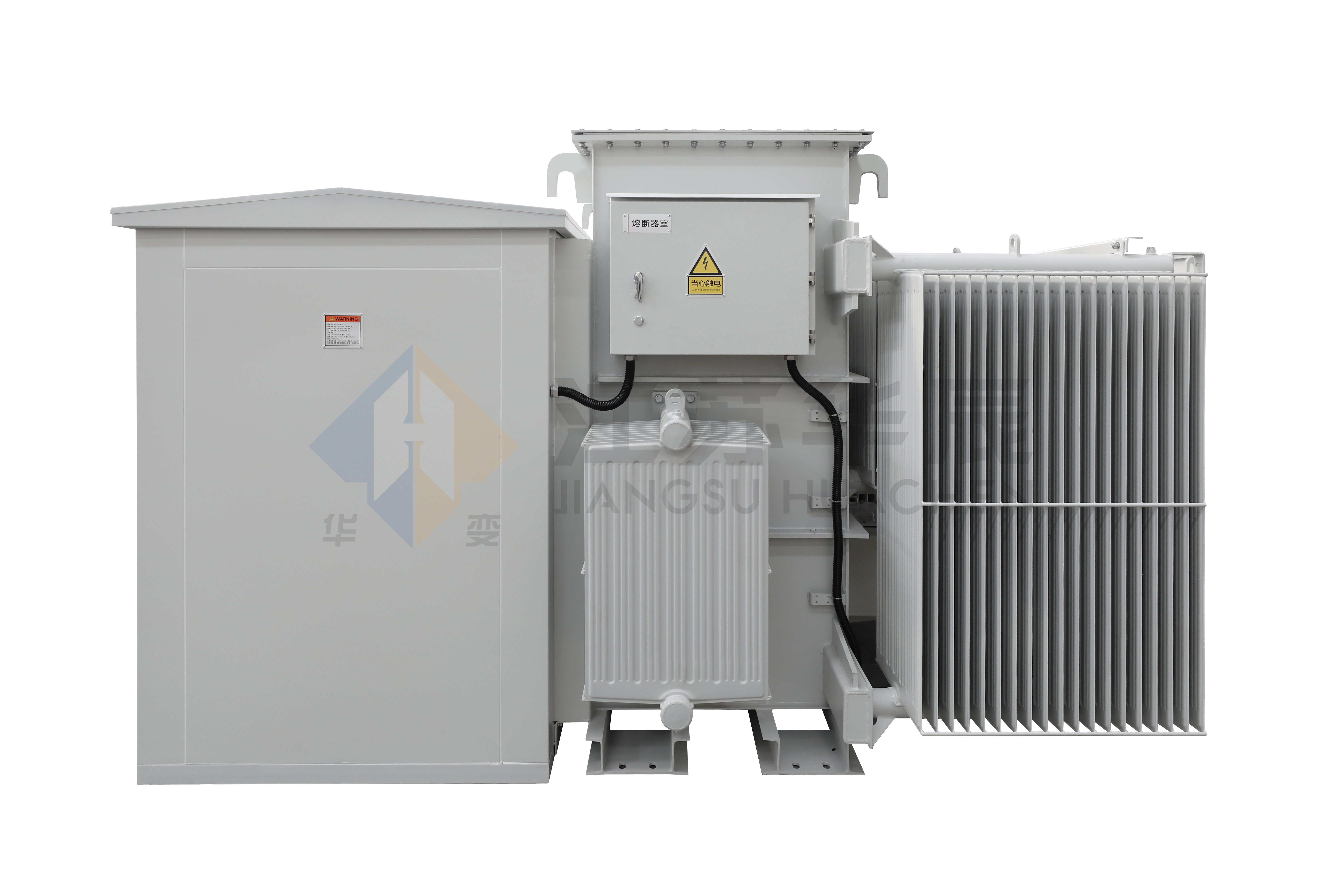

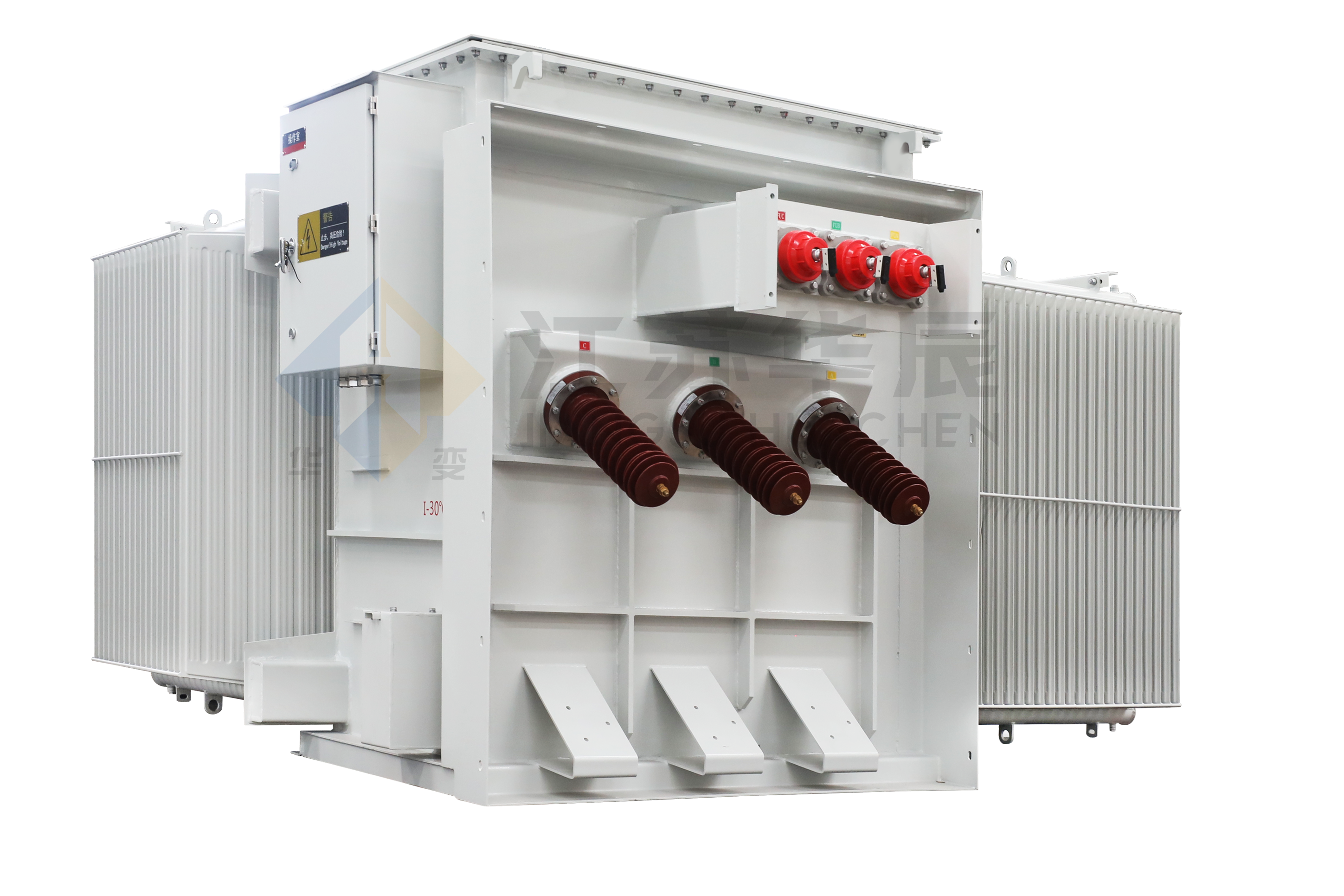

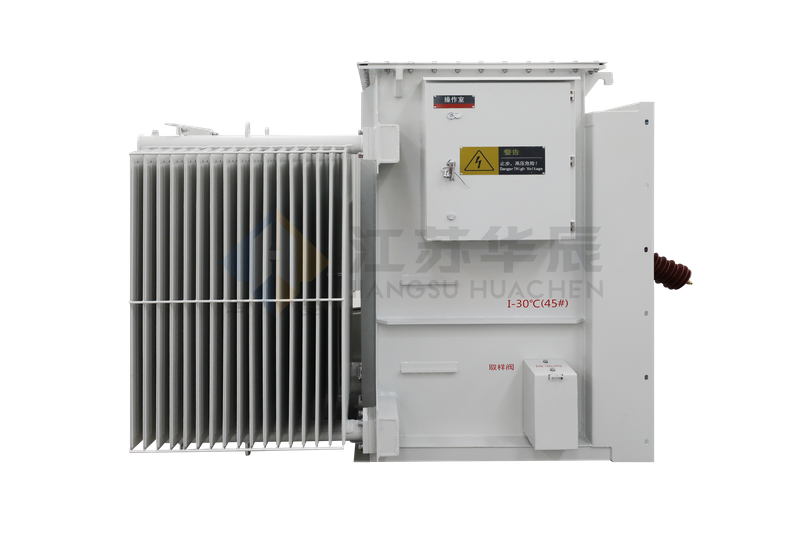

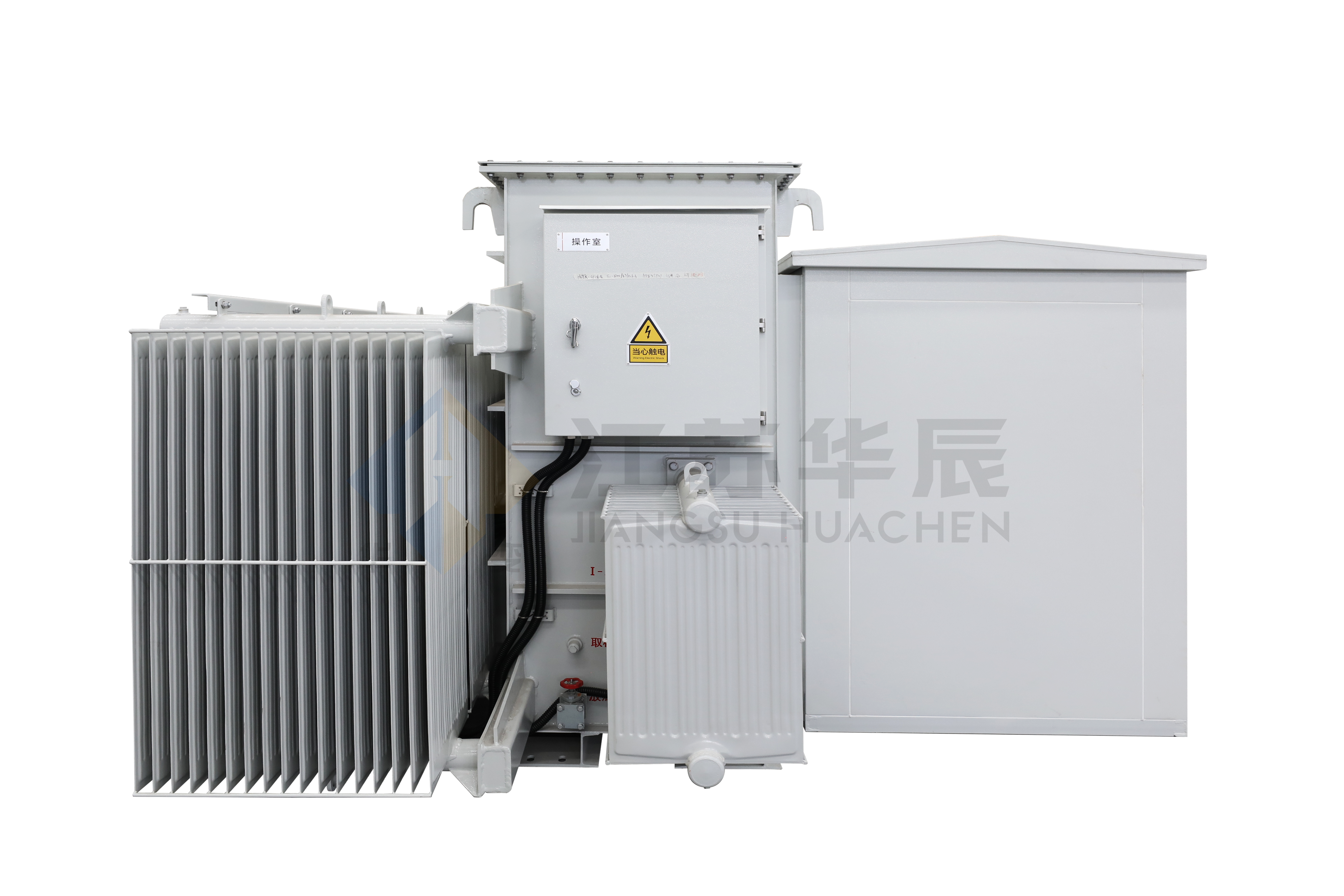

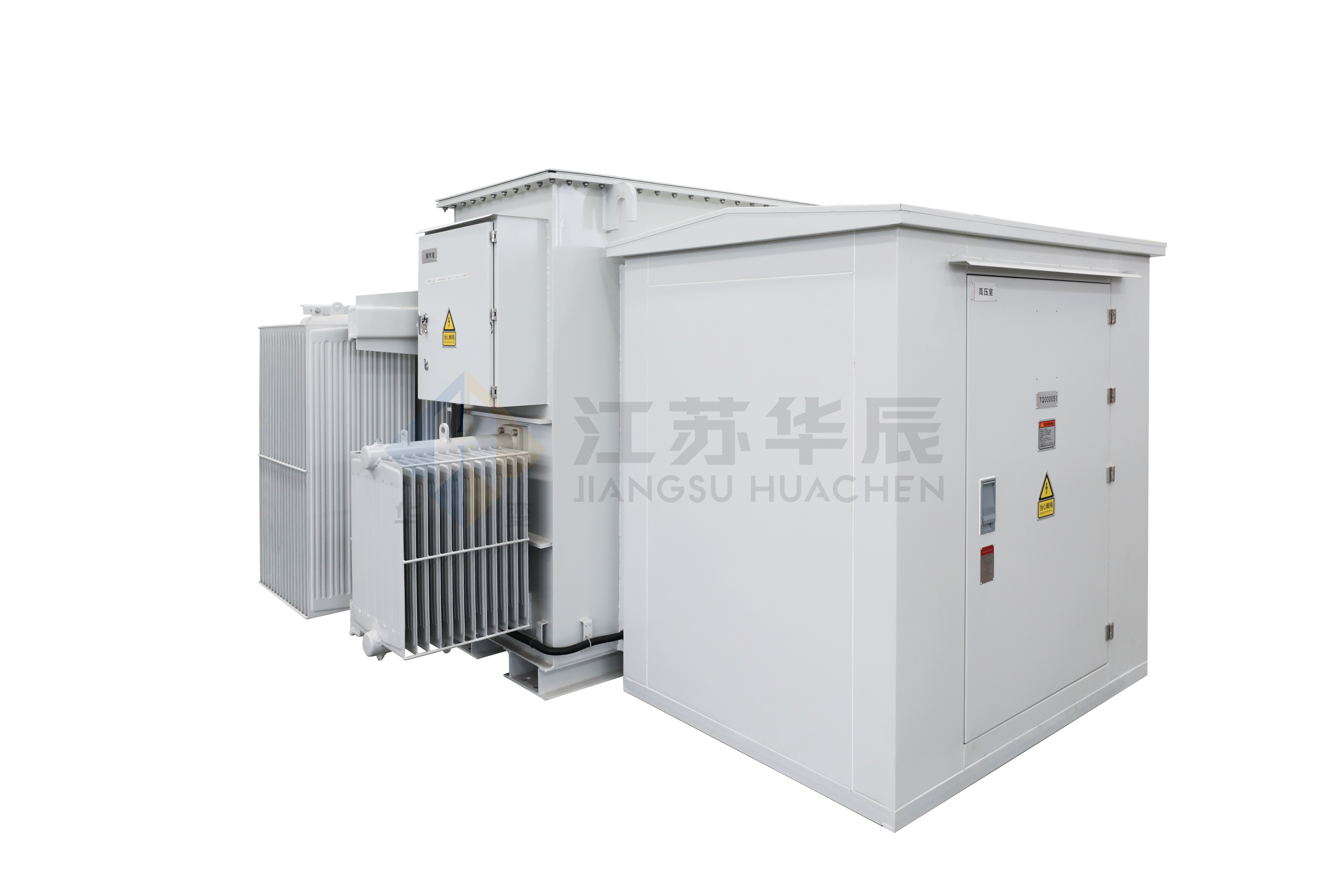

The ZGS new energy combined transformer is an all-in-one power distribution assembly that integrates power receiving, power feeding, and core transformer components into a single compact unit. This fully sealed solution houses the transformer body, high-voltage load switch, and protective fuses inside a unified oil tank, paired with a complete set of monitoring components including oil temperature gauge, oil level gauge, pressure gauge, pressure relief valve, and oil drain valve for real-time operational status tracking. With a capacity range of 50-5500kVA and a voltage rating up to 40.5kV, this transformer complies with the latest national energy efficiency standards, delivering ultra-low loss and exceptional energy-saving performance for renewable energy applications.
Unlike split-type power distribution systems, the ZGS wind solar combined transformer integrates all critical power components into one sealed enclosure, reducing floor space by up to 60% and simplifying on-site installation for fast project deployment.
Engineered to meet the latest mandatory energy efficiency regulations, this unit minimizes no-load and load losses, cutting long-term operational energy costs and ensuring full compliance with grid connection requirements for renewable energy projects.
The built-in multi-parameter monitoring system and full set of safety protection devices deliver 24/7 real-time oversight, mitigating operational risks and reducing unplanned downtime for remote renewable energy installations.
The fully sealed oil tank design isolates internal components from moisture, dust, and corrosive elements, ensuring stable operation in extreme onshore and offshore environmental conditions.
Parameter | Specification Range |
|---|---|
Core Product Model | ZGS New Energy Combined Transformer |
Rated Capacity | 50-5500kVA |
Maximum Voltage Rating | 40.5kV |
Core Structure | Fully sealed integrated oil-immersed type |
Standard Compliance | Latest national energy efficiency standards |
Core Protection Components | High-voltage load switch, protective fuses, pressure relief valve |
Monitoring Accessories | Oil temperature gauge, oil level gauge, pressure gauge, oil drain valve |
Product Model | Rated Capacity (kVA) | Vector Group | High Voltage (kV) | Tapping Range | Low Voltage (kV) | Core & Winding Weight (kg) | Oil Weight (kg) | Total Weight (kg) | Short-Circuit Impedance (%) |
|---|---|---|---|---|---|---|---|---|---|
ZGS20-3300 | 3300 | Dy11 | 37 | ±2×2.5% | 0.8 | 3365 | 1790 | 7450 | 7.0 |
ZGS20-3900 | 3900 | Dy11 | 37 | ±2×2.5% | 0.8 | 4100 | 1950 | 8730 | 7.0 |
ZGS18-2000 | 2000 | Dy11 | 37 | ±2×2.5% | 0.8 | 2435 | 1415 | 5700 | 6.5 |
ZGS18-2500 | 2500 | Dy11 | 37 | ±2×2.5% | 0.8 | 3015 | 1464 | 6390 | 6.5 |
This 40.5kV compact renewable energy transformer is purpose-built for global renewable energy power generation scenarios, including onshore photovoltaic power plants, fishery-solar hybrid projects, agriculture-solar complementary projects, offshore photovoltaic farms, and onshore & offshore wind power plants. It is also suitable for grid-connected distributed renewable energy generation projects.
We offer flexible customization to meet unique project requirements, including tailored rated capacity and voltage grade configurations, upgraded environmental protection and anti-corrosion designs for offshore applications, extended monitoring system functions, custom protection component configurations, and special enclosure designs for extreme climate conditions.
Every ZGS integrated renewable energy transformer undergoes strict full-inspection testing before delivery to ensure full compliance with national standards and design specifications. We provide global technical support, on-site installation guidance, regular maintenance services, and long-term spare parts supply to ensure stable full-lifecycle operation of your equipment.
The maximum voltage rating of this series is 40.5kV, covering the vast majority of medium-voltage renewable energy grid connection requirements.
Yes, we offer customized anti-corrosion and reinforced sealing configurations specifically designed for the harsh marine environment of offshore renewable energy projects.
The rated capacity range of this series is 50-5500kVA, which can be customized to match the scale of your renewable energy project.
Yes, the ZGS new energy combined transformer fully complies with the latest national energy efficiency standards, with ultra-low loss performance to support energy-saving and emission reduction goals.
