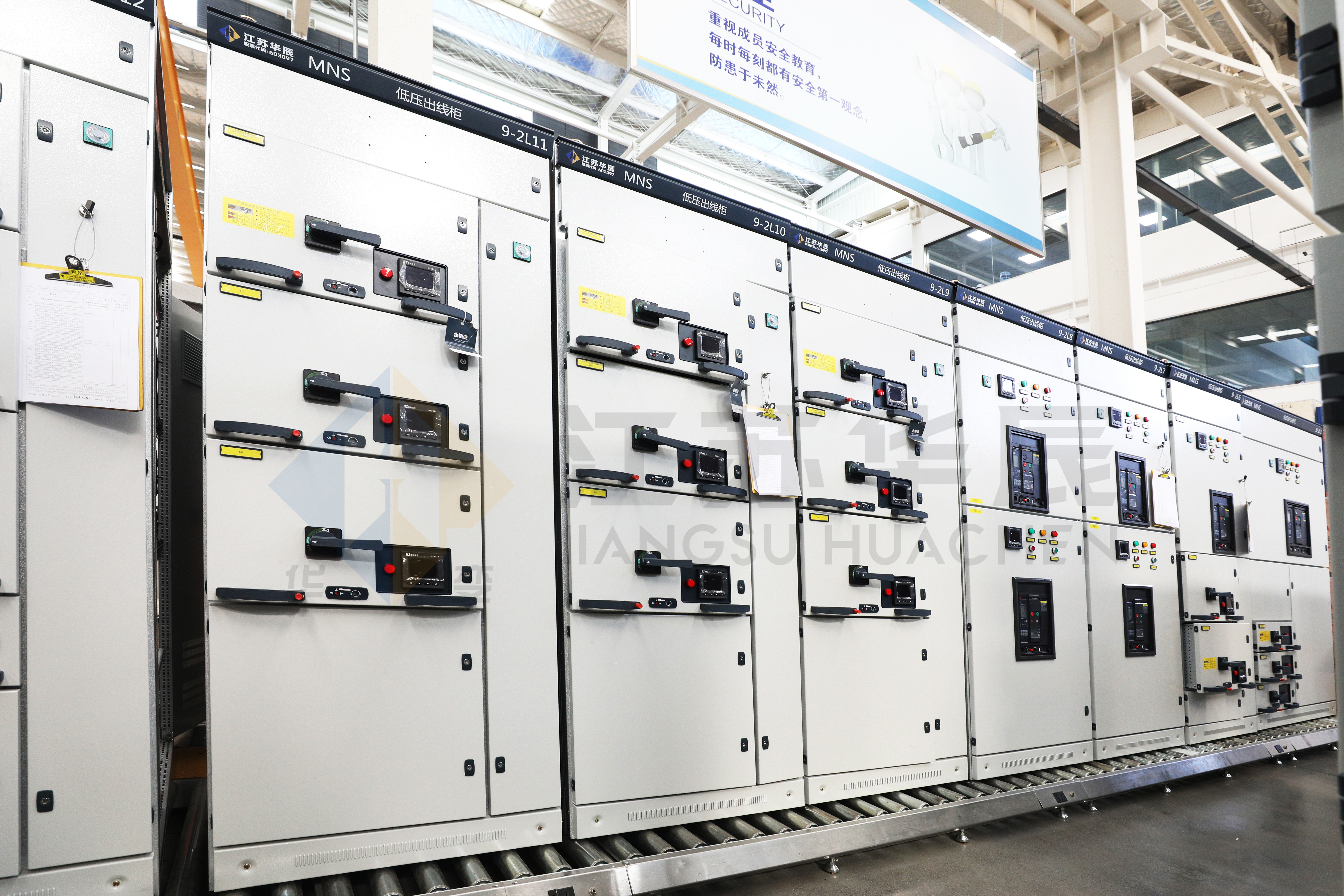

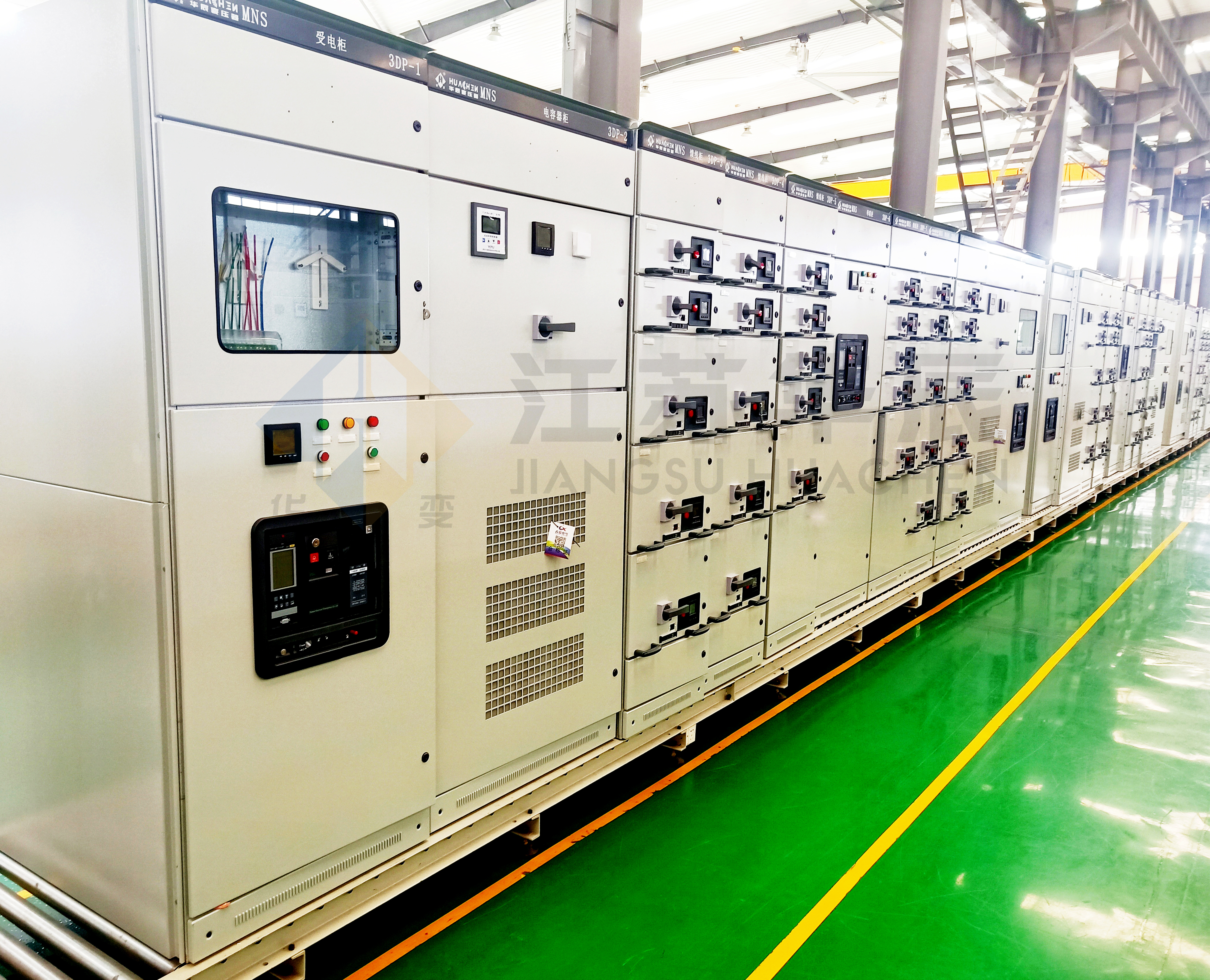

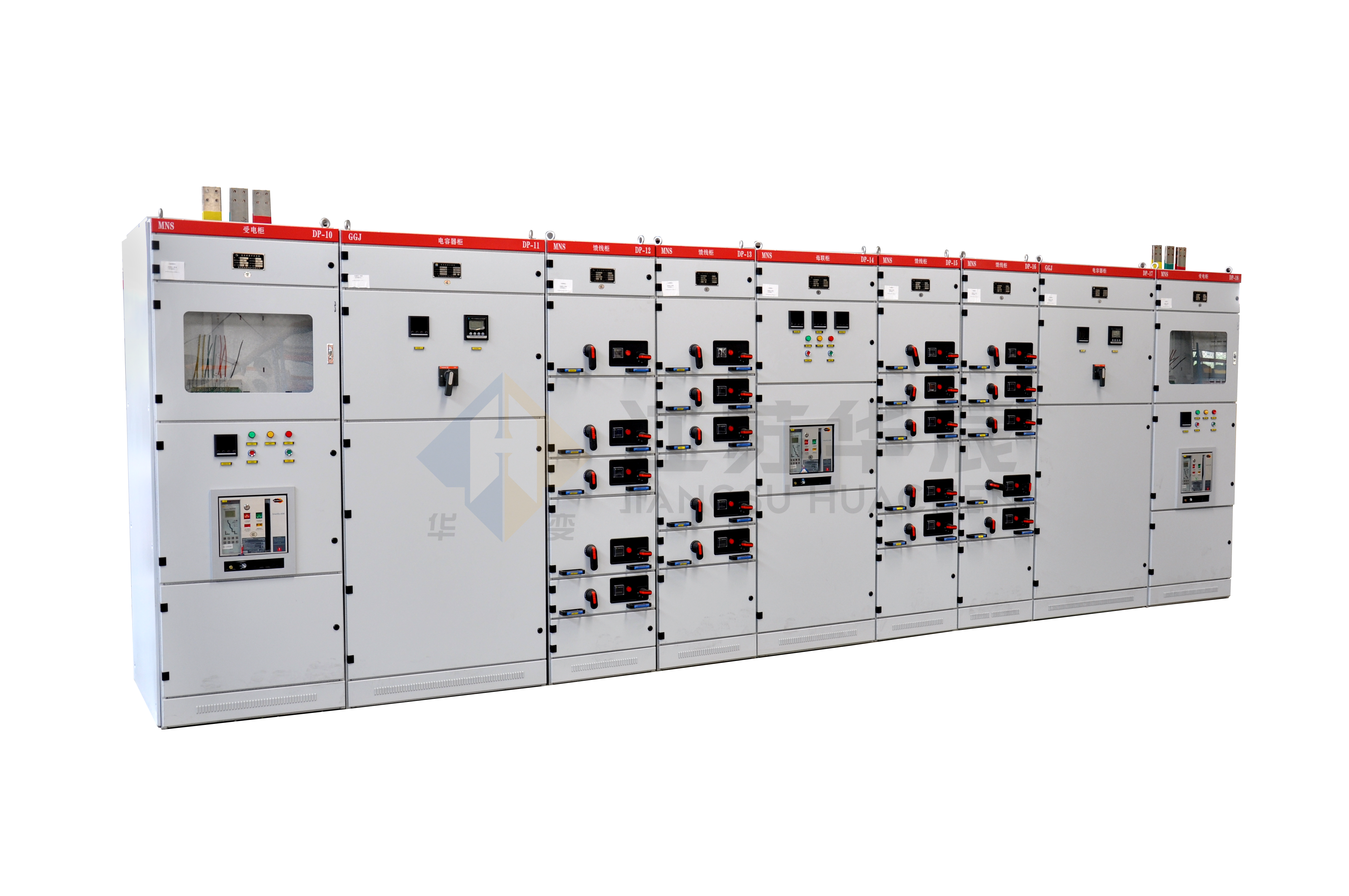

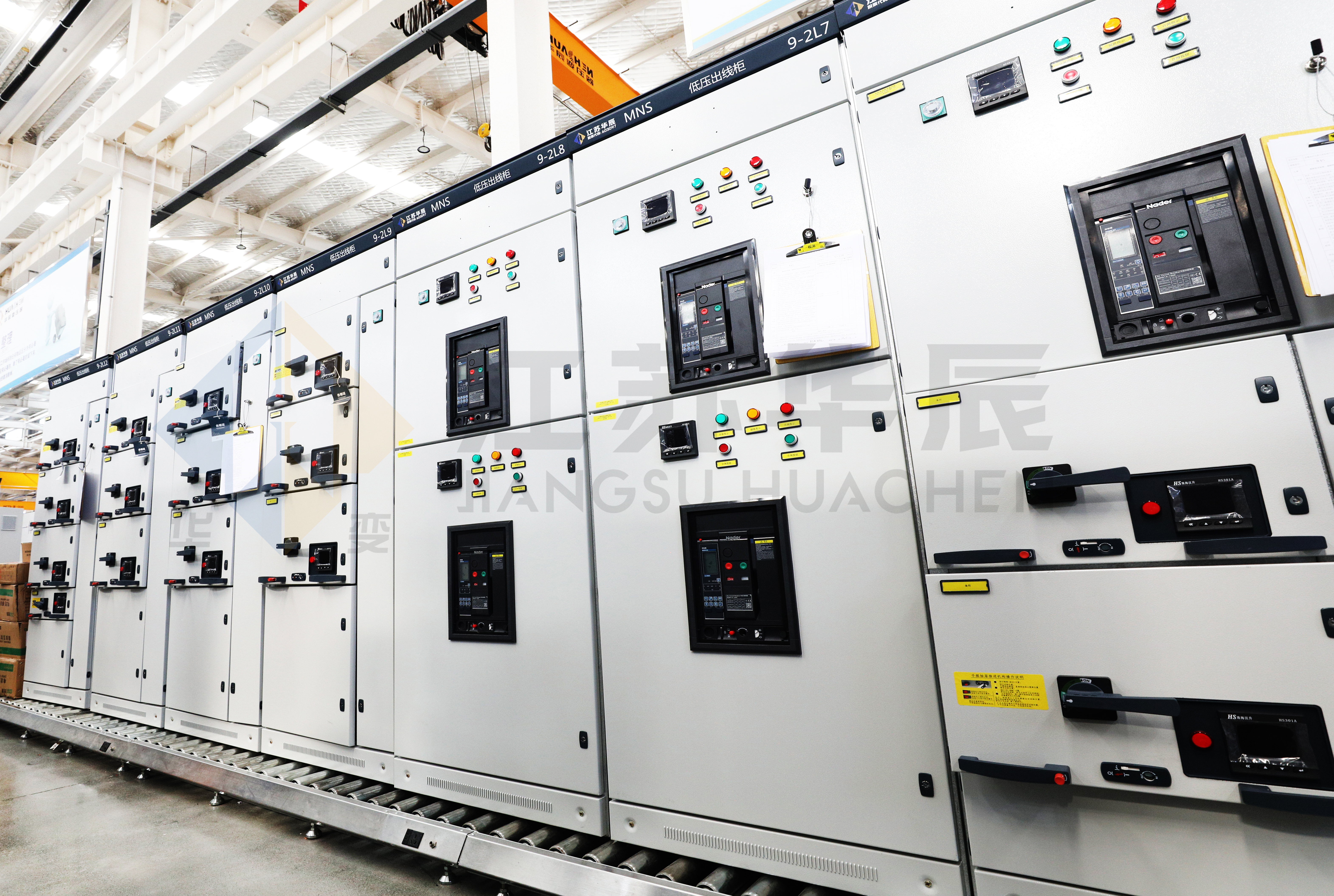

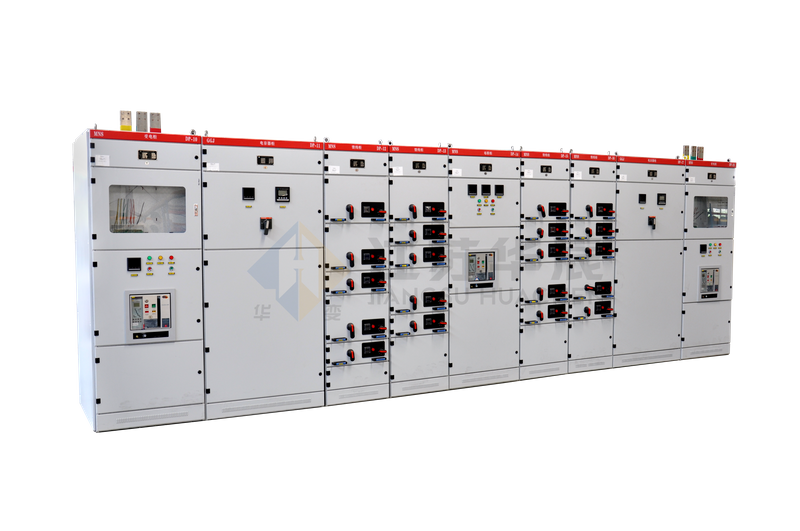

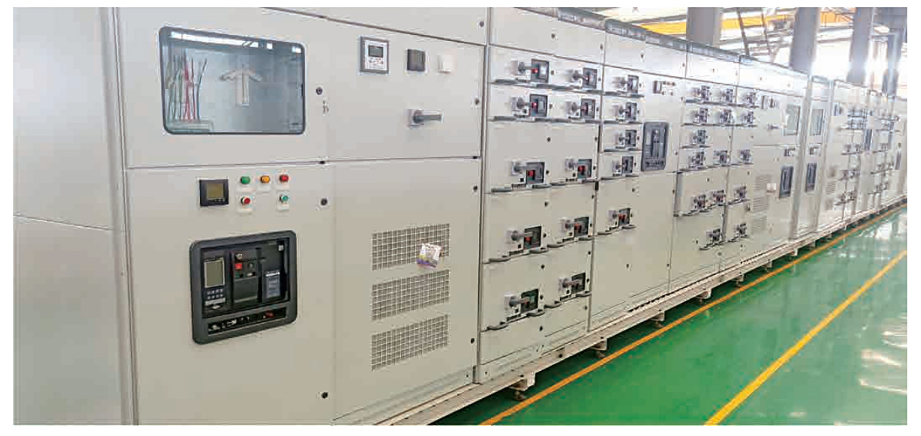

Our MNS low voltage complete switchgear is a robust, fully customizable low voltage distribution system engineered for AC 50(60)Hz power networks with a rated operating voltage up to 660V. As a versatile power control solution, it is purpose-built to meet the rigorous demands of modern power systems, providing centralized and precise control for power generation, transmission, distribution, electrical energy conversion, and end-use energy consumption equipment. The system integrates advanced structural design with high-performance components, delivering exceptional stability and safety for continuous operation in diverse low voltage distribution scenarios.
The core MNS low voltage switchgear is designed for AC 50(60)Hz power systems, with a rated operating voltage range of 220V to 660V, fully adapting to mainstream low voltage distribution networks worldwide. The modular design allows for flexible current rating configuration to match specific project load requirements.
The system features a fully modular cabinet frame structure and drawer units, which can be freely combined to form hundreds of different technical solutions based on project-specific power distribution needs. Each drawer unit is equipped with high-strength flame-retardant engineering plastic components, ensuring independent functional partitioning and reliable electrical isolation between units. The drawer units boast excellent interchangeability, with uniform interface design that supports rapid replacement and on-site adjustment.
The adoption of high-strength flame-retardant engineering plastic components significantly improves the equipment’s insulation and fire resistance, effectively reducing the risk of electrical faults and fire hazards. The fully enclosed drawer structure enhances personal protection during operation and maintenance, minimizing the risk of electric shock for on-site personnel.
The MNS low voltage withdrawable switchgear drawer units feature a compact footprint, high functional integration, and superior interchangeability. This design allows for rapid fault diagnosis and component replacement, cutting down equipment downtime by more than 60% compared to traditional fixed-type switchgear. The reliable contact mechanism ensures stable electrical connection even under long-term full-load operation, reducing unplanned maintenance and overall project lifecycle costs.
Our MNS low voltage complete switchgear is designed and manufactured in strict accordance with global and domestic industry standards, ensuring full compliance for both local and international projects. It meets the requirements of GB7251-1 Low-voltage switchgear and controlgear assemblies, JB/T9661 Low-voltage withdrawable switchgear assemblies, and the international standard IEC 439 Low-voltage switchgear and controlgear assemblies. All products undergo rigorous factory testing before delivery, with complete certification documentation to support project approval and compliance audits.
The MNS low voltage power distribution equipment is suitable for a wide range of low voltage power control scenarios across multiple sectors, including utility power generation and transmission systems, industrial manufacturing facilities, urban infrastructure construction, commercial complexes, renewable energy grid connection projects, and water treatment engineering systems.
Our MNS low voltage complete switchgear supports a maximum rated operating voltage of 660V for AC 50(60)Hz power systems, fully adapting to low voltage distribution networks with different voltage grades worldwide.
Yes. The system supports fully customized cabinet frame structure and drawer unit configurations, with hundreds of available technical solutions to match unique power distribution, control, and protection needs of different projects.
The MNS series fully complies with the international standard IEC 439, as well as relevant Chinese national and industry standards, making it suitable for both domestic and global engineering projects.
