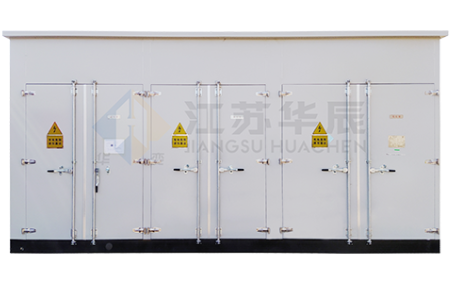

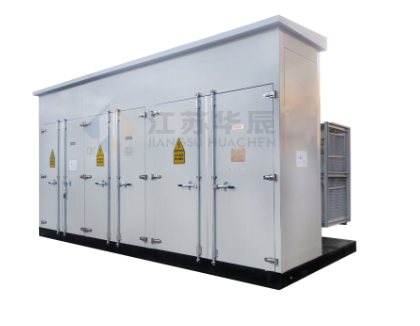

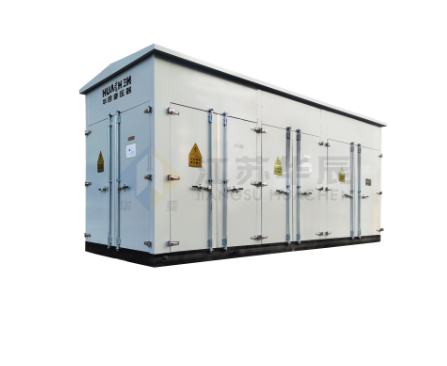

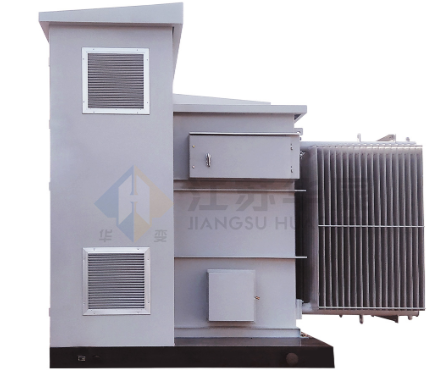

New Energy Box-type Wind Power Substation

Key Product Features

1. Compact Layout & Superior Heat Dissipation

Space Efficiency: The integrated structure drastically reduces on-site footprint compared to conventional substations.

External Radiators: The transformer’s radiators are mounted externally, delivering enhanced heat dissipation and enabling continuous operation under high-load conditions.

2. Advanced Transformer Technology

New Generation Design: Utilizes cutting-edge transformer technology, offering optimized structural design, high operational safety, and long-term reliability.

Insulation Optimization: The transformer oil serves as the insulation medium for 10kV/35kV high-voltage components, significantly reducing safety clearances and enabling a more compact design.

3. Hermetic Sealing & Enhanced Reliability

Fully Sealed Oil Tank: The hermetically sealed oil tank design completely isolates the insulating oil from the atmosphere, minimizing oxidation and moisture ingress.

Extended Service Life: This drastically improves system stability, reliability, and safety, while the plate-type radiators allow for easy disassembly and simplified maintenance.

4. Robust Environmental Resistance

Special Surface Treatment: The enclosure undergoes a shot blasting process, providing excellent anti-corrosion and anti-UV properties, effectively resisting sandstorm erosion in harsh environments.

5. Advanced Low-Voltage Protection

Intelligent Switchgear: The low-voltage side is equipped with the latest domestic intelligent circuit breakers and molded case air switches, offering high breaking capacity and superior protection performance.

Comprehensive Protection: Ensures reliable overcurrent, short-circuit, and earth fault protection for the entire system.

6. Remote Monitoring & Smart Operation

Built-in Communication Interfaces: The oil tank can be fitted with pressure gauges and thermometers with communication ports, enabling real-time condition monitoring.

Remote Control: Load switches can be equipped with travel switches, supporting remote monitoring, operation, and maintenance—critical for unmanned renewable energy facilities.

7. High Ingress Protection (IP Rating)

Full Sealed Design: The enclosure features a fully sealed structure, meeting an IP54 rating for the high-voltage and low-voltage compartments and an IP68 rating for the transformer body.

Rugged Durability: Ensures reliable operation in harsh environments including dust, heavy rain, and salt spray.

Quality Assurance

Picture Example
