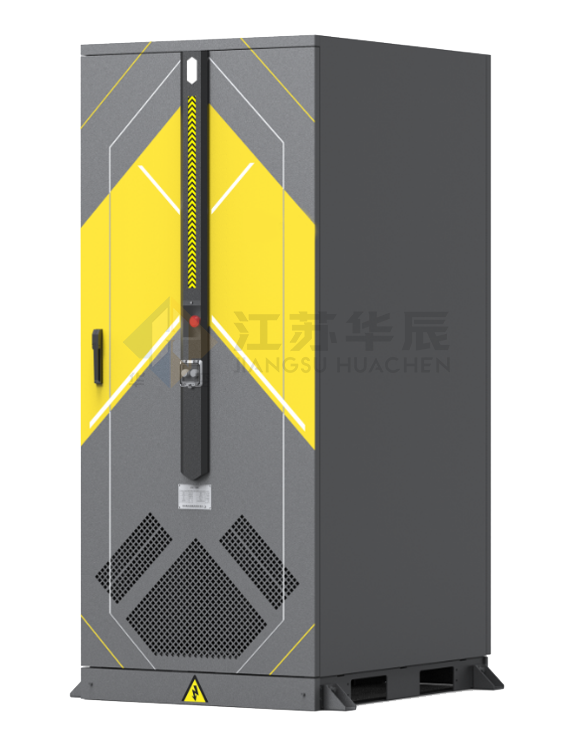

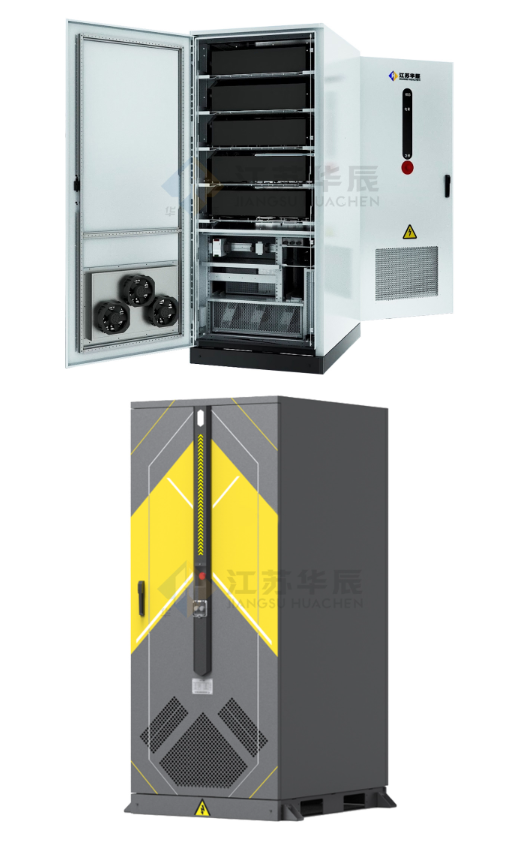

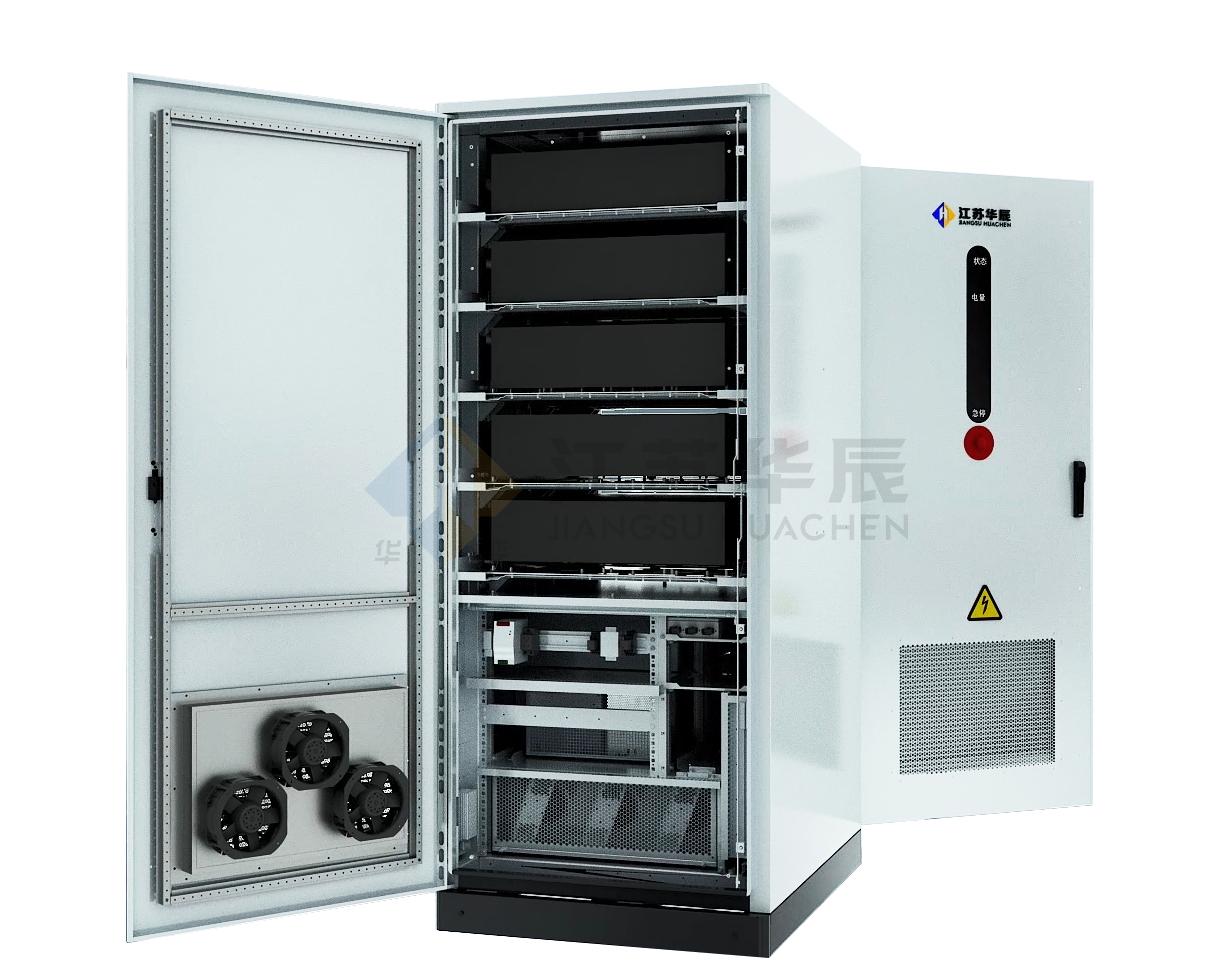

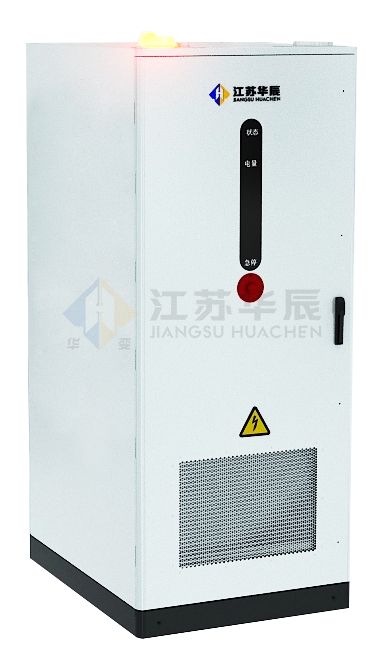

Engineered by Jiangsu Huachen, the ESS3-100-215 full liquid-cooled energy storage integrated cabinet is an innovative, highly customizable energy storage solution designed for industrial and commercial operators with dynamic load and capacity needs. This 100kW system features an advanced air-liquid isomorphic integrated design, supporting flexible capacity configurations of 215kWh, 232kWh, 254kWh, and 261kWh to match diverse project requirements. It fully integrates the modular battery system, high-precision BMS, bidirectional PCS, intelligent EMS, and multi-stage fire safety system into a single compact cabinet, with flexible deployment capability. The scalable 100kW full liquid-cooled energy storage system delivers core functions including peak shaving and valley filling, demand management, dynamic capacity expansion, and power demand response, adapting to complex and variable energy storage application scenarios for enterprise clients.
Many industrial and commercial facilities face variable load demands, and fixed-capacity energy storage systems often lead to either insufficient power supply during peak loads or idle capacity and wasted investment during low-load periods. Our ESS3-100-215 flexible capacity energy storage cabinet supports 4 optional capacity configurations under the 100kW power platform, enabling precise capacity matching based on the actual load curve of the facility. This eliminates idle capacity waste, maximizes the return on investment, and adapts to the changing energy needs of enterprises at different development stages.
Traditional energy storage systems use separate air cooling or liquid cooling designs, making it difficult to adjust the thermal management solution according to environmental changes, with high upgrading costs and low system efficiency in harsh conditions. The system’s innovative air-liquid isomorphic design realizes full liquid cooling thermal management with universal structure compatibility, maintaining uniform battery temperature within ±1.5℃ across all capacity configurations. It adapts to extreme temperature environments from -30℃ to 55℃, improving system energy efficiency by 15% compared to traditional cooling solutions, with no need for structural changes during subsequent capacity upgrades.
Enterprises with expanding production or business scale often face difficulties in expanding the capacity of fixed energy storage systems, with compatibility issues between new and old equipment leading to unstable system operation. The ESS3-100-215 air-liquid isomorphic energy storage system adopts a modular design with consistent interface standards for all capacity configurations, supporting seamless parallel expansion and plug-and-play capacity upgrades. It avoids compatibility risks between different systems, reduces expansion costs, and meets the long-term growing energy needs of enterprise clients.
Model: ESS3
Category | Item | Parameter |
|---|---|---|
AC Side Parameters | Grid Voltage | 400Vac |
Connection Mode | Three-phase Four-wire | |
Rated AC Power | 100kW | |
Rated AC Current | 150A | |
Rated Grid Frequency | 50/60Hz | |
Adjustable Power Factor Range | 1 (leading) ~ 1 (lagging) | |
DC Side Parameters | Battery Type | LFP 280Ah |
Rated Battery Capacity (@BOL) | 215kWh@25℃/100kW | |
Rated DC Voltage | 768V | |
DC Voltage Range | 600~876V | |
Rated Charge-Discharge Rate | 0.5C | |
Maximum DC Current | 160A |
Item | Parameter |
|---|---|
Isolation Method | Non-isolated |
Dimensions (WHD) | 1000×2400×1300mm |
Weight | Approx. 2500kg |
Operating Temperature | -20℃~+50℃ |
System Lifespan | 6000 cycles@25℃, 0.5CP |
Altitude | Below 2000m (derating required if exceeded) |
Maximum Charge-Discharge Efficiency | ≥87% |
Depth of Discharge (DOD) | ≤90%DOD |
Battery Temperature Control Method | Liquid Cooling Heat Dissipation |
Noise | ≤75dB |
IP Protection Grade | IP55 |
Fire Protection System | Perfluorohexanone Fire Suppression + Gas/Smoke/Temperature Detection |
Innovative Air-Liquid Isomorphic Full Liquid Cooling Design: Industry-leading air-liquid isomorphic structure ensures high-efficiency full liquid cooling thermal management across all capacity configurations, with excellent temperature uniformity, extending battery service life by over 40% and reducing cooling energy consumption.
Fully Flexible & Customizable Capacity Configuration: 4 optional capacity options under the 100kW power platform enable precise matching with actual load demands, eliminating idle investment and maximizing project ROI for industrial and commercial operators.
Seamless Scalability & Universal Compatibility: Standardized modular design and unified interface support parallel expansion of multiple cabinets, with no compatibility issues during capacity upgrades, adapting to the long-term development needs of enterprises.
Intelligent Customizable Energy Scheduling: The advanced EMS supports personalized energy management strategy setting based on facility load characteristics, grid tariff policies, and demand response signals, realizing intelligent, automated energy optimization and maximum cost savings.
The ESS3-100-215 customizable industrial energy storage cabinet is perfectly suited for scenarios with variable load demands and long-term expansion plans, including large-scale manufacturing facilities with fluctuating production lines, renewable energy (solar/wind) grid-connected projects, off-grid and grid-tied microgrid systems, large commercial facilities with highly variable peak demand, logistics parks with expanding scale, and industrial projects with clear future capacity upgrade needs. It is ideal for enterprise clients seeking a highly customizable, scalable energy storage solution.
Our ESS3-100-215 scalable full liquid-cooled energy storage system is manufactured in strict compliance with international top-tier industry standards, including IEC 62933, UL 9540, and CE certification requirements. Each configurable unit undergoes rigorous factory testing, including cycle life testing, extreme environment performance testing, parallel expansion compatibility testing, and multi-level safety protection testing, to ensure stable and reliable operation in complex application scenarios. We provide full life cycle quality assurance, personalized technical support, and customized after-sales service for global industrial and commercial clients.
Whether you need a tailored 100kW flexible capacity energy storage integrated cabinet with specific configuration, or a full-cycle energy management solution for your complex industrial and commercial project, our professional R&D and engineering team is here to provide end-to-end support.
