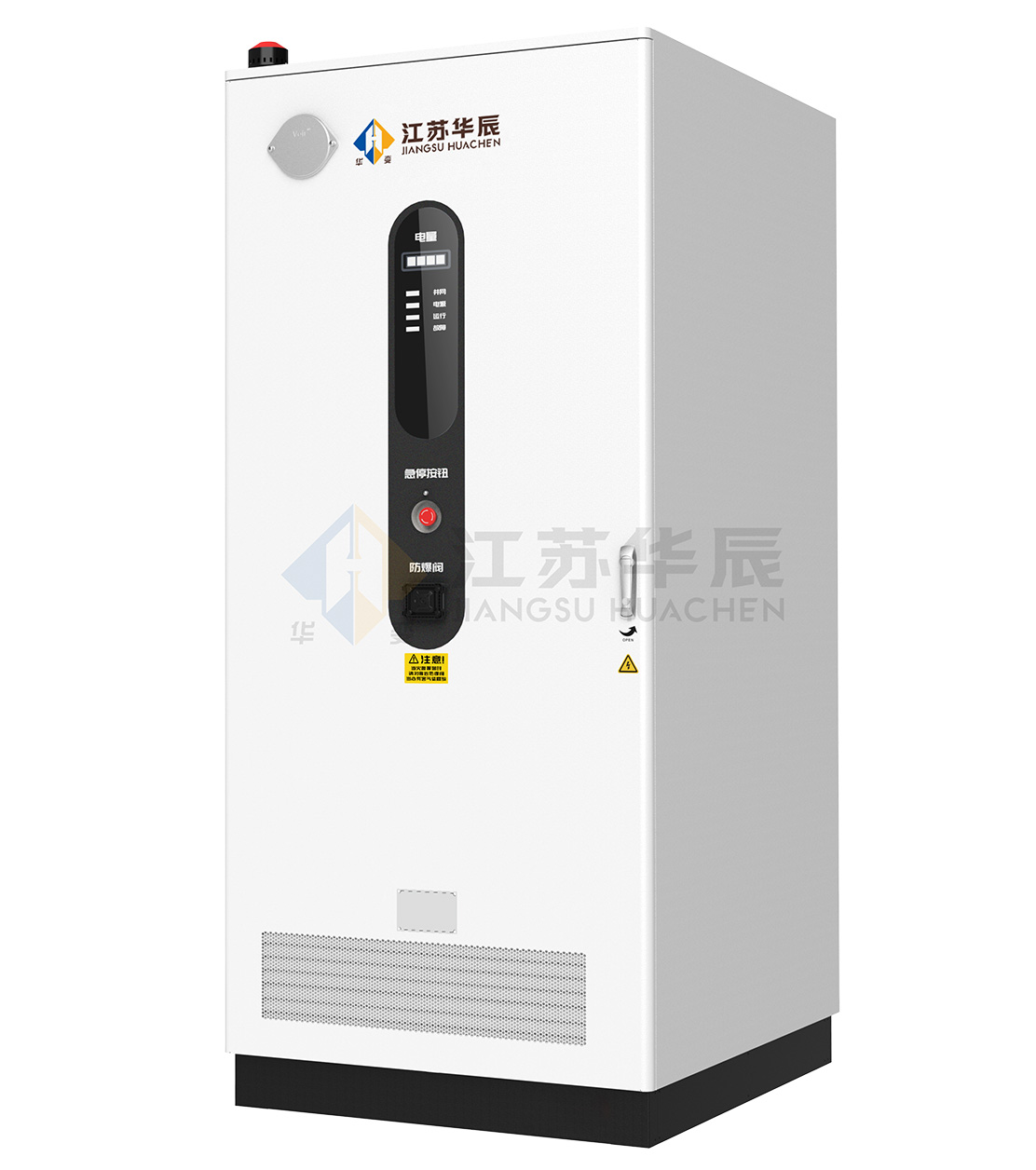

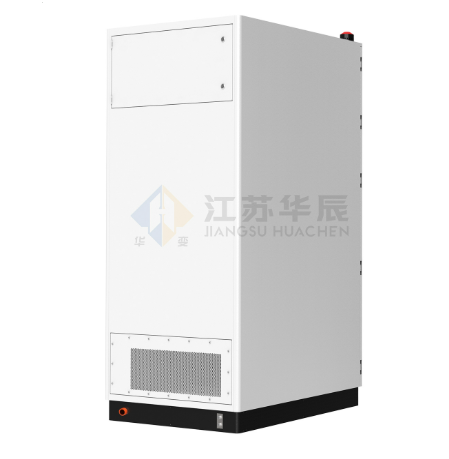

Developed by Jiangsu Huachen, the ESS2-100-215 liquid-cooled energy storage integrated cabinet is a highly integrated, all-in-one energy storage solution built for industrial and commercial energy management needs. This 100kW/215kWh system adopts an advanced integrated design concept, which fully integrates the battery system, BMS (Battery Management System), PCS (Power Conversion System), EMS (Energy Management System), and dedicated fire safety system into a single cabinet. With flexible deployment capability and complete grid support functions, this 100kW 215kWh integrated energy storage system delivers reliable performance for peak shaving and valley filling, demand management, dynamic capacity expansion, and power demand response, fully adapting to diverse energy storage application requirements for enterprise clients.
Traditional split-type energy storage systems require separate equipment layout, complex on-site wiring, and long construction cycles, leading to high land rental and labor costs for industrial and commercial projects. Our ESS2-100-215 energy storage integrated cabinet adopts a pre-integrated, factory-tested all-in-one design, eliminating the need for on-site assembly of core components. This reduces on-site construction time by over 80%, cuts land occupation by 60% compared to split systems, and significantly lowers upfront investment and installation costs for project operators.
Industrial and commercial facilities often face voltage fluctuations, peak demand penalties, and unstable grid connection performance with mismatched energy storage components. The system’s fully integrated EMS and PCS work in tandem with high-precision BMS, realizing real-time grid status monitoring, automatic load matching, and seamless grid connection. It effectively mitigates grid fluctuation risks, avoids peak demand charges, and ensures stable, compliant operation of the facility’s power system.
Decentralized energy storage systems require separate maintenance for each component, with low visibility of system status and high safety risks from uncoordinated protection mechanisms. The integrated design of the ESS2-100-215 liquid-cooled energy storage cabinet enables unified monitoring and one-click O&M of all core systems, with a multi-level built-in fire safety system that provides full-process protection from battery cell to cabinet level, minimizing safety hazards and reducing daily operation and maintenance workload by over 70%.
Model | HCESS1-100-215 |
|---|
AC Side Parameters | Value | DC Side Parameters | Value |
|---|---|---|---|
Grid Voltage | 400Vac | Battery Type | LFP 280Ah |
Connection Method | Three-phase Four-wire | Rated Battery Capacity (@BOL) | 215kWh @25°C/100kW |
Rated AC Power | 100kW | Rated DC Voltage | 768V |
Rated AC Current | 150A | DC Voltage Range | 600~876V |
Rated Grid Frequency | 50/60Hz | Rated Charge-Discharge Rate | 0.5C |
Adjustable Power Factor Range | 1 (leading) ~ 1 (lagging) | Maximum DC Current | 160A |
THDi (at Rated Power) | <3% | - | - |
System Parameters | Value |
|---|---|
Isolation Mode | Non-isolated |
Maximum Charge-Discharge Efficiency | ≥87% |
Dimensions (W×H×D) | 1350×2300×1300mm |
Depth of Discharge (DOD) | ≤90%DOD |
Weight | Approx. 2500kg |
Battery Temperature Control Mode | Liquid Cooling & Liquid Heating |
Operating Temperature | -15°C ~ 45°C |
Noise Level | ≤75dB |
System Service Life | 6000 cycles @25°C, 0.5CP |
IP Protection Rating | IP54 |
Altitude | Below 2000m (Derating required if exceeded) |
Fire Protection System | Perfluorohexanone Fire Suppression + Gas/Smoke/Temperature Detection |
Ultra-high Integration & Rapid Deployment: Factory pre-integration and full testing ensure plug-and-play operation, with extremely short on-site deployment time to meet fast project launch needs.
High-Efficiency Liquid Cooling Thermal Management: Advanced liquid cooling system maintains uniform battery temperature within ±2℃, extending battery cycle life by over 30% and improving system charge-discharge efficiency.
Smart Full-Link Energy Management: The integrated EMS realizes intelligent load scheduling, real-time energy data analysis, and automatic response to grid signals, maximizing energy cost savings for industrial and commercial operators.
All-Round Safety Protection: Multi-level safety design from cell to system, with dedicated fire suppression system, ensures stable and safe operation in harsh industrial and commercial environments.
The ESS2-100-215 commercial and industrial energy storage cabinet is ideal for a wide range of scenarios, including industrial parks, small and medium-sized manufacturing facilities, commercial complexes, small and medium data centers, retail chains, and distributed renewable energy matching projects. It is perfectly suited for enterprise clients with standardized energy management needs and clear peak-valley arbitrage requirements.
Our ESS2-100-215 integrated energy storage system is manufactured in strict accordance with international industry standards, including IEC 62619, UL 1973, and CE certification requirements. Each cabinet undergoes rigorous factory testing, including charge-discharge cycle testing, high and low temperature performance testing, and safety protection testing, to ensure long-term stable operation. We provide full life cycle quality management and technical support, delivering reliable, compliant energy storage solutions for global industrial and commercial clients.
Whether you need a standardized 100kW 215kWh energy storage integrated cabinet or a tailored energy management solution for your facility, our professional engineering team is ready to support you.
