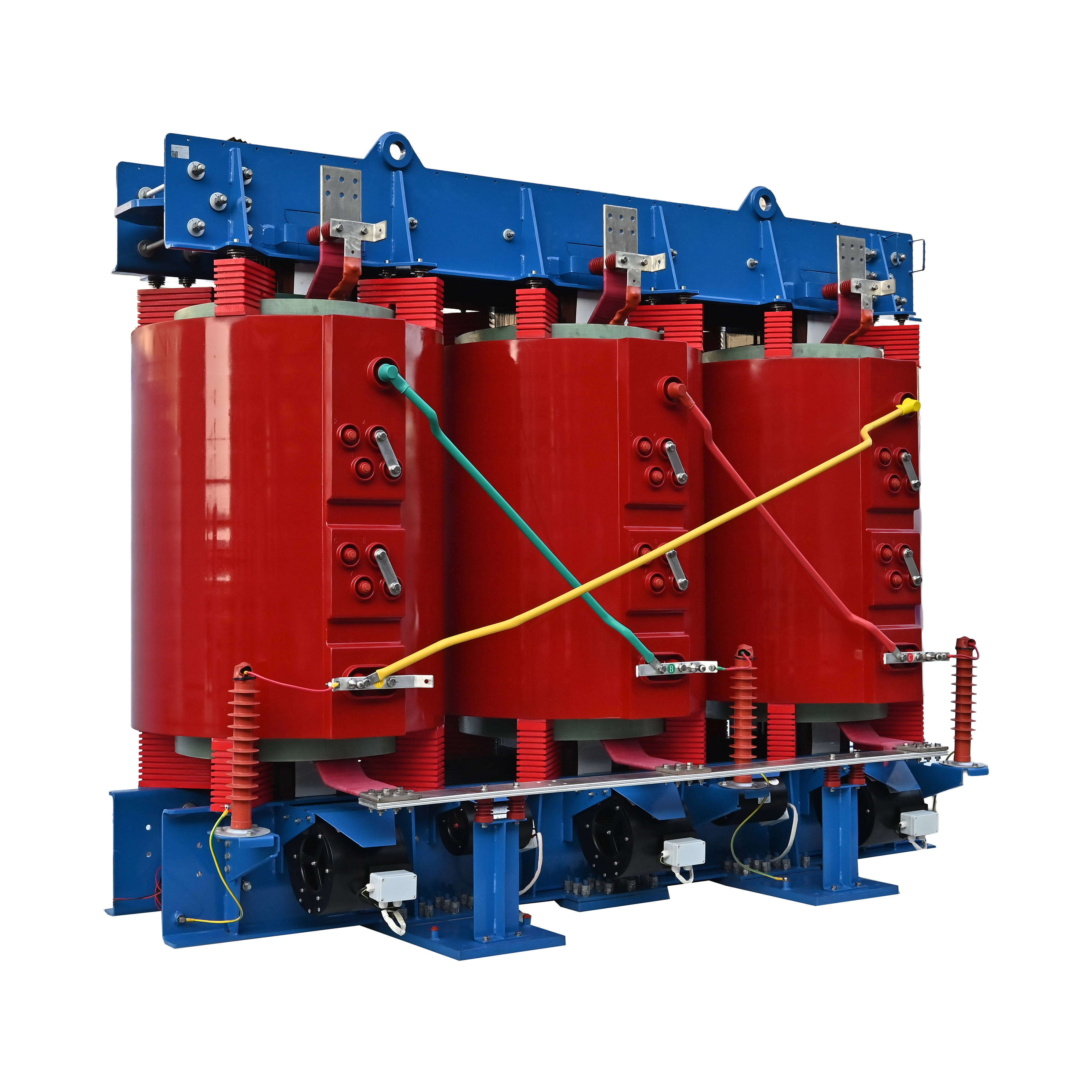

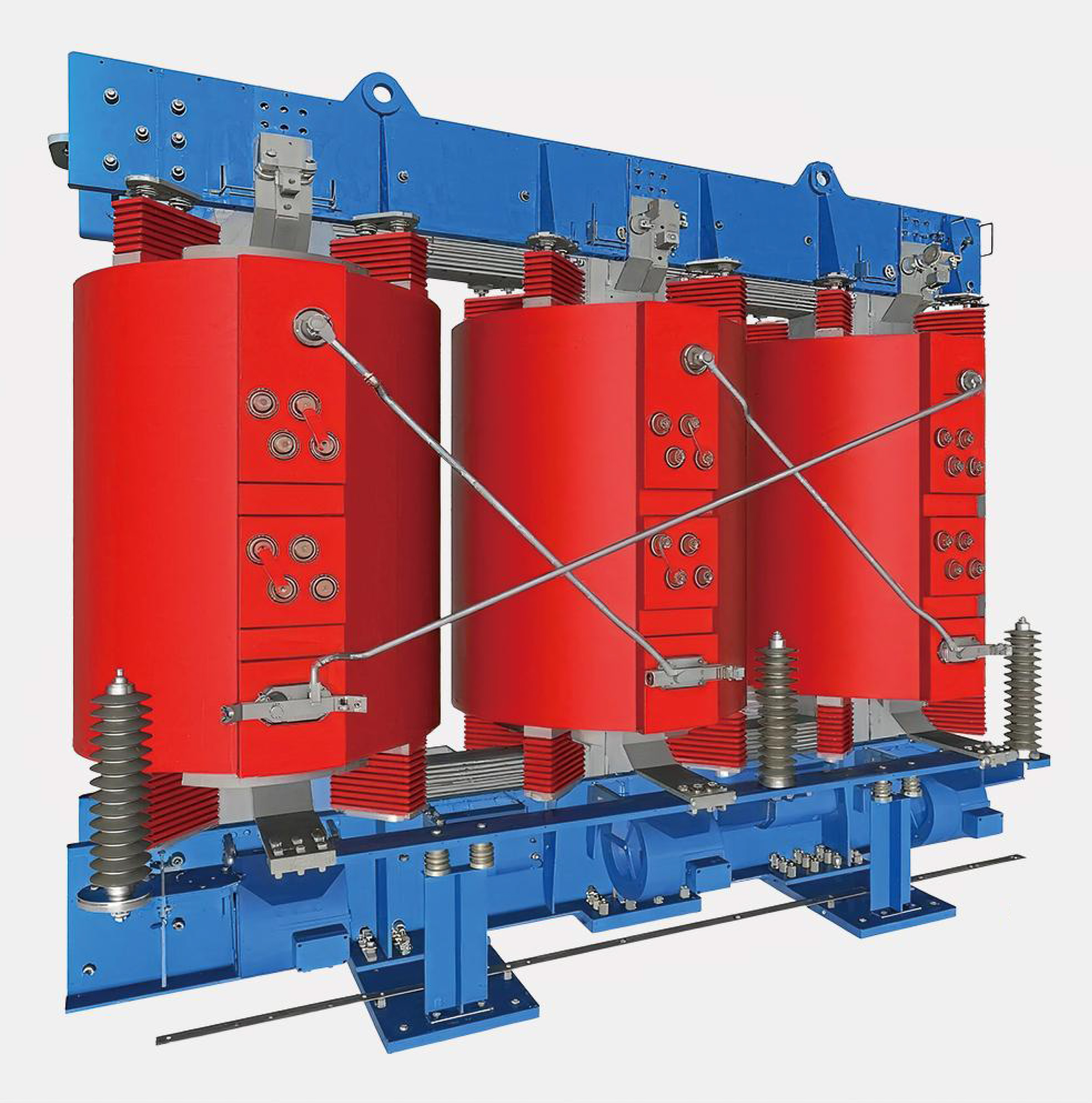

Nacelle Dry Type Transformer for Wind Power

Product Overview

The wind turbine nacelle mounted dry transformer is a critical component that steps up the voltage generated by wind turbines for grid transmission, while providing auxiliary power for nacelle systems. Unlike conventional transformers, our design is optimized for the compact, harsh operating conditions inside wind turbine nacelles. It combines robust mechanical construction, precision cooling and integrated protection features to ensure uninterrupted operation in both onshore and offshore wind farms, with a service life of over 25 years under normal operating conditions.

Key Advantages

Enhanced Low-Frequency Vibration Resistance

Continuous low-frequency vibration in wind turbine nacelles is a leading cause of transformer component failure and unplanned downtime. Our solution features reinforced structural components and a dedicated swing arm mounting system that securely attaches the transformer to the nacelle bulkhead. All designs are validated through finite element method (FEM) steady-state analysis to ensure superior vibration resistance, significantly reducing maintenance requirements and extending equipment lifespan.

Precision Cooling System for Extended Service Life

We utilize computational fluid dynamics (CFD) simulation to optimize the cooling system design, incorporating dedicated fan air ducts for precise airflow distribution. This advanced cooling technology ensures uniform temperature distribution across the transformer core and windings, resulting in lower operating temperatures. Reduced thermal stress directly translates to longer insulation life and fewer unexpected failures, maximizing your wind farm's energy output.

High Humidity Environment Adaptability

Coastal and high-altitude wind farms often face extreme humidity conditions that can cause electrical insulation degradation and creepage failures. Our transformers feature protective rings on high-voltage tap changers, which significantly increase the creepage distance. This design enhancement provides reliable insulation performance even in high-humidity environments, minimizing the risk of electrical faults and ensuring consistent operation.

Integrated 400V Power Supply Tap

Eliminate the need for separate auxiliary transformers with our integrated 400V internal power supply tap. This design allows direct power supply to all nacelle auxiliary systems from a single unit, simplifying electrical system architecture, reducing installation complexity and saving valuable nacelle space. It also lowers initial equipment costs and reduces potential points of failure.

Built-in Lightning Protection

Lightning strikes are a major threat to wind farm electrical systems. Our transformers come with integrated surge arresters on the high-voltage side, which effectively divert lightning-induced overvoltages to ground. This integrated protection safeguards the transformer and all downstream electrical equipment, reducing the risk of costly damage and downtime caused by lightning events.

Space-Saving Nacelle Mounted Design

By installing the transformer directly inside the wind turbine nacelle, you eliminate the need for separate transformer foundations and save valuable land resources. This compact design also reduces transmission line losses between the turbine generator and the transformer, improving overall energy efficiency and simplifying wind farm layout planning.

Technical Specifications

Applications

Onshore wind power plants

Offshore wind power plants

Megawatt-class wind turbine generators

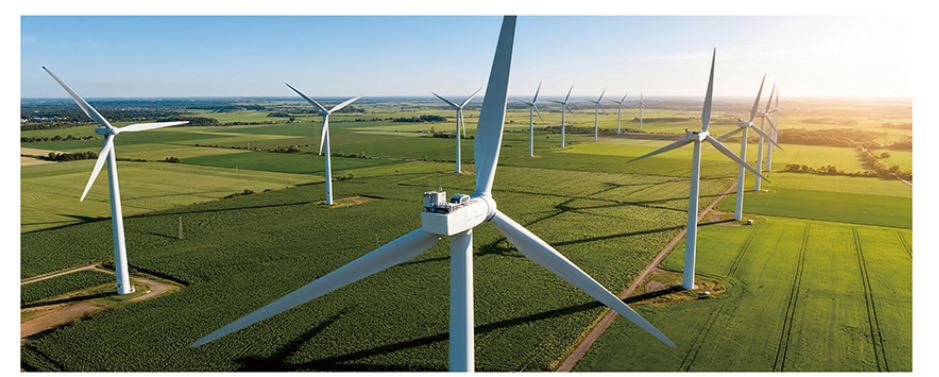

New wind farm construction projects

Existing wind farm equipment retrofits and upgrades

FAQ

What is a nacelle transformer used for in wind turbines?

A nacelle transformer steps up the low voltage generated by wind turbine generators to grid-compatible voltage levels and provides auxiliary power for nacelle systems such as yaw drives, pitch controls and lighting.

How does a dry type transformer perform in high humidity wind farm environments?

Our dry type transformers feature enhanced insulation design and protective rings on high-voltage tap changers, which increase creepage distance and provide reliable performance in high humidity conditions.

What are the benefits of integrated lightning protection in wind transformers?

Integrated surge arresters directly on the transformer high-voltage side provide immediate protection against lightning-induced overvoltages, reducing damage risk to the transformer and downstream equipment.
