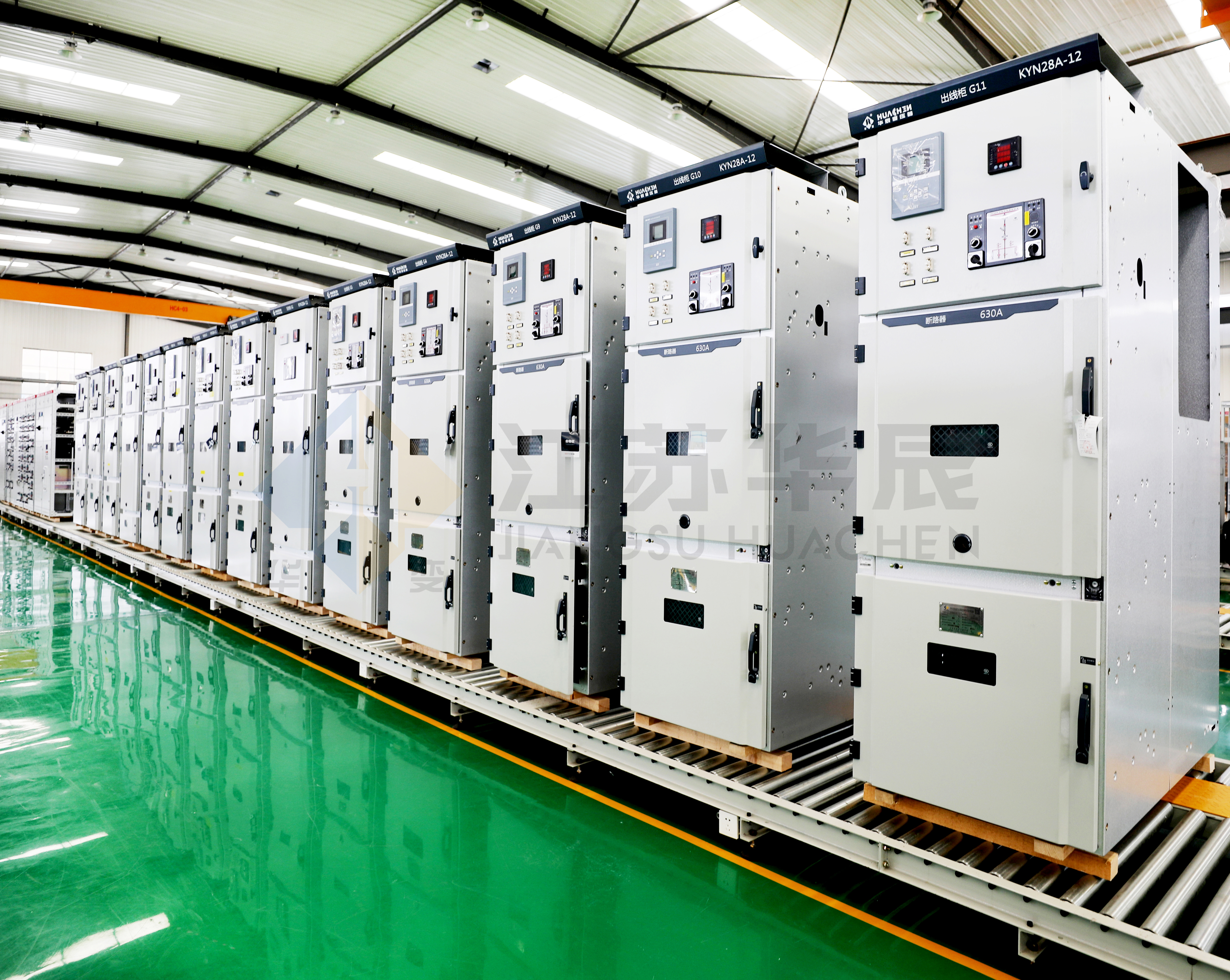

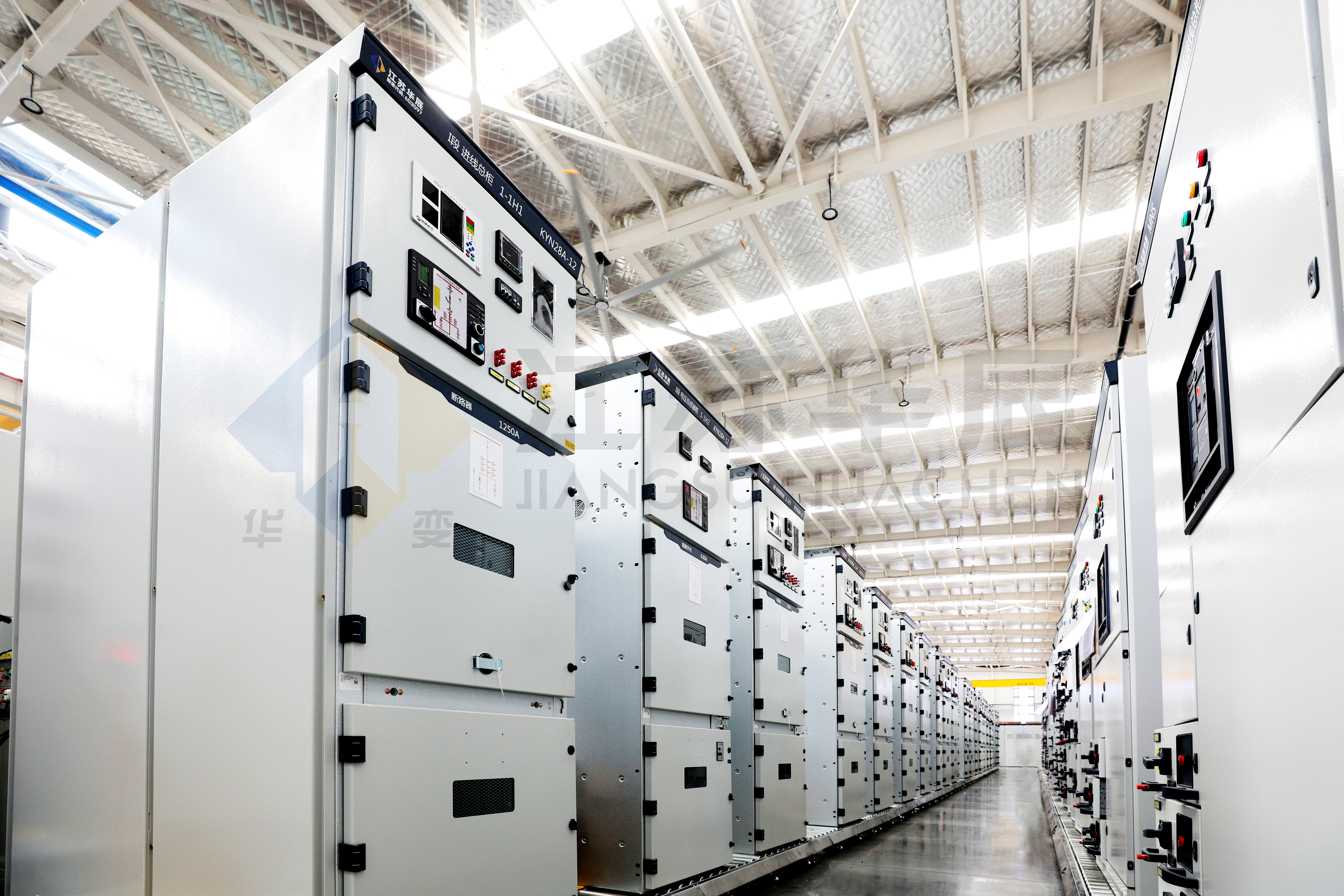

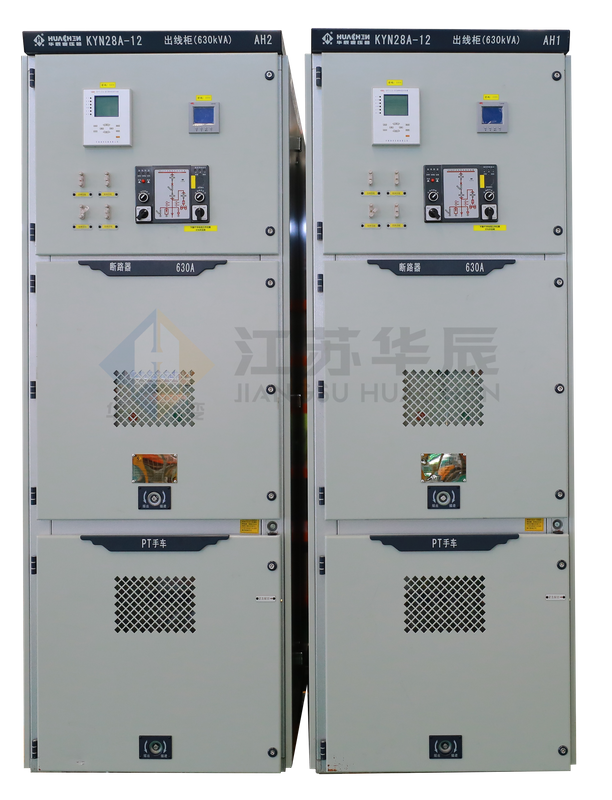

The KYN28A-12 12kV medium voltage (MV) switchgear is a fully enclosed indoor power distribution assembly, purpose-built for receiving and distributing electrical energy in medium voltage systems. It provides comprehensive circuit control, fault protection, and real-time operational monitoring, with a robust design that supports frequent operation in high-demand settings. Optimized for long-term reliability in mission-critical power infrastructure, it minimizes unplanned downtime and maximizes operational safety for industrial operators and utility providers.
The KYN28A-12 designation defines the equipment’s core specifications: K for metal-clad enclosed switchgear, Y for withdrawable design, N for indoor installation, 28A as the design serial number, and 12 for the 12kV rated voltage class.

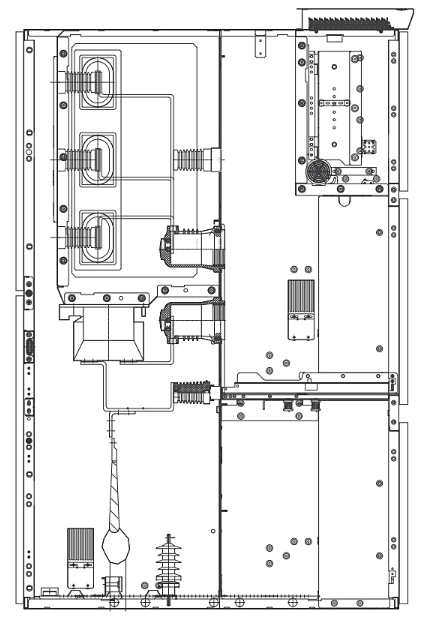

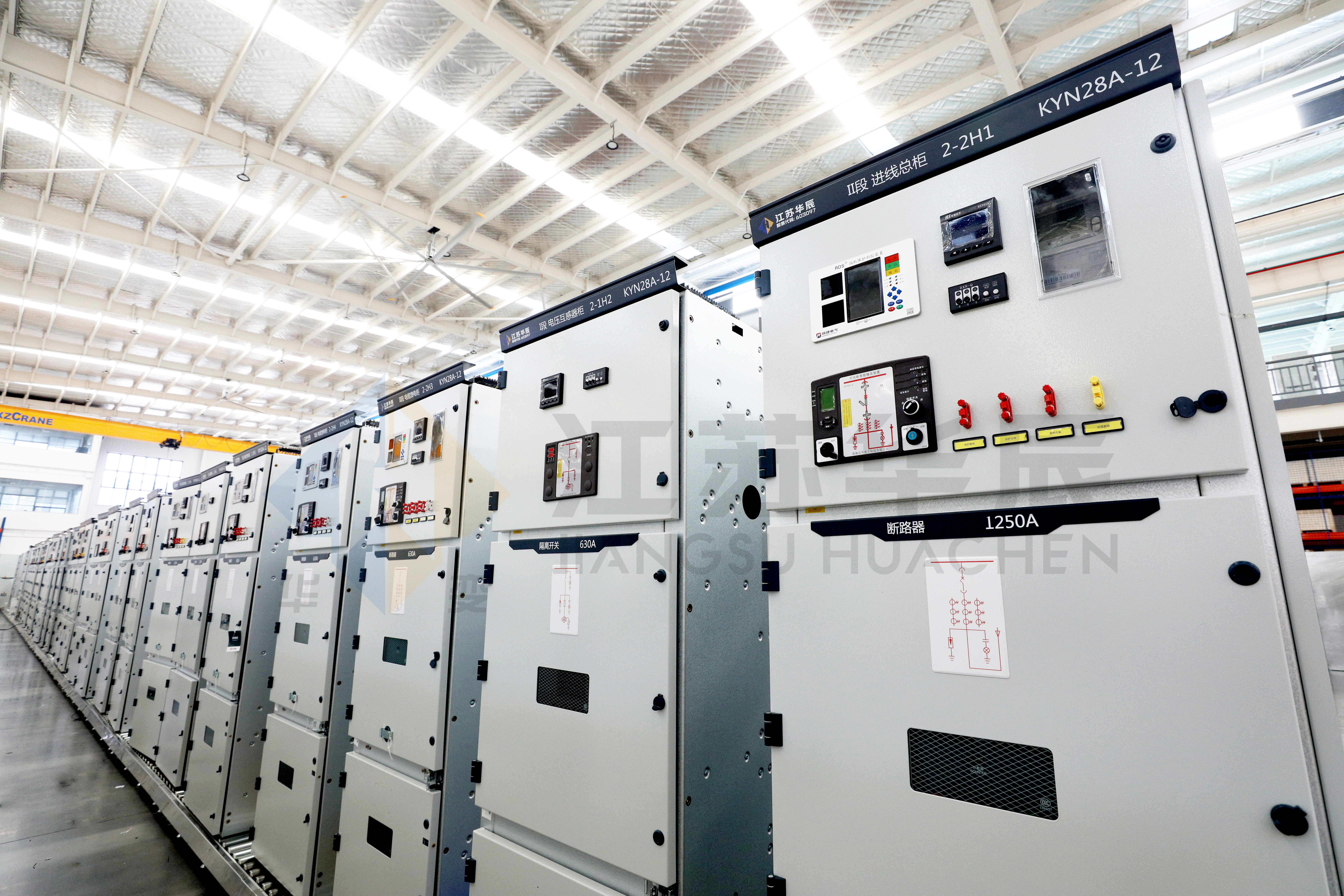

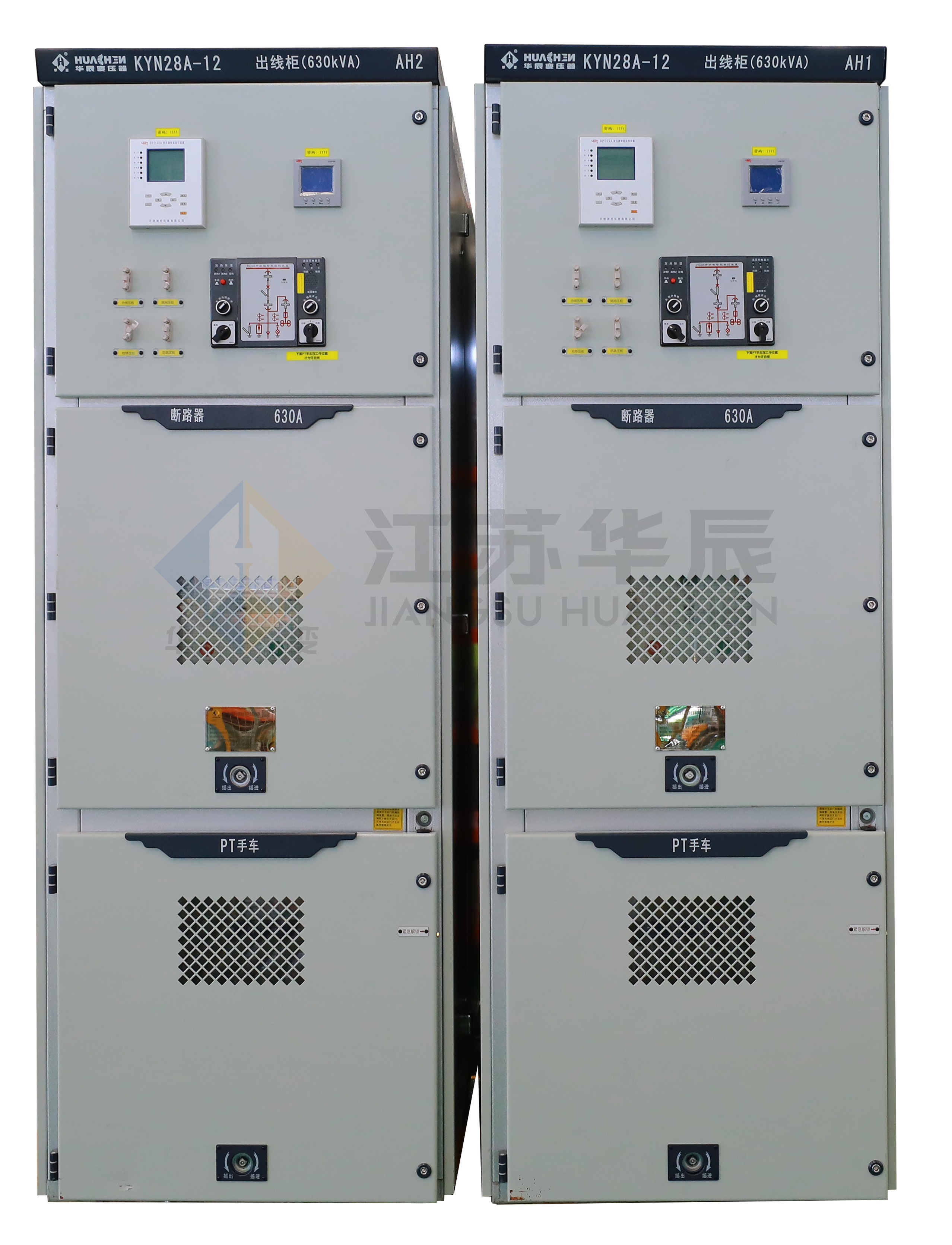

The switchgear consists of a cabinet body and withdrawable handcart assembly, with the cabinet fabricated from high-strength aluminum-zinc coated steel plate. It is divided into four isolated metal compartments: circuit breaker chamber, main busbar chamber, cable chamber, and relay & meter chamber. Compatible handcart types include circuit breaker, voltage transformer (PT), metering, and isolation handcarts, with full interchangeability for units of the same type.
Comprehensive Five-Prevention Safety Interlock: The reliable mechanical and electrical interlock system eliminates critical operational risks, preventing misoperation of circuit breakers, load-type handcart movement, closing with an earthed switch, earthing under live voltage, and unauthorized entry into live compartments, drastically reducing on-site safety hazards.
Wide Component Compatibility: Supports mainstream vacuum circuit breakers including ZN63A (VS1), VD4, ZN21, 3AH and VEP, as well as vacuum contactors and load switches, enabling flexible configuration for diverse project requirements.
Superior Environmental Adaptability: Optional heaters in the circuit breaker and cable chambers prevent condensation and corrosion, extending service life in harsh industrial environments. The enclosure achieves an IP4X protection rating, with IP2X protection when the breaker chamber door is open.
Enhanced Fault Safety: Independent pressure relief channels in the busbar and breaker chambers ensure rapid pressure discharge during short-circuit faults, protecting personnel and adjacent equipment.
Item | Unit | Standard Parameters |
|---|---|---|
Rated Voltage | kV | 3.6, 7.2, 12 |
Rated Frequency | Hz | 50 |
Rated Current (Breaker & Switchgear) | A | 630, 1250, 1600, 2000, 2500, 3150, 4000 |
Rated Short-Time Withstand Current (4s) | kA | 20, 25, 31.5, 40 |
Rated Peak Withstand Current | kA | 50, 63, 80, 100 |
Rated Short-Circuit Breaking Current | kA | 20, 25, 31.5, 40 |
Rated Short-Circuit Making Current (Peak) | kA | 50, 63, 80, 100 |
1min Power Frequency Withstand Voltage | kV | 24, 32, 42 |
Lightning Impulse Withstand Voltage (Peak, Phase-to-Earth) | kV | 40, 60, 75 |
Lightning Impulse Withstand Voltage (Peak, Break) | kV | 46, 70, 85 |
Protection Rating | - | IP4X (Enclosure); IP2X (Open Breaker Chamber) |
Our KYN28A-12 industrial power distribution switchgear is designed and manufactured in strict accordance with global and domestic industry standards:
GB 3906: 3.6-40.5kV AC metal-enclosed switchgear and control equipment
GB/T 11022: Common technical requirements for high-voltage switchgear and control equipment
IEC 298: AC metal-enclosed switchgear and control equipment for 1kV-72.5kV rated voltage
DL/T 404: Technical specifications for indoor AC high-voltage switchgear ordering

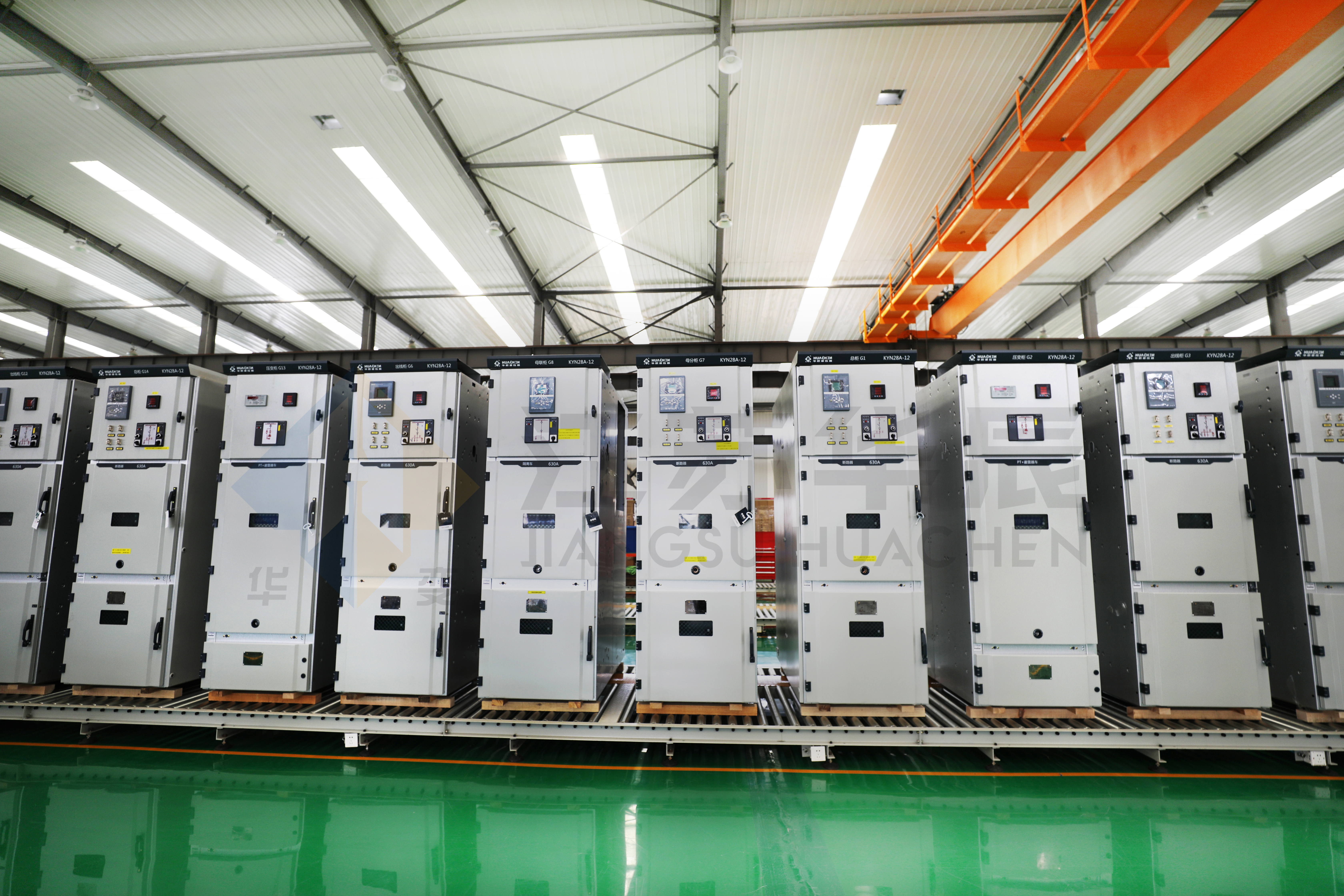

This 12kV withdrawable MV switchgear is widely deployed across core sectors: power generation plants, utility substations, industrial and mining enterprises, metallurgical facilities, and large-scale infrastructure projects. It is ideal for scenarios requiring frequent switching operations, delivering stable performance for both continuous base load operation and emergency load switching.
The unit is compatible with mainstream vacuum circuit breakers including ZN63A (VS1), VD4, ZN21, 3AH and VEP, as well as vacuum contactors, load switches and disconnectors for full customization.
Yes. The KYN28A-12 MV switchgear is specially engineered for frequent switching, with a heavy-duty mechanical design and high-durability components to maintain reliable performance in high-cycle industrial applications.
It features a full five-prevention interlock system, IP4X enclosure protection, independent fault pressure relief channels, and optional anti-condensation heaters to mitigate operational and environmental risks.
