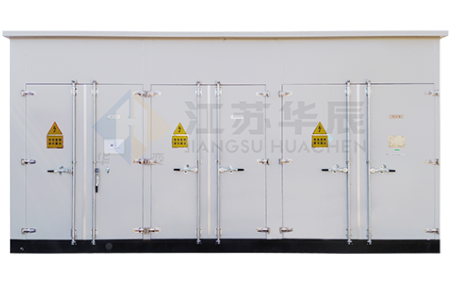

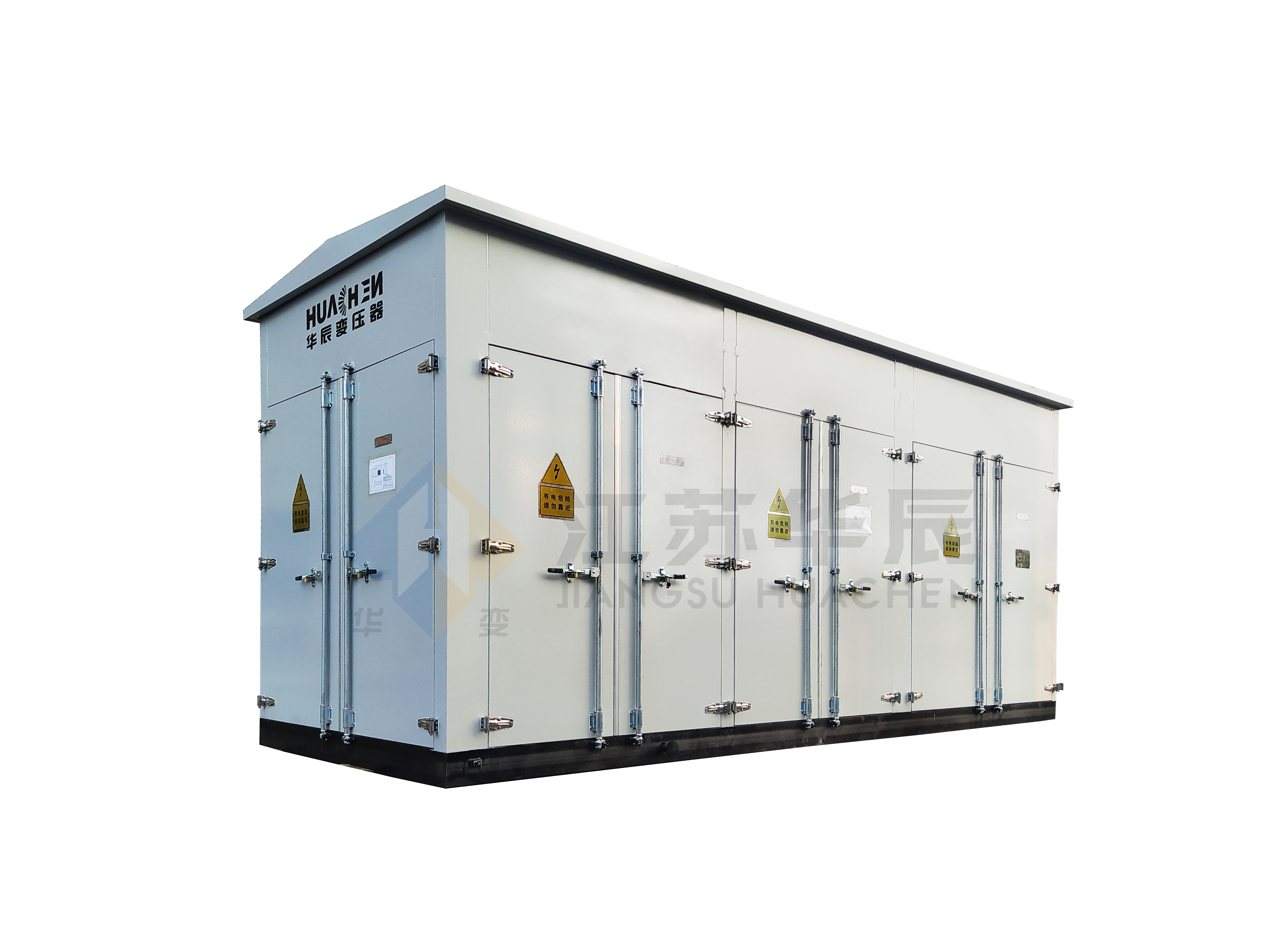

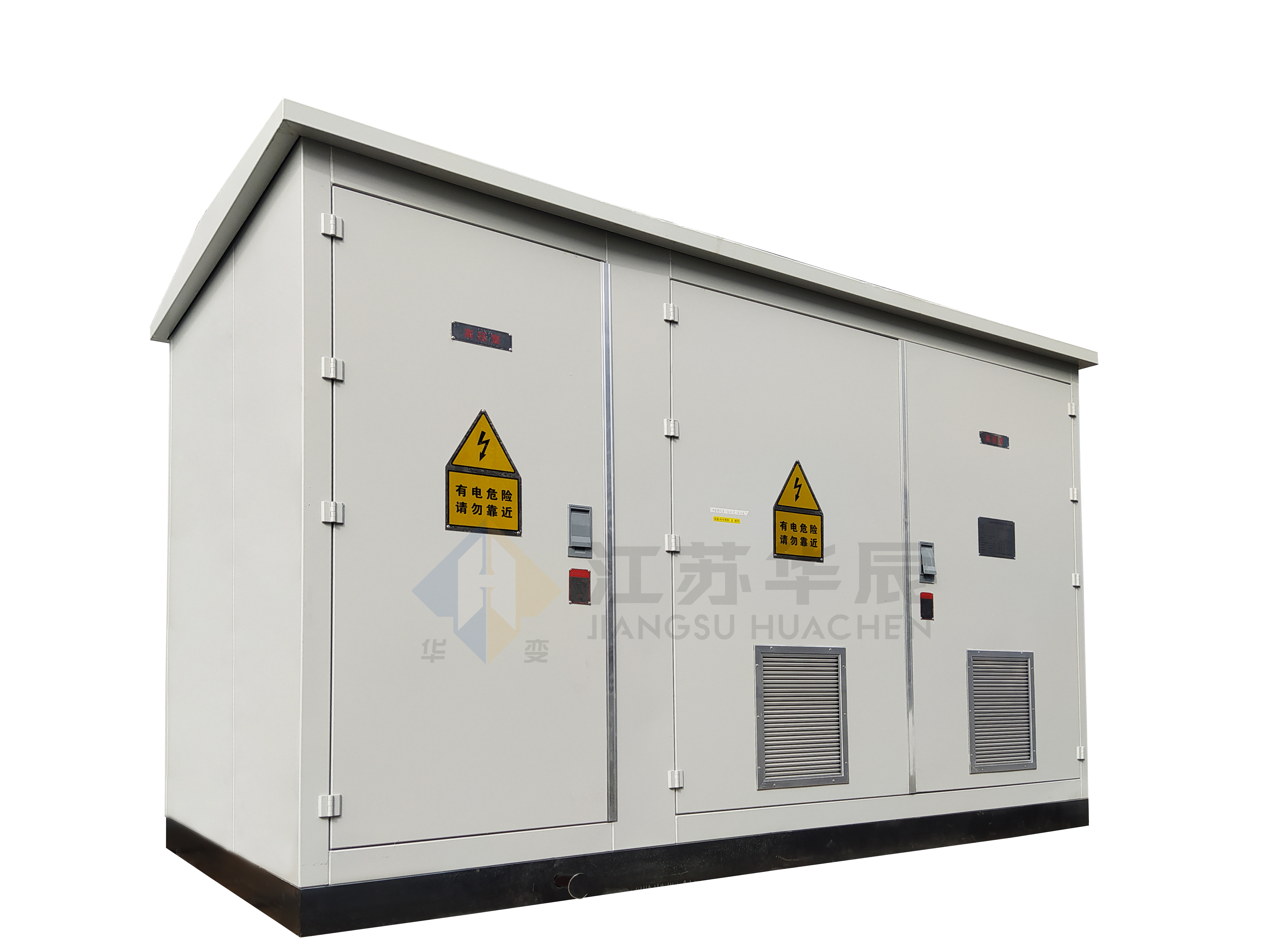

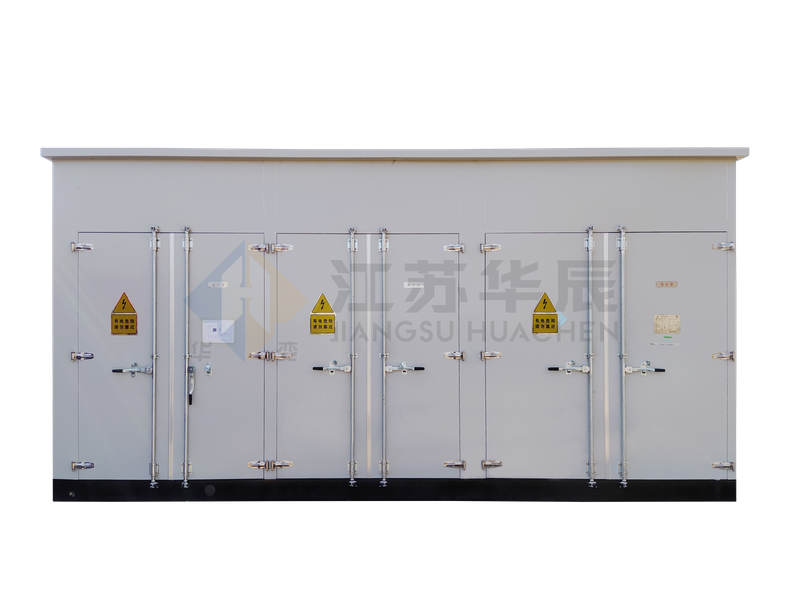

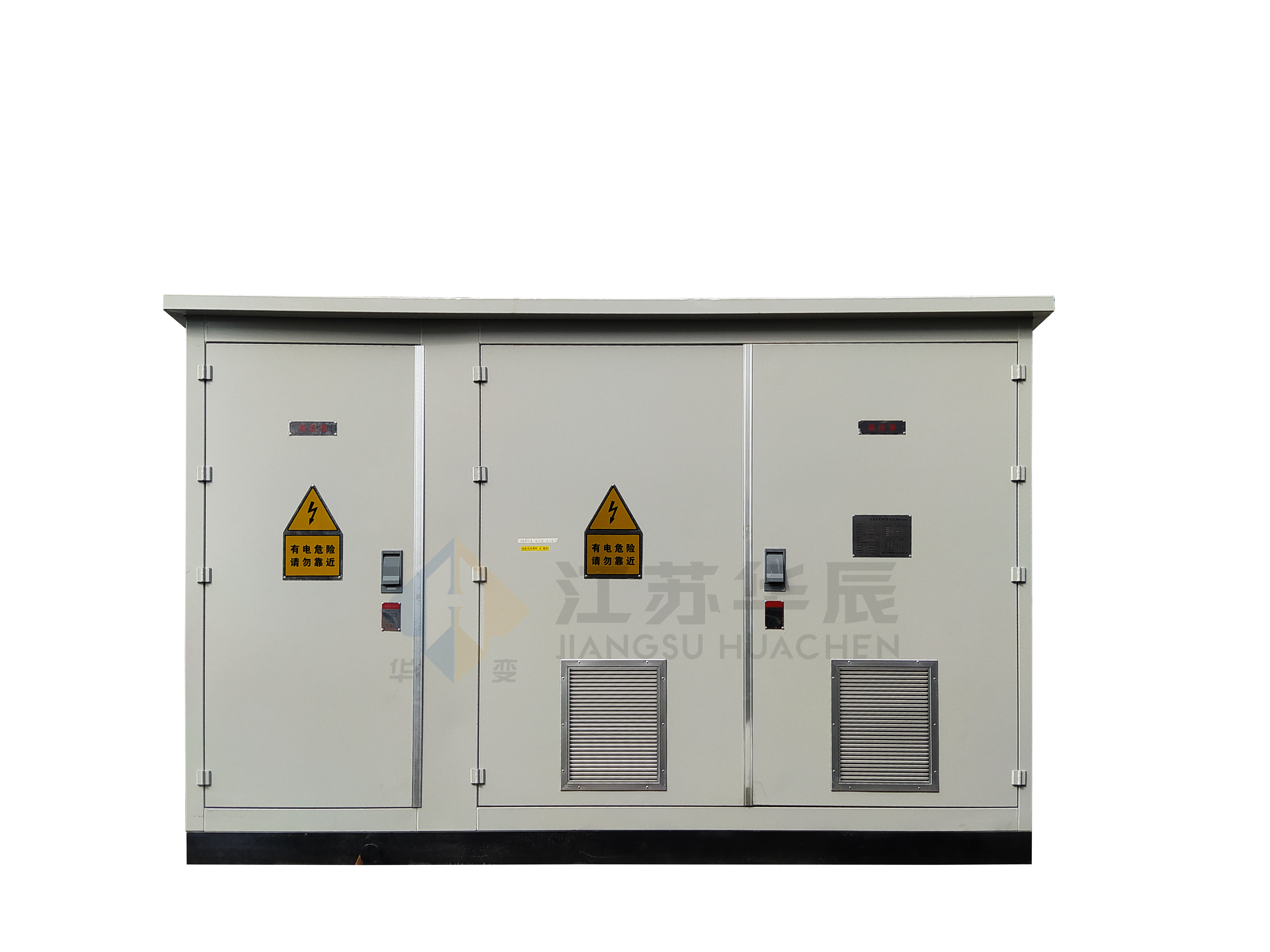

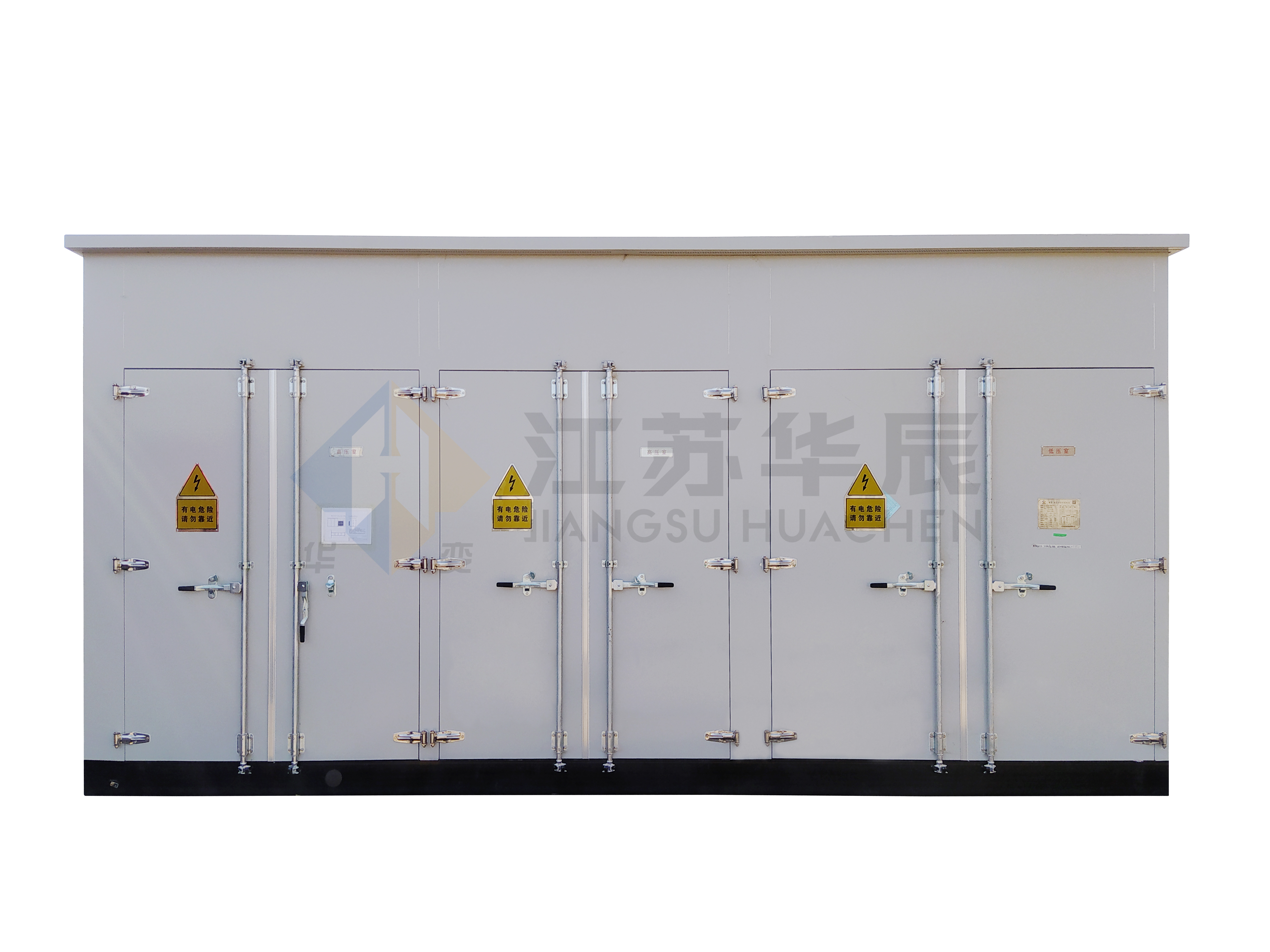

New energy prefabricated substation for wind power is a specialized high/low voltage pre-installed substation exclusively built for wind power generation systems. This all-in-one equipment integrates high-voltage switchgear, transformer body, protective fuses in the oil tank, plus low-voltage switchgear and matched auxiliary facilities into a single compact unit. As a core step-up device for wind power grid connection, it boosts the voltage from wind power grid-tied inverters or AC generators up to 10kV or 35kV, then transmits power to the grid via 10kV or 35kV lines, making it an ideal supporting solution for wind power generation systems.

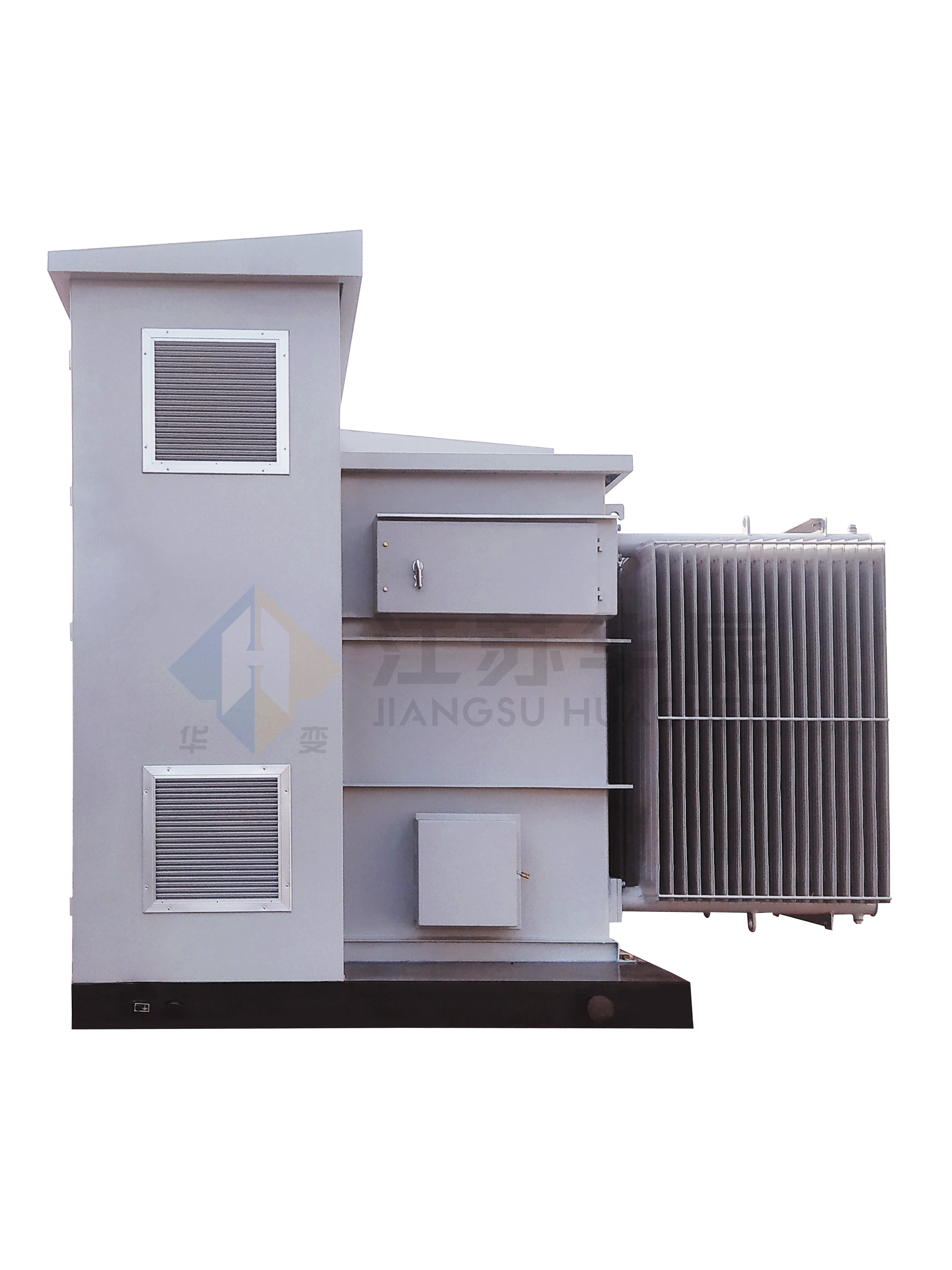

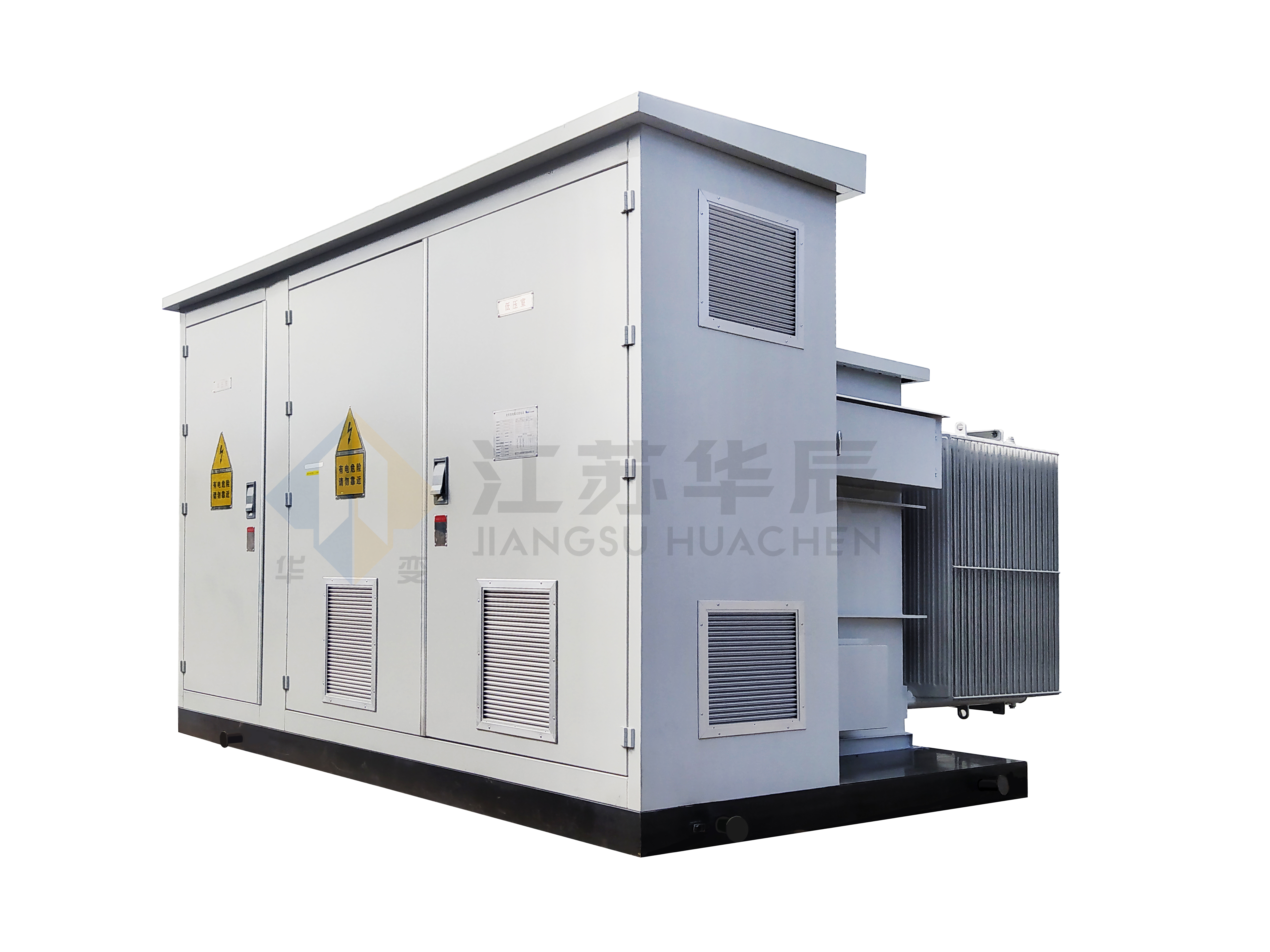

This wind power step-up prefabricated substation features an ultra-compact design with minimal footprint, paired with an external radiator for superior heat dissipation. For wind farm EPC projects, this greatly cuts civil construction costs and site planning difficulty, especially for remote wind farm sites with limited construction conditions.
The oil tank adopts a fully sealed structure, which completely isolates transformer oil from the atmosphere, greatly reducing oil oxidation and moisture intrusion. This design significantly improves system stability, reliability and safety, while the detachable plate-type radiator enables easy disassembly and simplified maintenance. Transformer oil also acts as the insulating medium for 10kV or 35kV high-voltage components, effectively reducing required safety distance and further optimizing equipment volume.
The enclosure is treated with a special shot blasting process, delivering excellent anti-corrosion, anti-UV and wind-sand erosion resistance. The low-voltage side is equipped with the latest intelligent circuit breakers and molded case air switches, with high breaking capacity and comprehensive protection performance. The transformer tank can be fitted with pressure gauges and thermometers with communication interfaces, and the load switch can be equipped with a stroke switch to realize remote monitoring, operation and maintenance, perfectly suited for remote wind farms with limited on-site management. The fully sealed design delivers a protection grade of IP54 for high and low voltage chambers, and IP68 for the transformer body.
Parameter Category | Standard Specifications |
|---|---|
Rated Voltage Level | 10kV, 35kV |
Rated Capacity Range | Customizable based on project requirements |
Protection Grade | IP54 (High/Low Voltage Chambers); IP68 (Transformer Body) |
Core Execution Standards | GB1094, GB/T6451, GB11022, GB4208, JB/T10217 |
Short-Time Withstand Current | Customizable per grid requirements |
Standard Number | Standard Title |
|---|---|
JB/T 10217 | Combined Transformers |
GB 1094 | Power Transformers |
GB/T 6451 | Technical Parameters and Requirements for Oil-Immersed Power Transformers |
GB 11022 | General Technical Conditions for High-Voltage Switchgear |
GB/T 16927 | High Voltage Test Techniques |
GB 311.1 | Insulation Coordination for High-Voltage Power Transmission Equipment |
GB 50150 | Handover Test Standard for Electrical Equipment Installation |
GB/T 5273 | Terminals for Transformers, High-Voltage Apparatus and Bushings |
GB 4208 | Degrees of Protection Provided by Enclosures (IP Code) |
GB/T 191 | Packaging Pictorial Markings for Handling of Goods |
This 10kV 35kV wind power box substation is ideal for onshore wind farms of various scales, distributed wind power generation projects, wind power projects in high-altitude areas, wind-sand prone and high-pollution wind power projects, and grid-connected wind power projects in remote areas.
Ambient air temperature: -40℃-+45℃
Altitude: ≤4500m (plateau-specific design for altitude over 2000m)
Outdoor wind speed: ≤35m/s
Relative humidity: Daily average ≤95%, monthly average ≤90%
Pollution grade: Class II, III, IV
Seismic intensity: 8 degrees
We provide full customization services, including plateau-type design for high-altitude areas, enhanced anti-corrosion solutions for high-pollution environments, customized remote monitoring systems, and voltage/capacity configuration tailored to specific project parameters.
Jiangsu Huachen is a professional manufacturer of new energy power transmission and distribution equipment, with strict compliance with national and industry standards for all products. We offer end-to-end technical support for wind power projects, from pre-sales scheme design to after-sales operation and maintenance guidance, with fast quote response and rich experience in global renewable energy project supporting.
We provide standard 10kV and 35kV options, and support customized voltage solutions based on your project’s specific grid connection requirements.
The equipment can adapt to altitudes up to 4500m, with a dedicated plateau-type design for altitudes exceeding 2000m to ensure stable operation.
For your wind power project’s specific prefabricated substation requirements, contact our technical sales team today. Call us at +86-15852118166 or send your project parameters to baojia@hcbyq.com, and we will provide a customized, detailed quote and technical solution within 24 hours.
