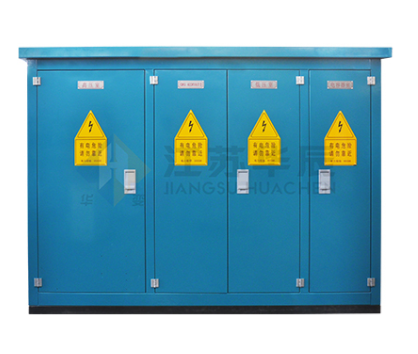

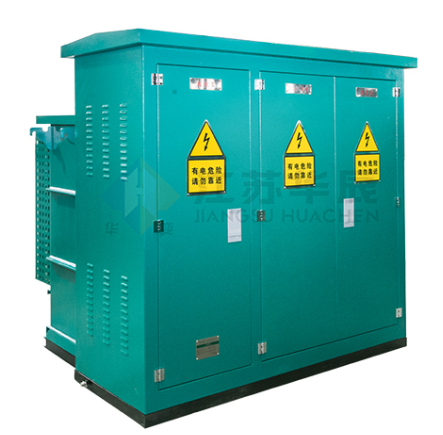

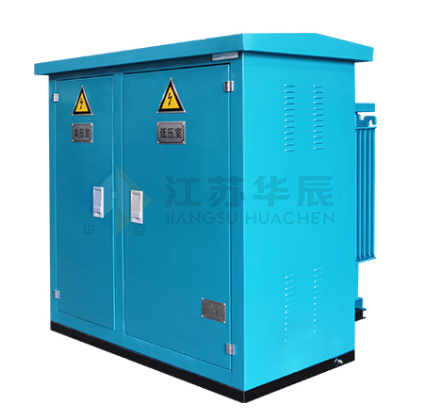

Traditional power substations often present significant challenges for industrial clients and commercial project managers: lengthy construction cycles, excessive land occupation, high on-site labor costs, and complex integration of separate components. The ZGS combined American pad mounted transformer is a fully prefabricated outdoor power distribution solution designed specifically to address these pain points. This innovative unit integrates the transformer core, high-voltage load switch, and fuse assembly into a single sealed oil tank, creating a complete, ready-to-install substation system.
Operating at 50Hz AC frequency and 6-10kV voltage levels, the ZGS series offers rated capacities ranging from 30kVA to 1600kVA, supporting ring network, dual power, and terminal power supply configurations. It provides a one-stop solution for electric energy metering, reactive power compensation, and low-voltage branching requirements, with flexible installation options for both outdoor and indoor environments. This pre-engineered approach eliminates the need for extensive on-site construction, allowing projects to achieve rapid power activation.
The factory-integrated configuration eliminates the need for on-site assembly of individual components. This reduces installation workload by a significant margin, minimizes construction risks, and lowers overall labor expenses for contractors. All critical systems are tested and calibrated at the manufacturing facility, ensuring consistent performance from the moment of installation.
Compared to conventional brick-and-mortar substations, the ZGS unit occupies up to 70% less land area. This compact design is particularly valuable in urban centers, dense residential developments, and industrial parks where land resources are limited and costly. The small footprint allows for flexible placement in locations that would be impractical for traditional substations.
As a fully preassembled system, the ZGS transformer requires only basic site preparation and electrical connections to become operational. This dramatically shortens project timelines, enabling commercial and industrial facilities to begin operations earlier and generate revenue sooner. The simplified installation process also reduces disruption to surrounding areas during construction.
The sealed oil tank design prevents oil leakage and environmental contamination, complying with the latest global environmental protection standards. This eco-friendly construction helps clients meet regulatory requirements and avoid potential fines, while also reducing long-term environmental maintenance costs.
Engineered for outdoor operation, the ZGS transformer features robust construction that withstands harsh weather conditions including extreme temperatures, rain, and dust. Its enclosed design also provides protection against vandalism and unauthorized access, ensuring uninterrupted power supply for critical operations.
Parameter | Specification |
|---|---|
Rated Frequency | 50Hz |
Rated Voltage | 6-10kV |
Rated Capacity | 30-1600kVA |
Power Supply Modes | Ring network, dual power, terminal |
Installation Locations | Outdoor / Indoor |
Integrated Components | Transformer body, high voltage load switch, fuse |
Standard Functions | Electric energy metering, reactive power compensation, low voltage branching |
 |  |
Parameter Category | Parameter Name | Unit | Specific Data |
|---|---|---|---|
Basic Information | Rated Voltage | kV | 12/0.4 |
Rated Frequency | Hz | 50 | |
Transformer Capacity | kVA | 50 ~ 1000 | |
Tap Range | / | ±2 × 2.5% | |
Connection Group | / | Dyn11 | |
Short-Time Overload Capacity | / | 1.5 times; 2 h | |
Protection Equipment | Plug-in Fuse | A | 15 ~ 100 |
Backup Protection Fuse | A | 50 ~ 200 | |
Frame circuit breaker | A | 200 ~ 2000 | |
Molded Case Circuit Breaker (MCCB) | A | 100 ~ 630 | |
Isolation Equipment | Isolating Switch | A | 630 ~ 1500 |
Compensation Equipment | Capacitor Bank | kvar | 60 ~ 750 |
The ZGS transformer provides stable and efficient power distribution for manufacturing plants, warehouses, and office buildings within industrial complexes. Its scalable capacity allows for easy expansion as industrial operations grow, while the compact design preserves valuable production and storage space.
For residential developers, the low-profile design and quiet operation of the ZGS unit make it ideal for installation in apartment complexes and housing estates. It does not interfere with residents' daily activities or detract from the aesthetic appeal of the community, while ensuring reliable power for all households.
Designed to handle high electrical loads, the ZGS transformer supports the demanding power requirements of shopping malls, restaurants, and entertainment venues. Its reliable performance prevents costly power outages that could disrupt business operations and lead to lost revenue.
The ZGS unit serves as an efficient centralized power distribution solution for urban roadways, highways, and bridges. Its outdoor-rated construction ensures continuous operation in all weather conditions, providing consistent illumination for traffic safety.
The fast installation and portability of the ZGS transformer make it perfect for temporary power needs at construction sites. It can be quickly deployed and relocated as projects progress, reducing the cost of temporary power infrastructure and improving job site efficiency.
We understand that every power distribution project has unique requirements. The ZGS series offers extensive customization options to meet specific client needs:
Adjustable rated capacities and voltage levels to match project specifications
Selection of metering instruments and protection devices from leading brands
Optional reactive power compensation systems to improve power factor and reduce energy costs
Customizable low-voltage branching configurations with specified current ratings
Enhanced protection ratings for corrosive, explosive, or other harsh environments
All ZGS combined transformers undergo rigorous testing and inspection at every stage of production, ensuring compliance with national and international industry standards. We back our products with a comprehensive 12-month warranty covering manufacturing defects.
Our dedicated technical team provides professional on-site installation guidance and commissioning services to ensure proper system operation. We also offer 7×24 technical support, with rapid response times to address any issues that may arise during the product lifecycle.
The ZGS unit typically offers 30-50% lower total project costs compared to conventional substations, due to reduced construction expenses, shorter installation times, and lower maintenance requirements.
Yes, the ZGS series is designed to withstand a wide range of environmental conditions, including temperatures from -30°C to +40°C, heavy rain, and strong winds.
A standard ZGS unit can be installed and commissioned in 1-2 days, compared to several weeks or months for a traditional substation.
If you are planning a power distribution project and are looking for a reliable, cost-effective solution, contact our experienced sales team today. We provide detailed, customized quotes and technical proposals tailored to your specific requirements. We also offer free on-site surveys and power system design services to help you select the optimal transformer configuration.
For bulk orders, we provide competitive pricing and flexible delivery schedules to meet your project timelines. Simply send us your project details, and our team will respond within 24 hours with a comprehensive solution.
