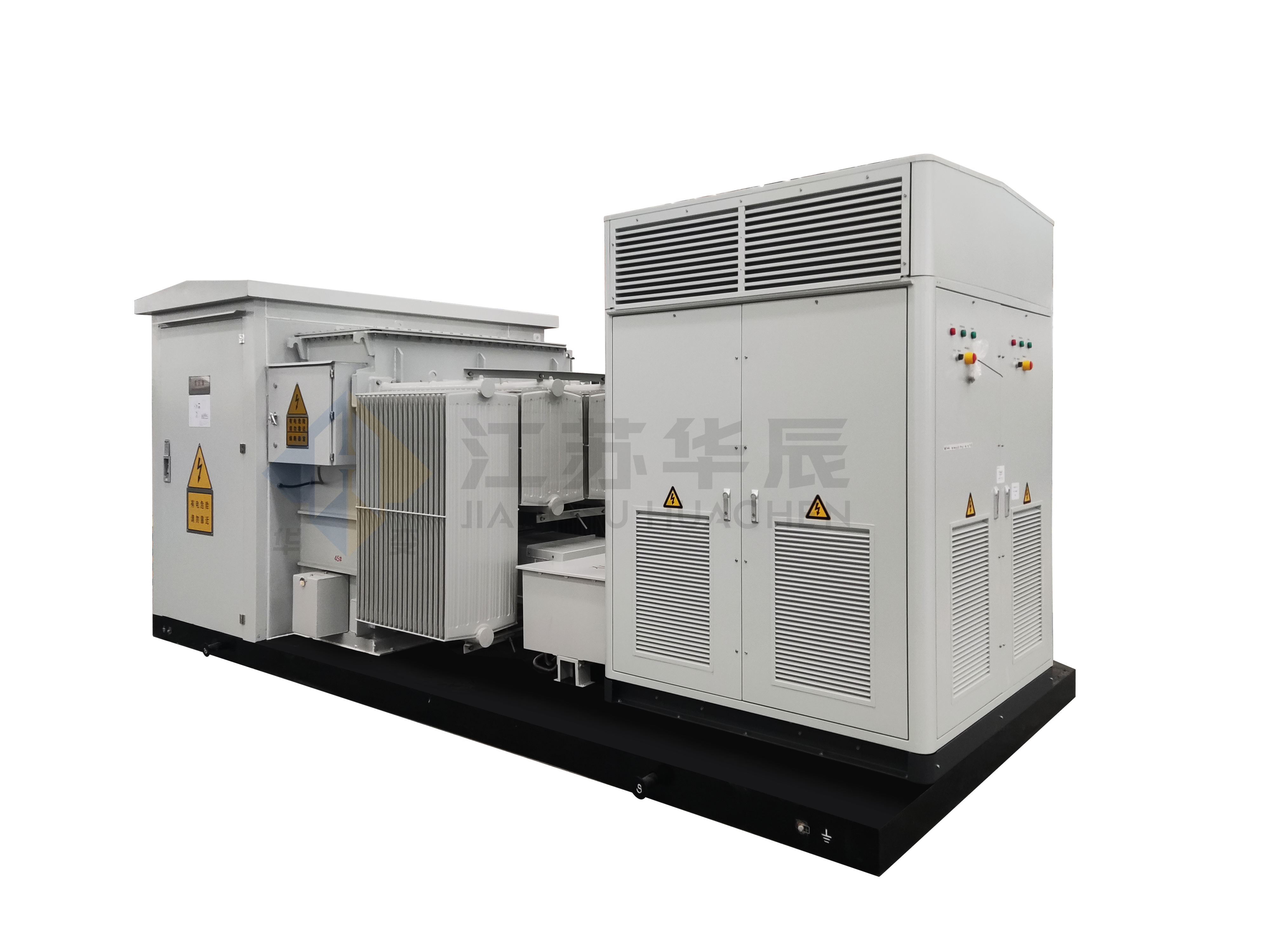

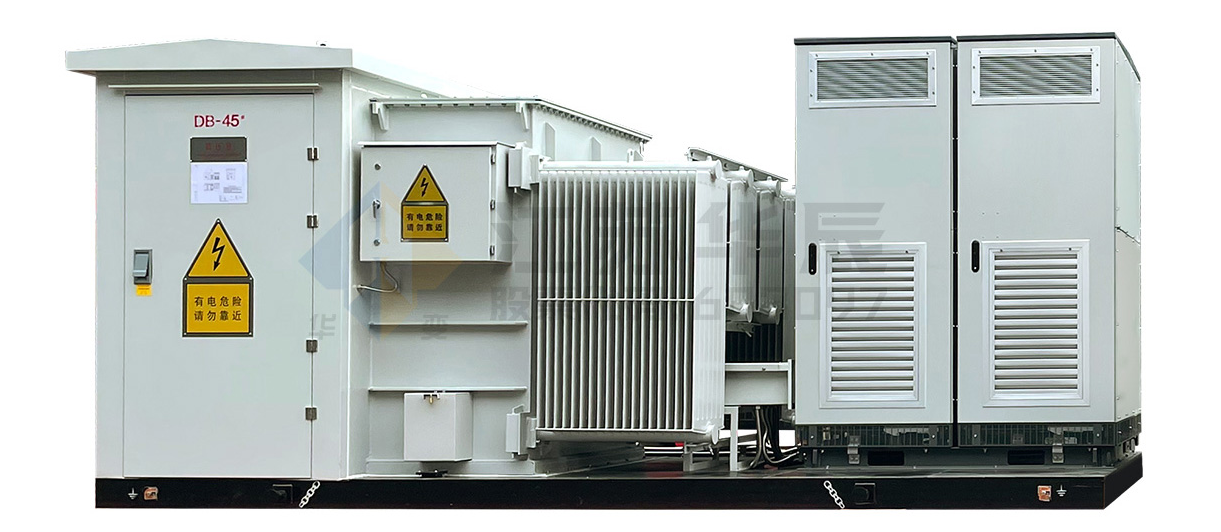

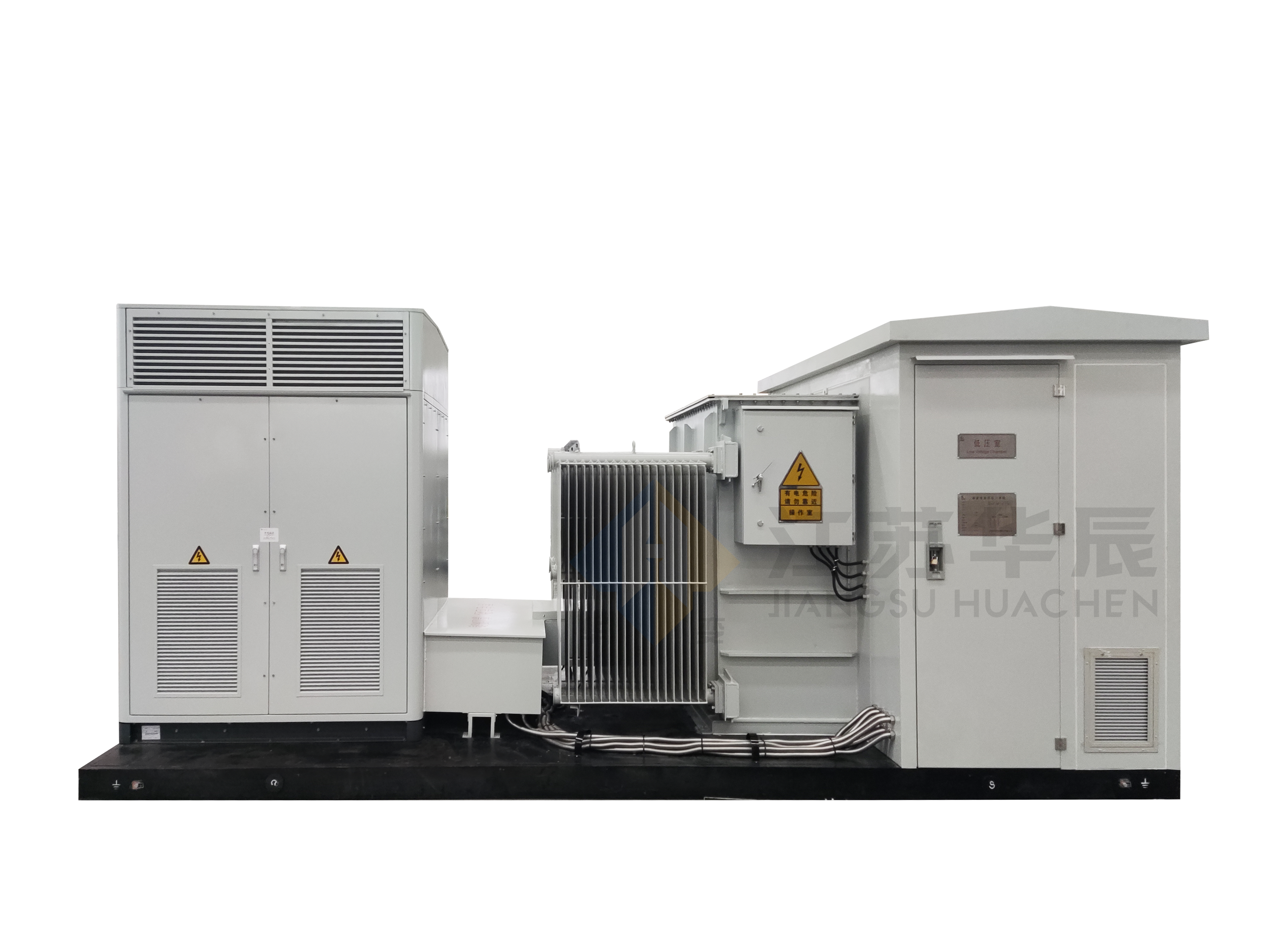

The American-style energy storage converter step-up integrated machine is a highly integrated solution that converts solar, wind and other renewable green energy into electrical energy for storage in battery systems. When required, it inverts the stored energy through the integrated PCS (Power Conversion System) and delivers it to the three-phase AC step-up transformer, effectively solving the instability and periodicity issues of wind and photovoltaic power generation.

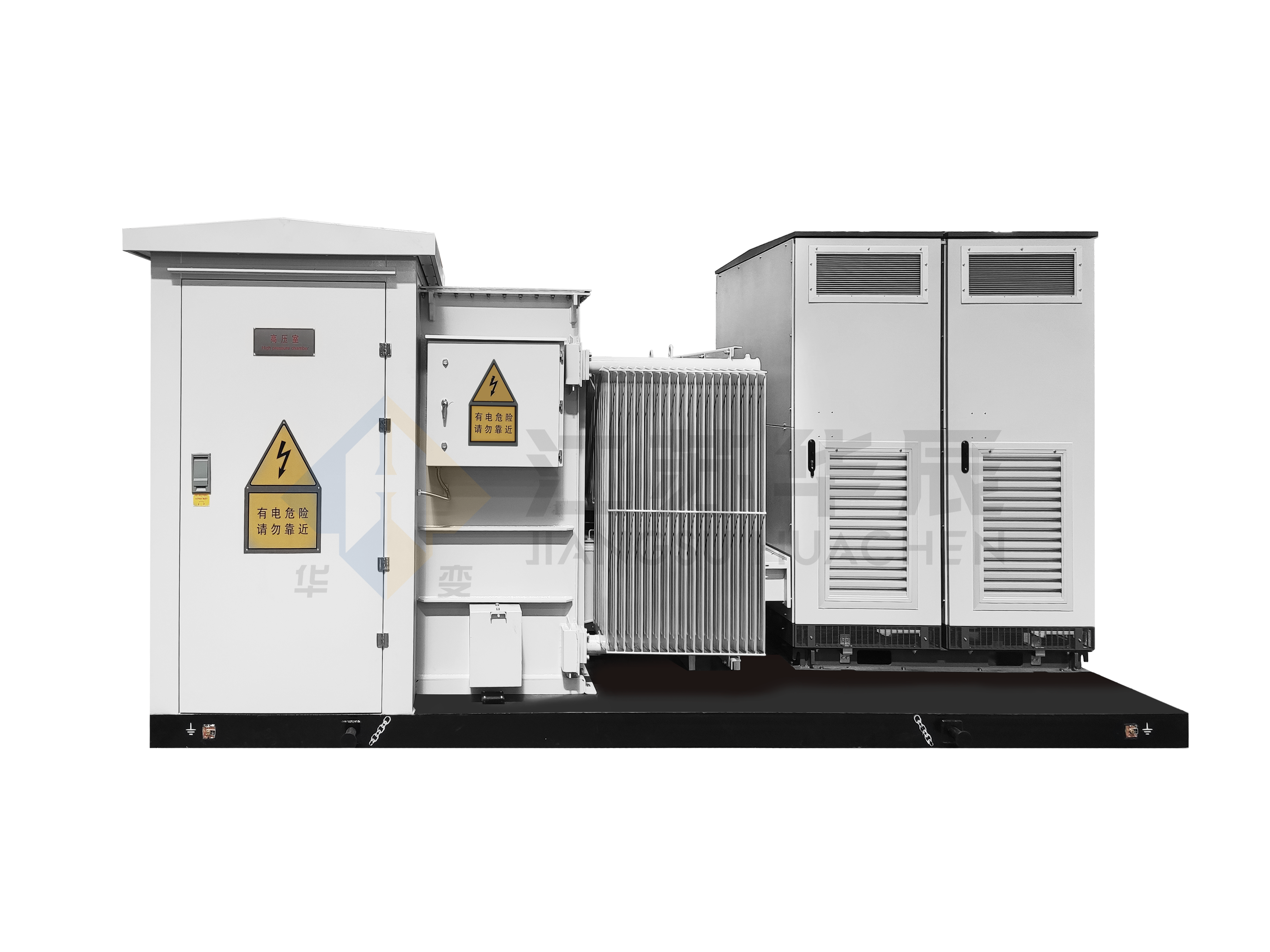

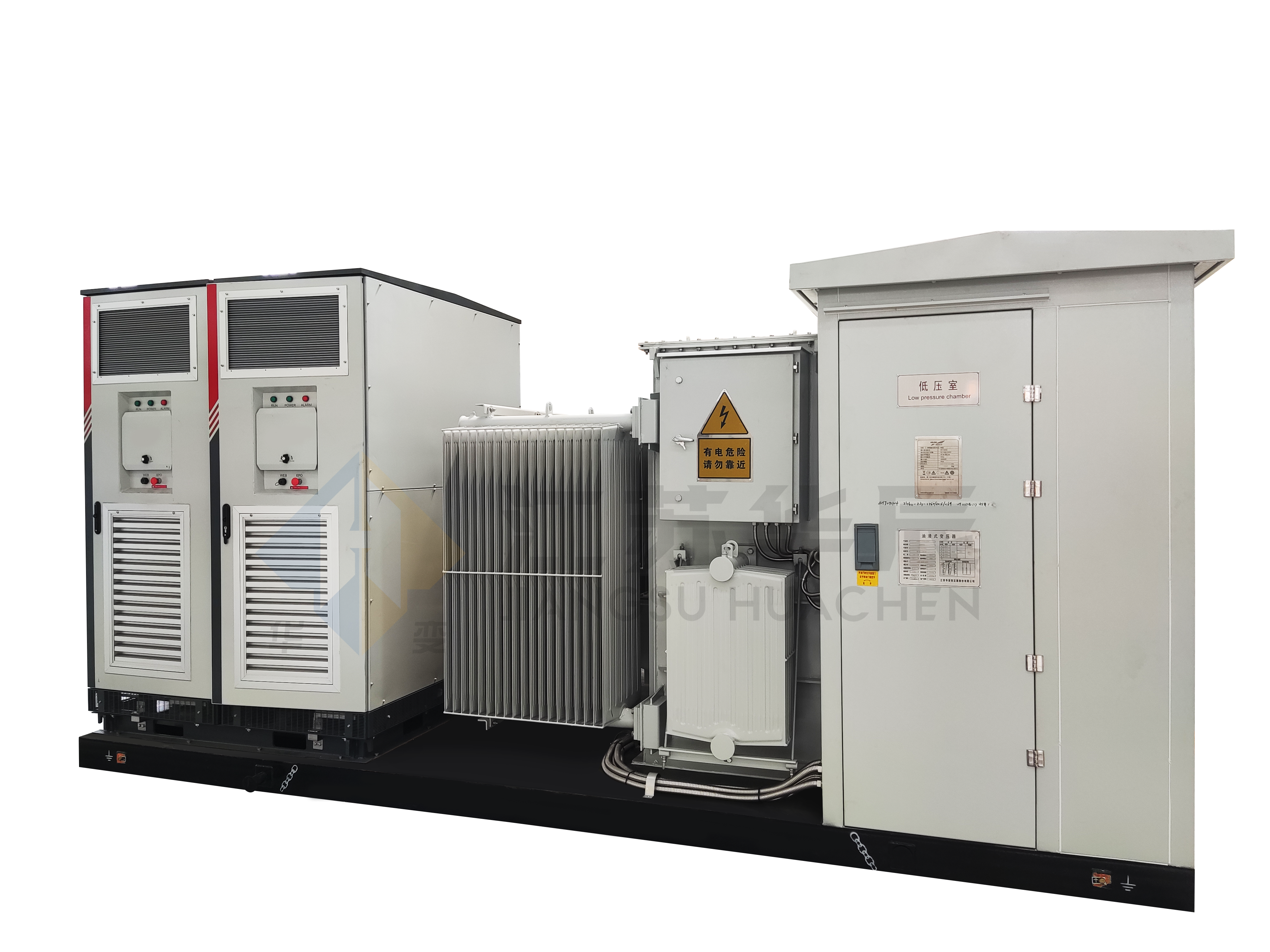

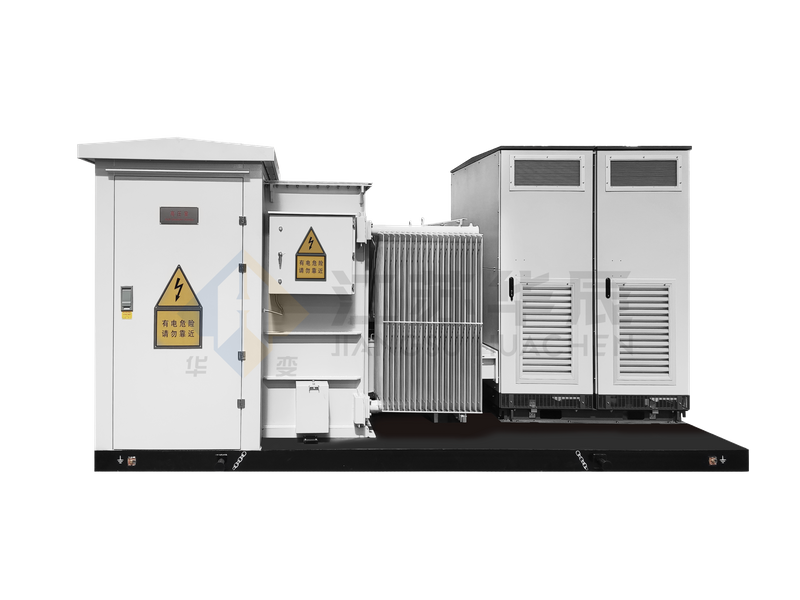

This all-in-one unit integrates the energy storage converter (PCS), busbar bridge, low-voltage compartment (for communication and power distribution), oil-immersed transformer (equipped with oil-immersed load switch and fuse), high-voltage cable compartment and a robust enclosure into a single compact package. As a turnkey pre-assembled energy storage station, it streamlines project implementation and reduces on-site complexity for commercial clients and utility operators.
Small footprint and compact structure, significantly reducing land acquisition costs for energy storage projects
All components are pre-integrated in a single enclosure, eliminating the need for separate PCS and transformer installation
Fully manufactured, assembled, wired and tested in our factory
Delivered as a complete prefabricated unit to project sites, enabling simple installation, reduced civil engineering costs and shortened construction cycles
Fast power supply and easy maintenance, requiring no on-site dedicated personnel for daily operation
Equipped with oil-immersed transformer energy storage system, offering high cost-effectiveness, excellent heat dissipation and low noise levels
Enclosure treated with special anti-corrosion and anti-UV processes, effectively resisting sand erosion and harsh outdoor environments
High-voltage side adopts oil-immersed load switch and full-range fuse protection scheme, ensuring safe and reliable operation with easy maintenance
Parameter Category | Parameter Name | Unit | Specifications |
|---|---|---|---|
Basic Information | Rated Voltage | kV | 12, 24, 40.5 |
Rated Frequency | Hz | 50/60 | |
High-Voltage Short-Circuit Performance | High-Voltage Rated Short-Time Withstand Current (4S) | kA | 20, 25, 31.5 |
High-Voltage Rated Peak Withstand Current | kA | 50, 63, 80 | |
High-Voltage Rated Short-Circuit Making Current (Peak) | kA | 50, 63, 80 | |
High-Voltage Insulation Performance | 1MIN Power Frequency Withstand Voltage | kV | 35, 55, 85 |
Lightning Impulse Withstand Voltage (Peak) | kV | 75, 125, 200 | |
Enclosure Protection | Protection Grade | - | Enclosure IP54, Oil Tank IP68 |
This integrated PCS and transformer unit is ideal for:
Utility-scale solar farm energy storage systems
Onshore and offshore wind farm energy storage projects
Microgrid and distributed energy systems
Remote area off-grid power supply systems
Peak shaving and frequency regulation for industrial and commercial power users
Ambient temperature range: -40 to +45°C
Altitude: ≤4500m (customized solutions available for altitudes above 2000m)
Outdoor wind speed: ≤35m/s
Seismic intensity: Grade 8
Pollution levels: Class II, III, IV
We offer tailored solutions to meet specific project requirements, including high-altitude adaptations, enhanced corrosion protection for coastal areas, and customized power ratings to match different battery system capacities.
As a leading manufacturer of outdoor energy storage substations, Huachen provides end-to-end solutions from design and manufacturing to after-sales support. Our pre-assembled integrated machines ensure consistent quality, faster project delivery and lower total cost of ownership. We work closely with project owners, EPC contractors and utility companies to deliver reliable energy storage solutions that maximize renewable energy utilization.
Thanks to factory pre-assembly and testing, on-site installation typically takes only a few days, significantly faster than traditional separate PCS and transformer installations.
Yes, we provide customized solutions for altitudes up to 4500m, with appropriate derating and insulation enhancements.
For detailed pricing and customized solutions tailored to your specific energy storage project, contact our team today.
