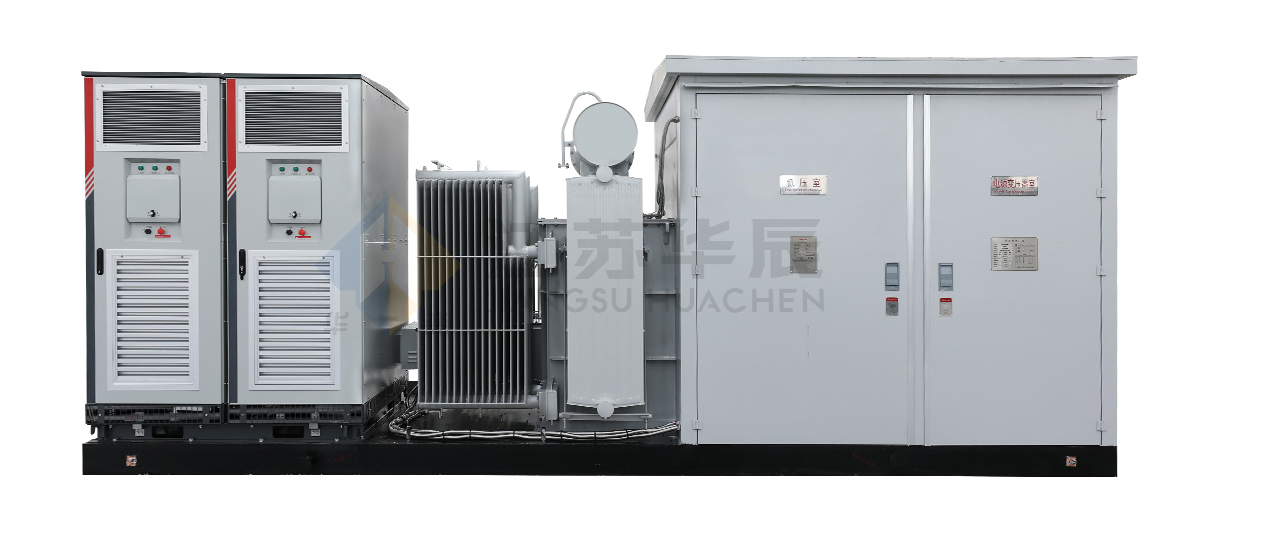

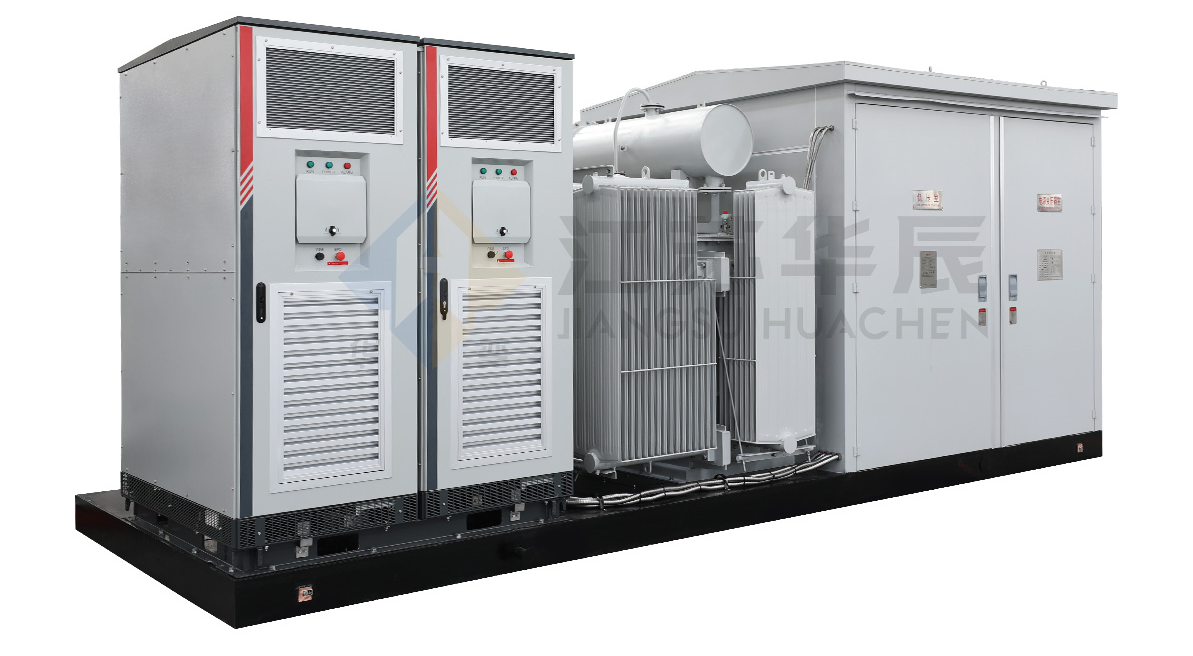

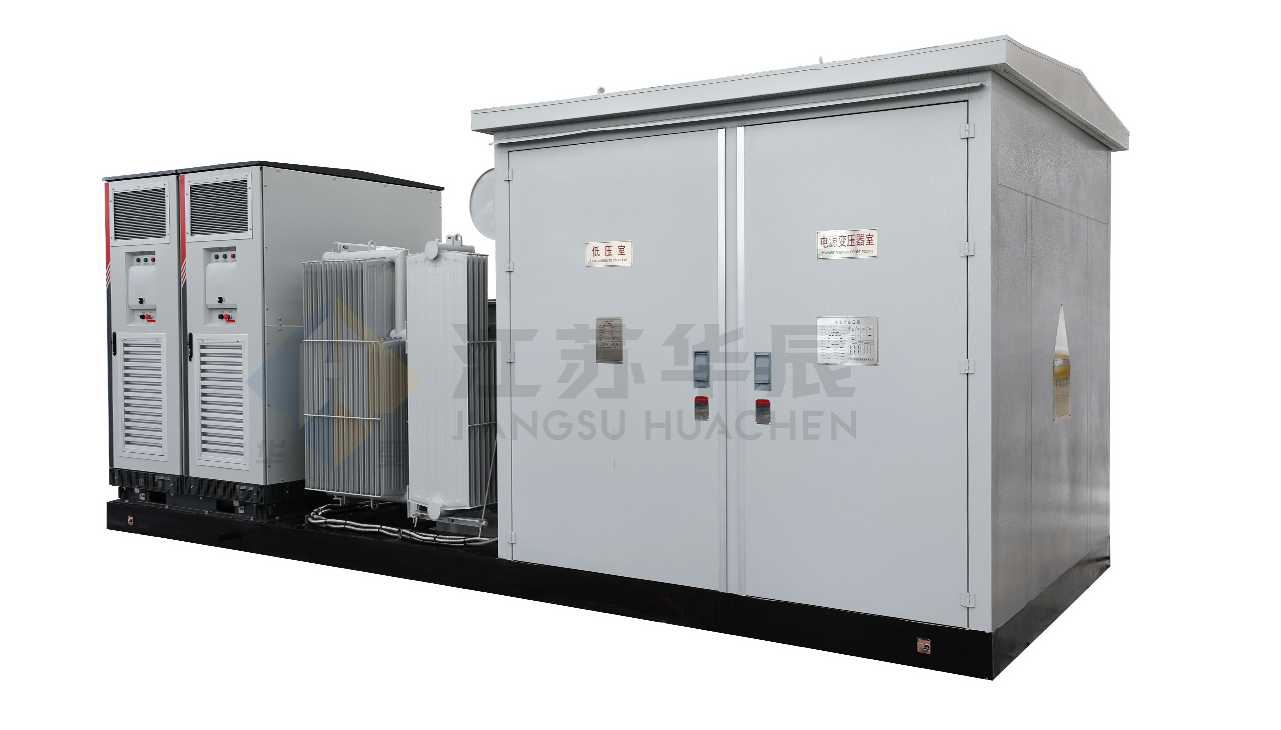

Our Huachen Type-H integrated energy storage PCS and step-up transformer system is a factory-built, pre-commissioned all-in-one solution, designed to store renewable energy from solar and wind sources in battery systems, then invert and deliver stable power to a 3-phase AC step-up transformer on demand. This unit directly solves the core intermittency and volatility challenges of wind and solar generation, ensuring reliable grid integration and flexible power dispatch. The fully integrated system consists of a energy storage power conversion system (PCS), busbar bridge, low-voltage compartment (for communication and power distribution), oil-immersed transformer, high-voltage compartment (with vacuum load switch/circuit breaker), and a heavy-duty enclosure. All assembly, wiring, and testing are completed in our factory, delivered as a ready-to-install package to your project site.
With a compact, space-optimized design, our integrated energy storage inverter and transformer system delivers industry-leading integration density, drastically cutting project land occupation. It eliminates the need for separate equipment rooms and complex on-site assembly, reducing civil construction costs and accelerating project timelines significantly.
The system adopts a premium oil-immersed transformer, offering superior heat dissipation, low noise operation, and excellent cost efficiency. This design ensures long-term stable operation under heavy load, lowering long-term operation and maintenance (O&M) expenses.
The enclosure is treated with a special anti-corrosion and anti-UV process, with excellent resistance to sun exposure, sand and dust erosion. It maintains consistent performance in harsh outdoor environments without additional protective facilities.
The high-voltage side is equipped with a vacuum load switch or circuit breaker, supporting remote control and full-scope system protection. The unit supports unattended operation, further reducing O&M labor costs for your project.
Parameter Category | Parameter Name | Unit | Core Data |
|---|---|---|---|
Basic Electrical Parameters | Rated Voltage | kV | 12, 24, 40.5 |
Rated Frequency | Hz | 50/60 | |
High-Voltage Short-Circuit Performance | High-Voltage Circuit Breaker Rated Current | A | 630, 1250 |
High-Voltage Switchgear Rated Current | A | 630, 1250 | |
High-Voltage Rated Short-Time Withstand Current (4×4s) | kA | 20, 25, 31.5 | |
High-Voltage Rated Peak Withstand Current | kA | 50, 63, 80 | |
High-Voltage Rated Short-Circuit Breaking Current | kA | 20, 25, 31.5 | |
High-Voltage Insulation Performance | 1MIN Power Frequency Withstand Voltage | kV | 35, 55, 85 |
Lightning Impulse Withstand Voltage (Peak) | kV | 75, 125, 200 | |
Enclosure Protection | Protection Grade | - | Enclosure IP54, Oil Tank IP68 |
This pre-assembled energy storage PCS transformer integrated system is ideal for:
Utility-scale wind and solar farm energy storage and grid stabilization projects
Commercial and industrial (C&I) behind-the-meter energy storage systems
Microgrid and off-grid power supply projects in remote areas
Grid peak shaving, frequency regulation and demand response projects
Renewable energy hybrid power generation systems
Ambient operating temperature: -40-+45℃
Altitude: ≤4500m (customized for altitudes above 2000m)
Maximum outdoor wind speed: ≤35m/s
Pollution Grade: II, III, IV
Seismic Intensity: Grade 8
We offer full customization to match your project requirements, including tailored voltage levels, switchgear configurations, high-altitude adaptations, and enclosure protection upgrades for extreme environments.
As a professional manufacturer of power transmission and distribution equipment, we deliver end-to-end support for your project, from pre-sales technical consultation to after-sales on-site guidance. All systems undergo strict factory testing before delivery, ensuring plug-and-play installation, reduced project risks, and faster time to grid connection. We also provide flexible customization to meet the unique needs of every project.
Yes, we provide dedicated customization for projects at altitudes above 2000m, up to a maximum of 4500m, to ensure stable operation in high-altitude environments.
No, the system is designed for unattended operation, with remote monitoring and control capabilities, eliminating the need for full-time on-site staff.
We offer standard rated voltage options of 12kV, 24kV, and 40.5kV, with custom voltage levels available upon request.
For a tailored quote and technical solution for your renewable energy storage project, contact our team today at +86-15852118166 or email us at baojia@hcbyq.com. Our engineering experts will design a solution that perfectly matches your project requirements.
